Midea Aqua Tempo Super II Engineering Data Book
MC-SU60(M)-RN1L

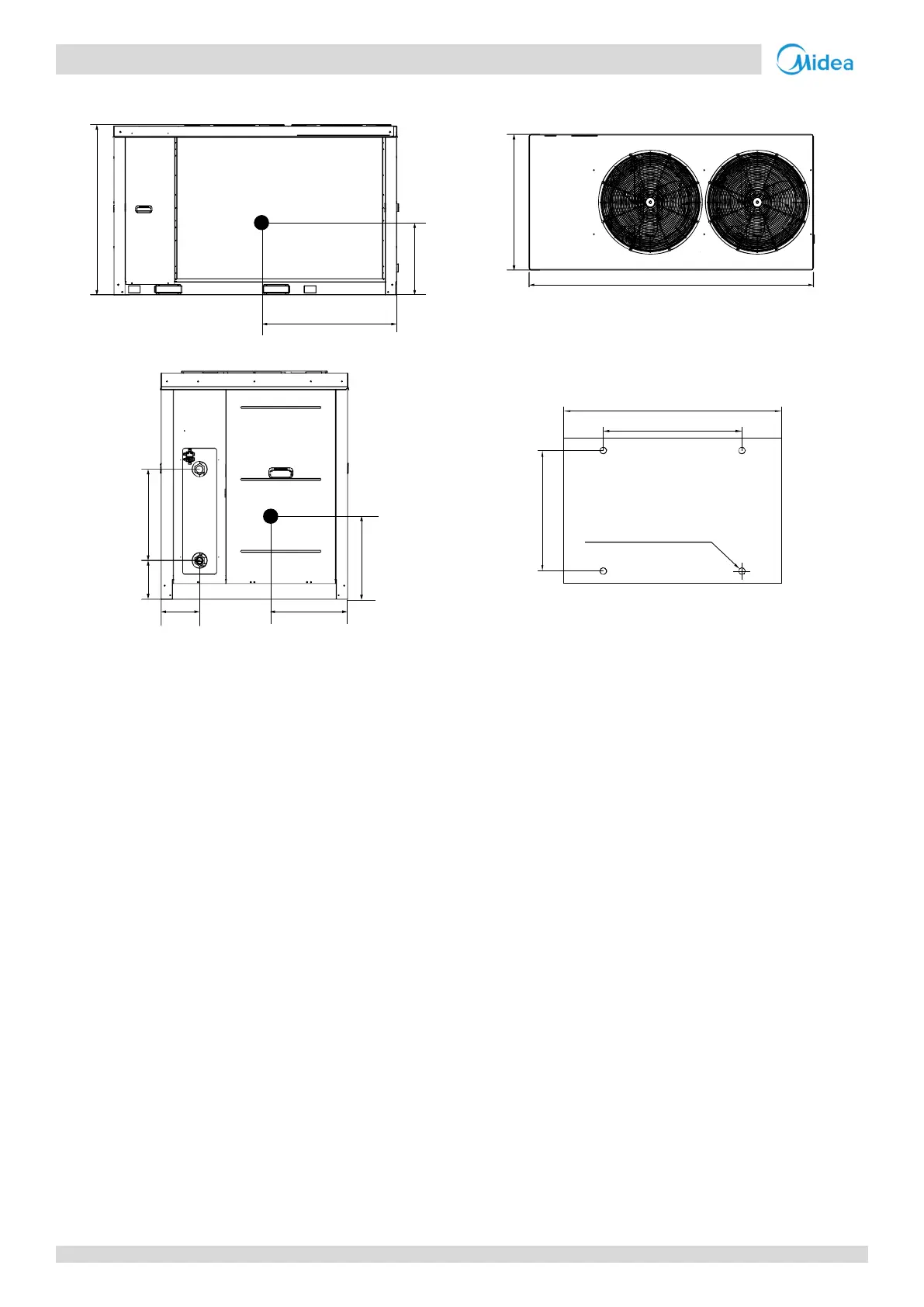

Figure 2-2.2: MC-SU60(M)-RN1L dimensions and center of gravity (unit: mm)
Front view
210
234
470
Front view
2220
1055
Top view
1325
Left view
Bottom view
1105
958
2220
Hole for anchor bolt Φ15
815
555
485
555
