Midea Aqua Tempo Super II Engineering Data Book
3 Piping Diagrams
MC-SU30-RN1L

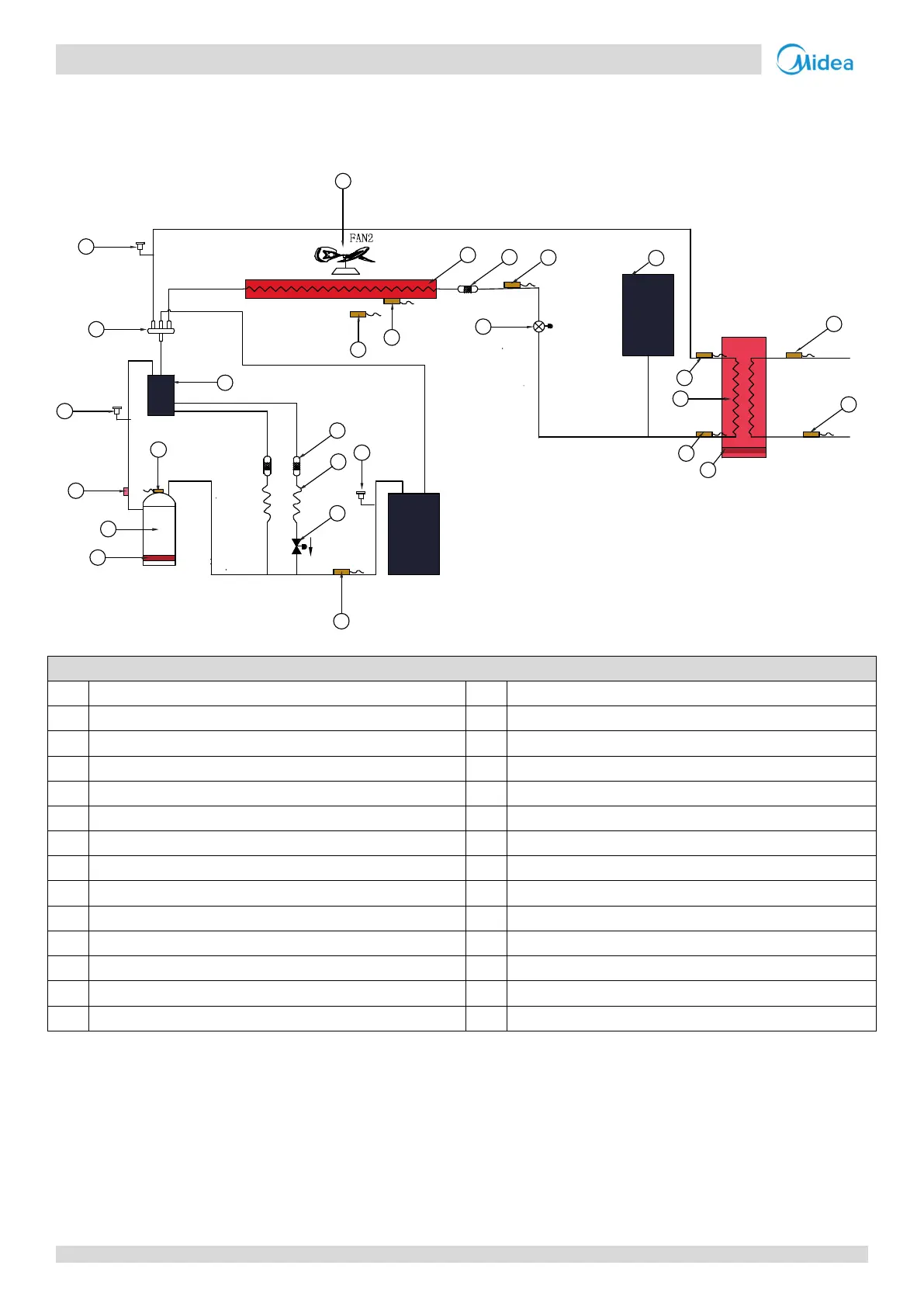

Figure 2-3.1: MC-SU30-RN1L
piping diagram
Legend
1 Compressor 2 CCH (Crankcase heater )
3 Tp (DC inverter compressor discharge temperature sensor) 4 Switch_Tp(Discharge temperature control switch )
5 PRO-H (High pressure switch) 6 Oil separator
7 4-way valve 8 FAN
9 Air side heat exchanger 10 T4 (Outdoor ambient temperature)
11 T3 (Air side heat exchanger temperature sensor) 12 Filter
13 TZ (Total cooling outlet temperature sensor) 14 EXVA (System electronic expansion valve A)
15 Accumulator 16 Taf2 (Water side heat exchanger anti-freezing temperature sensor2)
17 Taf1 (Water side heat exchanger anti-freezing temperature sensor1) 18 Water side heat exchanger
19 Water side heat exchanger anti-freezing heater 20 Two(Water outlet temperature sensor)
21 Twi (Water inlet temperature sensor) 22 System pressure sensor
23 PRO-L (Low pressure switch) 24 Th (Air suction temperature sensor)
25 SV4 (Oil return solenoid valve) 26 Capillary
27 Filter
SV4
3
7
22
24
8
9
12
27
11
10
T3
T4
Tz
14
EXVA
15
Taf1
Taf2
Twi
Two
inlet
outlet
17
16
18
19
21
20
26
25
1
2
4
5
6
13
Th
23
To Next Page
