Midea MC-SU60-RN1L Engineering Data

Aqua Tempo Super II
24 201902
Midea Aqua Tempo Super II Engineering Data Book
MC-SU60-RN1L

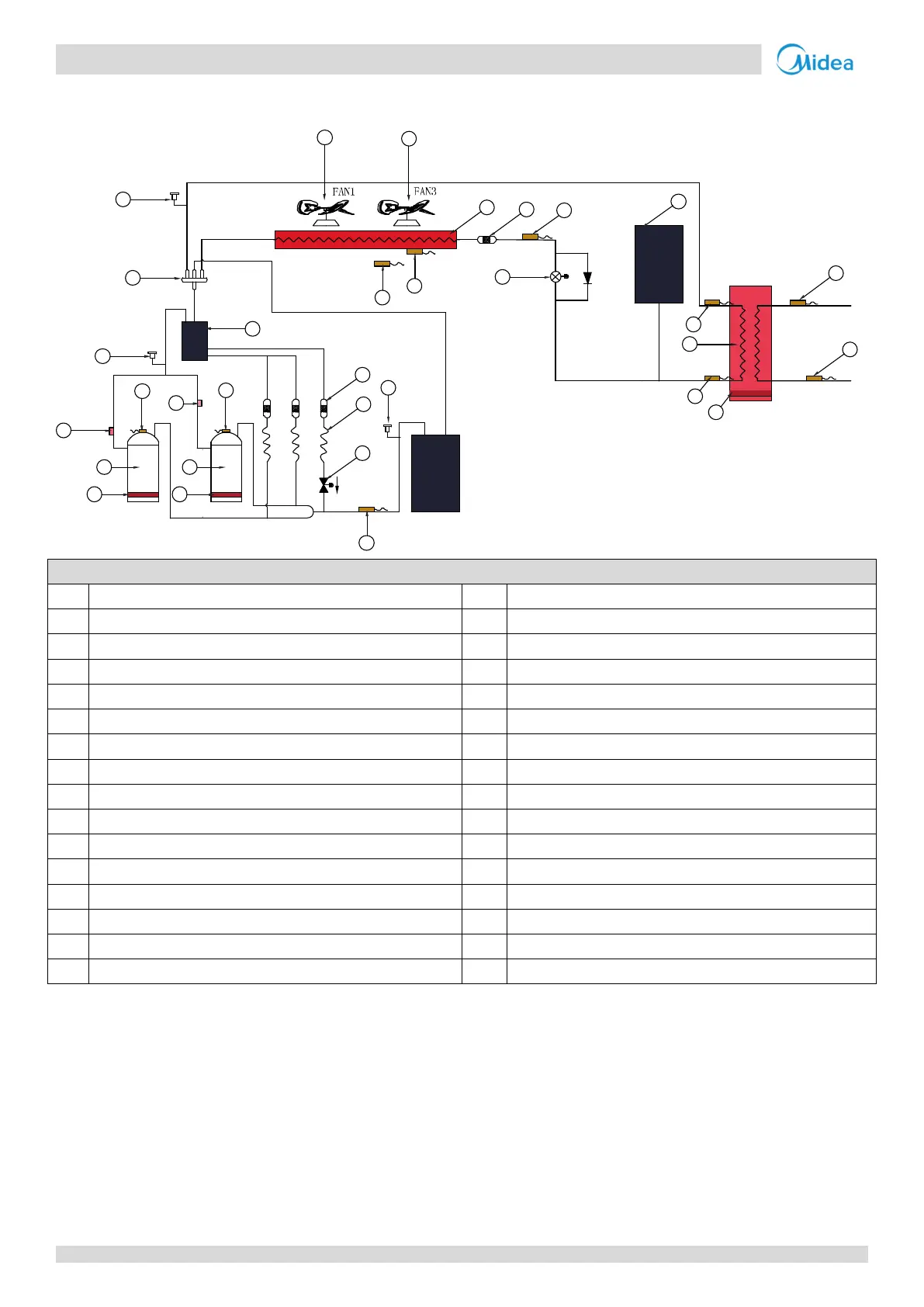

Figure 2-3.3: MC-SU60-RN1L piping diagram
Legend
1 Compressor1 2 Compressor2
3 CCHA (Crankcase heater A) 4 CCHB (Crankcase heater B)
5 Switch_TpA (Discharge temperature control switch A) 6 Switch_TpB ( Discharge temperature control switch B)
7 Tp1 (DC inverter compressor 1 discharge temperature sensor) 8 Tp2 (DC inverter compressor 2 discharge temperature sensor)
9 PRO-H (High pressure switch) 10 Oil separator
11 4-way valve 12 FAN1
13 FAN2 14 Air side heat exchanger
15 Filter 16 TZ (Total cooling outlet temperature sensor)
17 T3 (Air side heat exchanger temperature sensor) 18 T4 (Outdoor ambient temperature)
19 EXVA (System electronic expansion valve 1) 20 Accumulator
21 Taf2 (Water side heat exchanger anti-freezing temperature sensor2) 22 Water side heat exchanger
23 Taf1 (Water side heat exchanger anti-freezing temperature sensor1) 24 Antifreeze heater of plate heat exchanger
25 Two (Water outlet temperature sensor) 26 Twi (Water inlet temperature sensor)
27 System pressure sensor 28 PRO-L (Low pressure switch)
29 Th (Air suction temperature sensor) 30 SV4 (Oil return solenoid valve)
31 Capillary 32 Filter
28
5
SV4
7
8
6
9
11
27
12
13
14
15
32
17
18
T3
T4
Tz
19
EXVA
16
Taf1
Taf2
Twi
Two
inlet
outlet
23
21
22
24
26
25
31
30
1
3
2
4
20
29
10
Heat3
Th

Midea MC-SU60-RN1L Specifications

General

Brand	Midea
Model	MC-SU60-RN1L
Category	Chiller
Language	English
