Midea MC-SU60-RN1L - Page 38

Aqua Tempo Super II
201902 37
Part 2 - Engineering Data

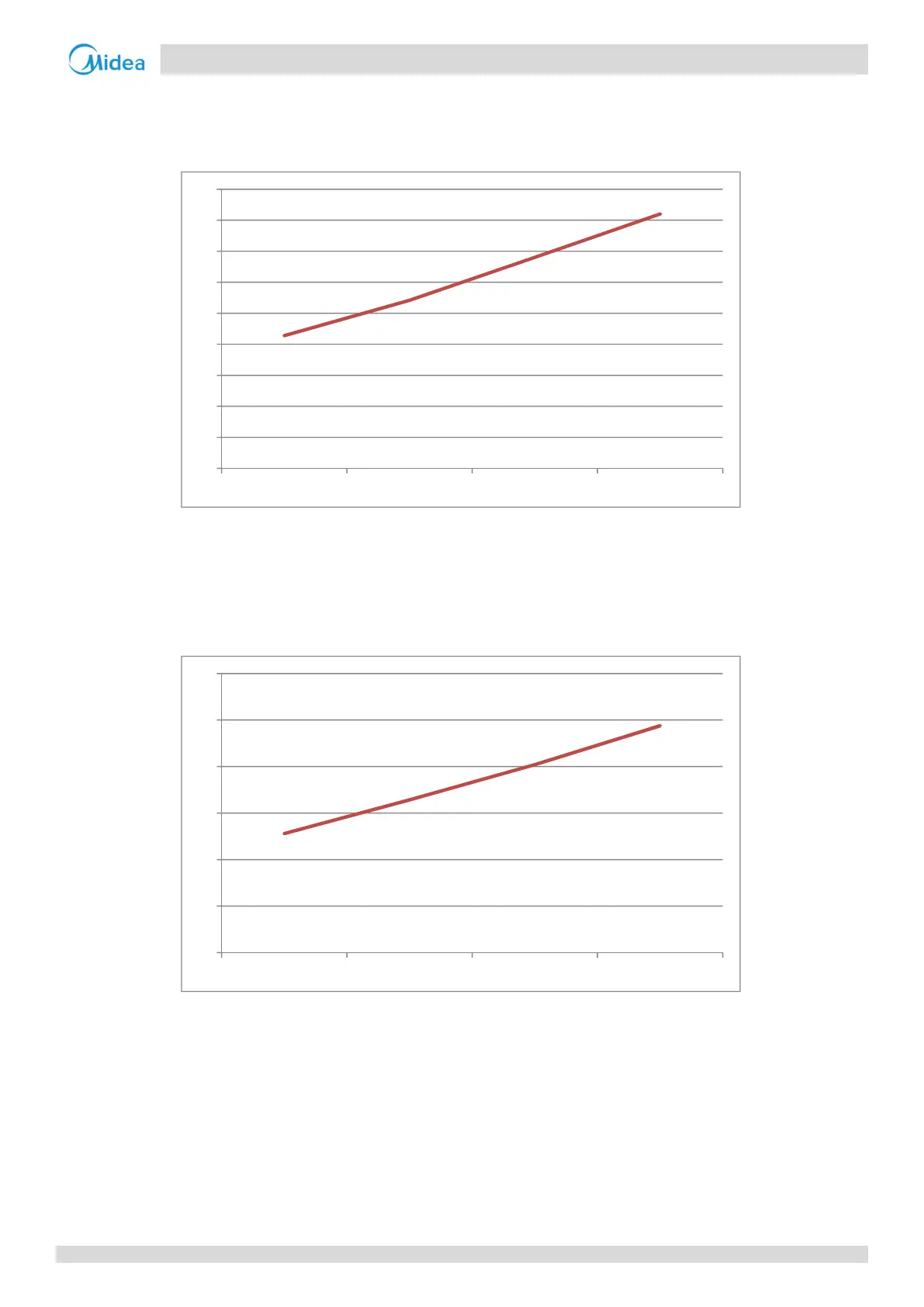

7 Hydronic Performance
MC-SU30(M)-RN1L
Figure 2-7.1: MC-SU30(M)-RN1L Hydronic performance
MC-SU60(M)-RN1L
Figure 2-7.2: MC-SU60(M)-RN1L Hydronic performance
0
10
20
30
40
50
60
70
80
90
3.72 4.26 4.79 5.32
0
10
20
30
40
50
60
7.33 8.37 9.42 10.47
Water pressure drop (kPa)
Water flow rate (m
3
/h)
Water pressure drop (kPa)
Water flow rate (m
3
/h)
