Midea Aqua Tempo Super II Engineering Data Book
5 Typical Applications
5.1 Space Heating Through Floor Heating Loops
Floor heating Loops are used for spaces heating.

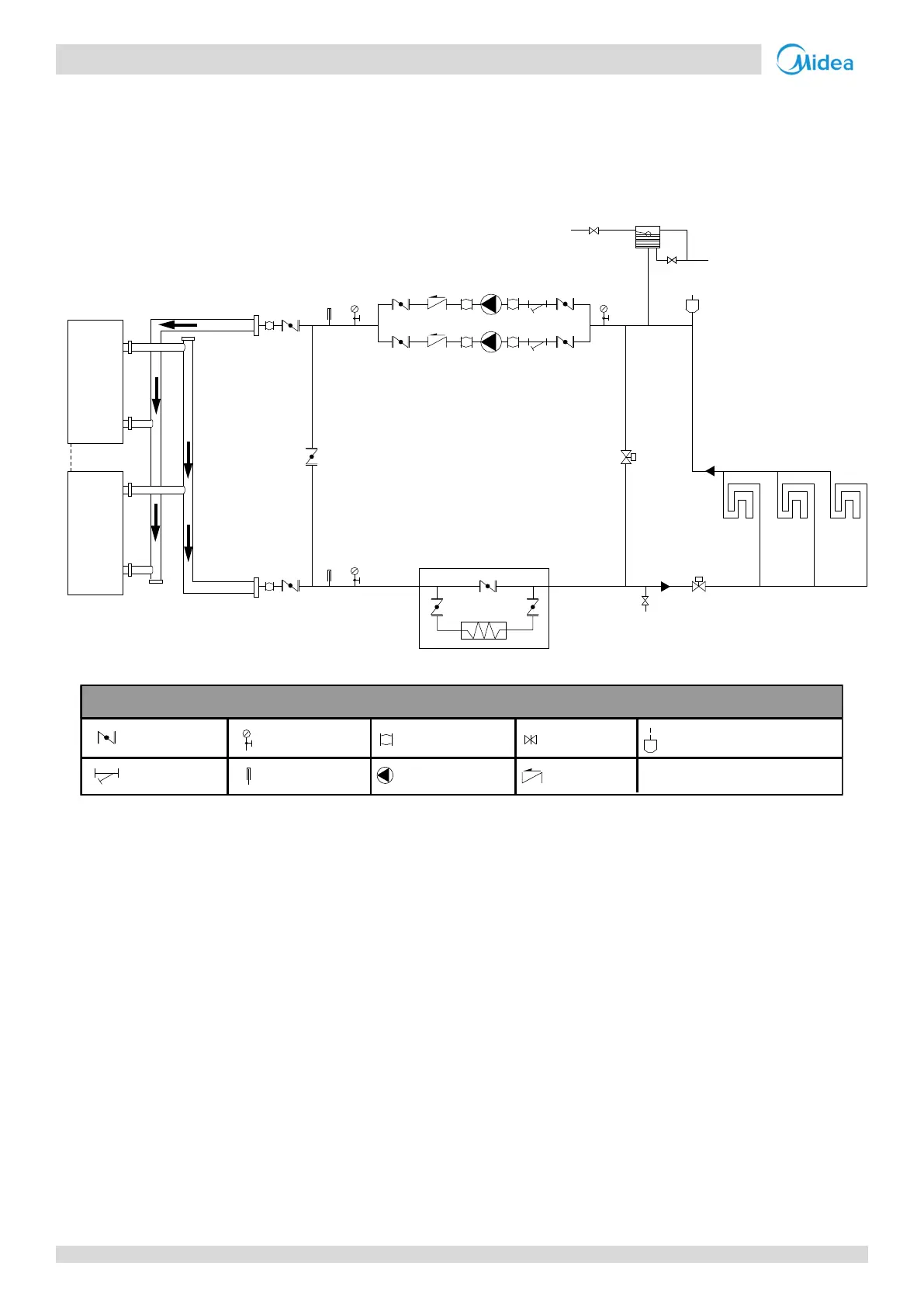

Figure 1-5.1: Space heating through floor heating loops (standard unit without hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Floor
Heating
Loops
Floor
Heating
Loops
Floor
Heating
Loops
Differential pressure
by-pass valve
Drain valve Two-way valves
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
Max 16 units
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend
