5.2 Space Heating and Space Cooling Through Fan Coil Unit
Fan coil units are used for space heating and cooling.

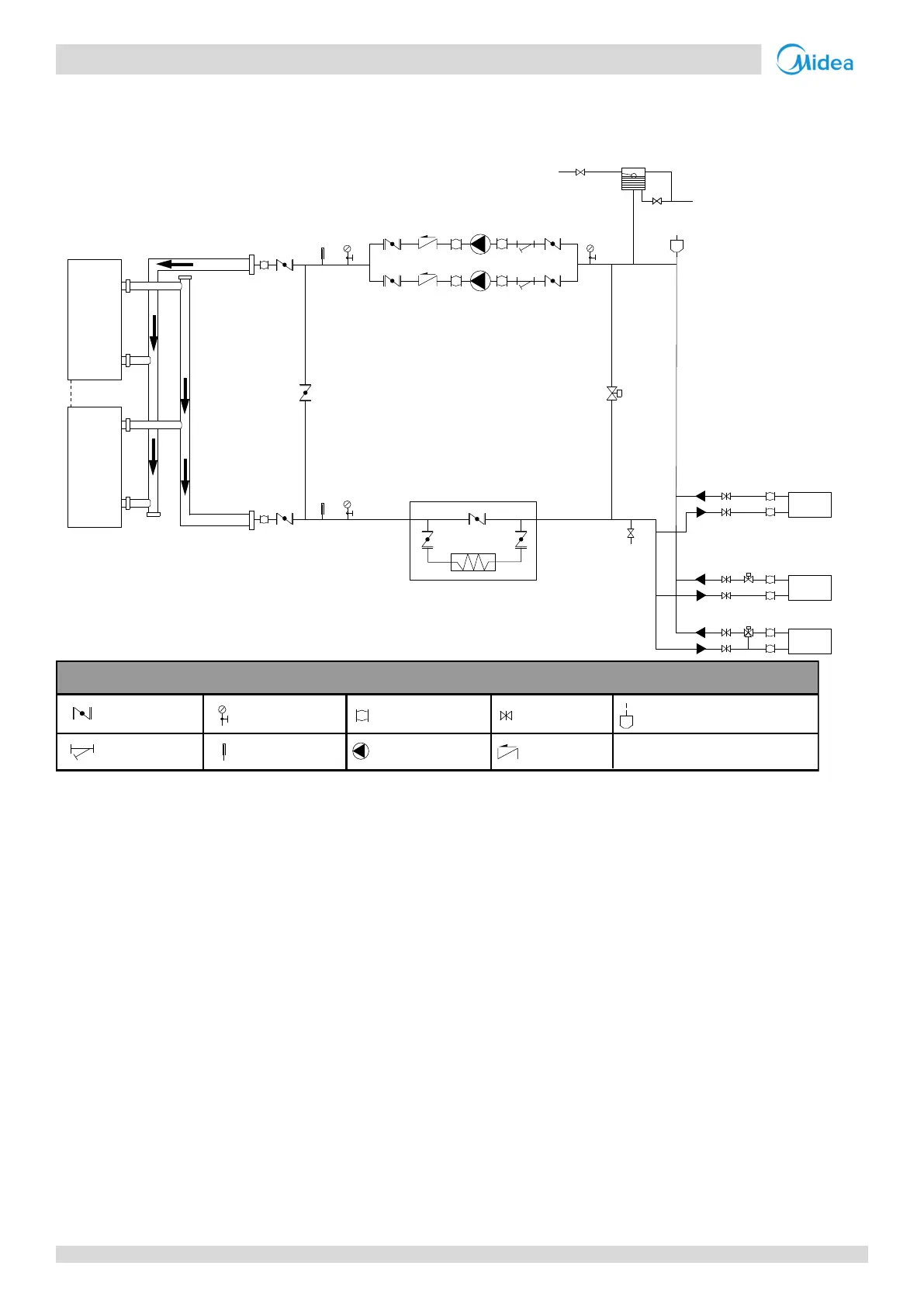

Figure 1-5.3: Space heating and space cooling through fan coil unit (standard unit without hydronic module)
Master unit
Expansion tank
Water replenishment valve
Water discharge valve
Differential pressure
by-pass valve
Drain valve
Two-way valve
Three-way valve
FCU
Auxiliary electric heater
unit
unit
Y-type filter,
requiring≥ 16 mesh
Slave unit
FCU
FCU
Stop valve Pressure gauge Gate valveFlexible joint
Y-shaped filter Thermometer Circulating pump Check valve
Automatic discharge valve
Legend
