Indoor unit installation
Installation 211

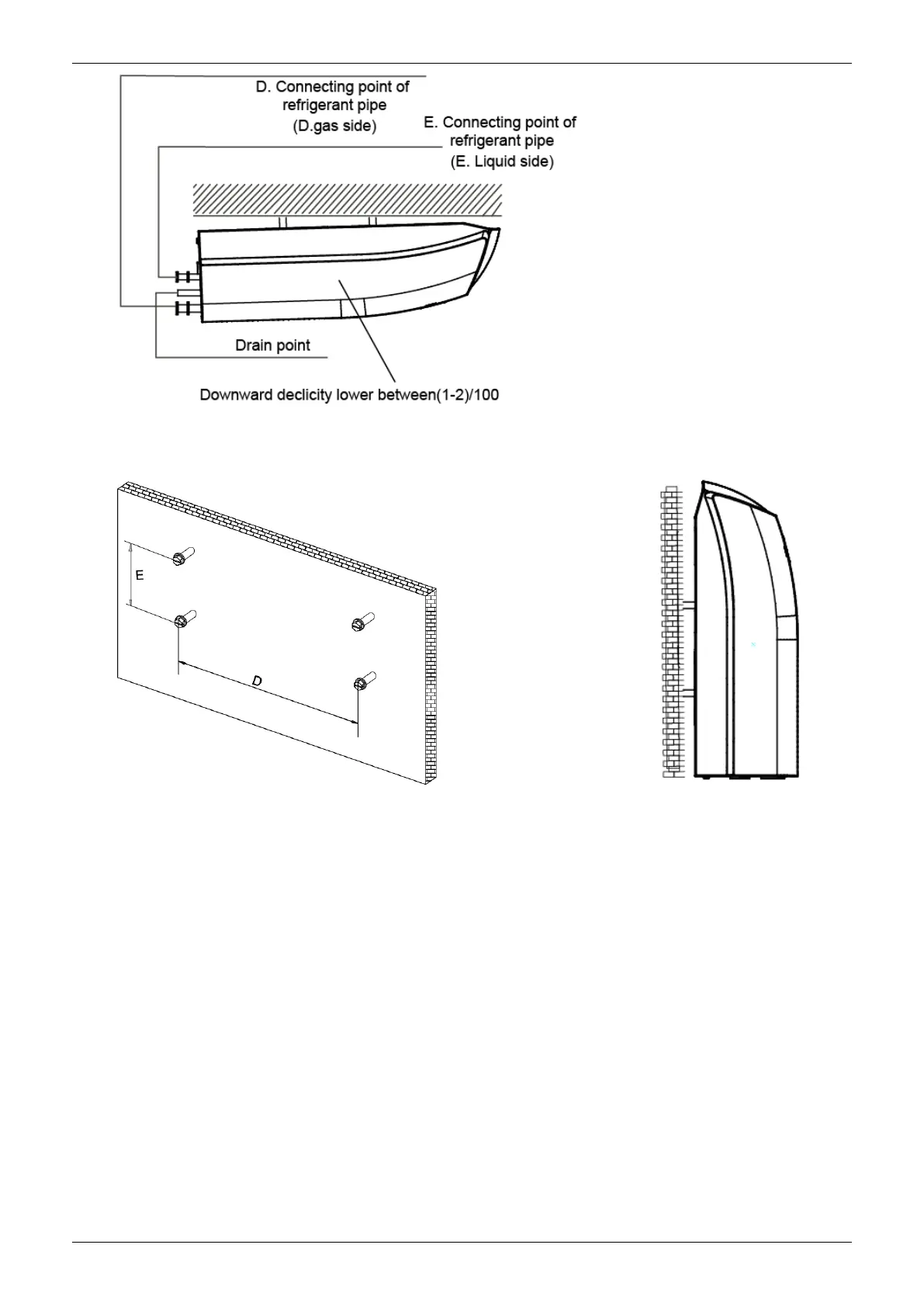

② Wall-mounted installation
Hang the indoor unit by insert the tapping screws into the hanging arms on the main unit. (The bottom of
body can touch with floor or suspended, but the body must install vertically.)
3.7 GA floor standing indoor unit installation
3.7.1 Service space for indoor unit
a. A place which provides the spaces around the indoor unit as required above in the diagram.
b. A place where is no obstacle near the inlet and outlet area.
c. A place which can bear the weight of the indoor unit.
d. A place which allows the air filter to be removed downward.
e. A place where the reception range is not exposed to direct sunlight.
f. In the center of the room where possible.
3.7.1.1 Please stand the unit in hard and flat ground;
Please reserve space for installation and maintenance.
