Putty
Putty
Putty
Trap
Trap
Trap

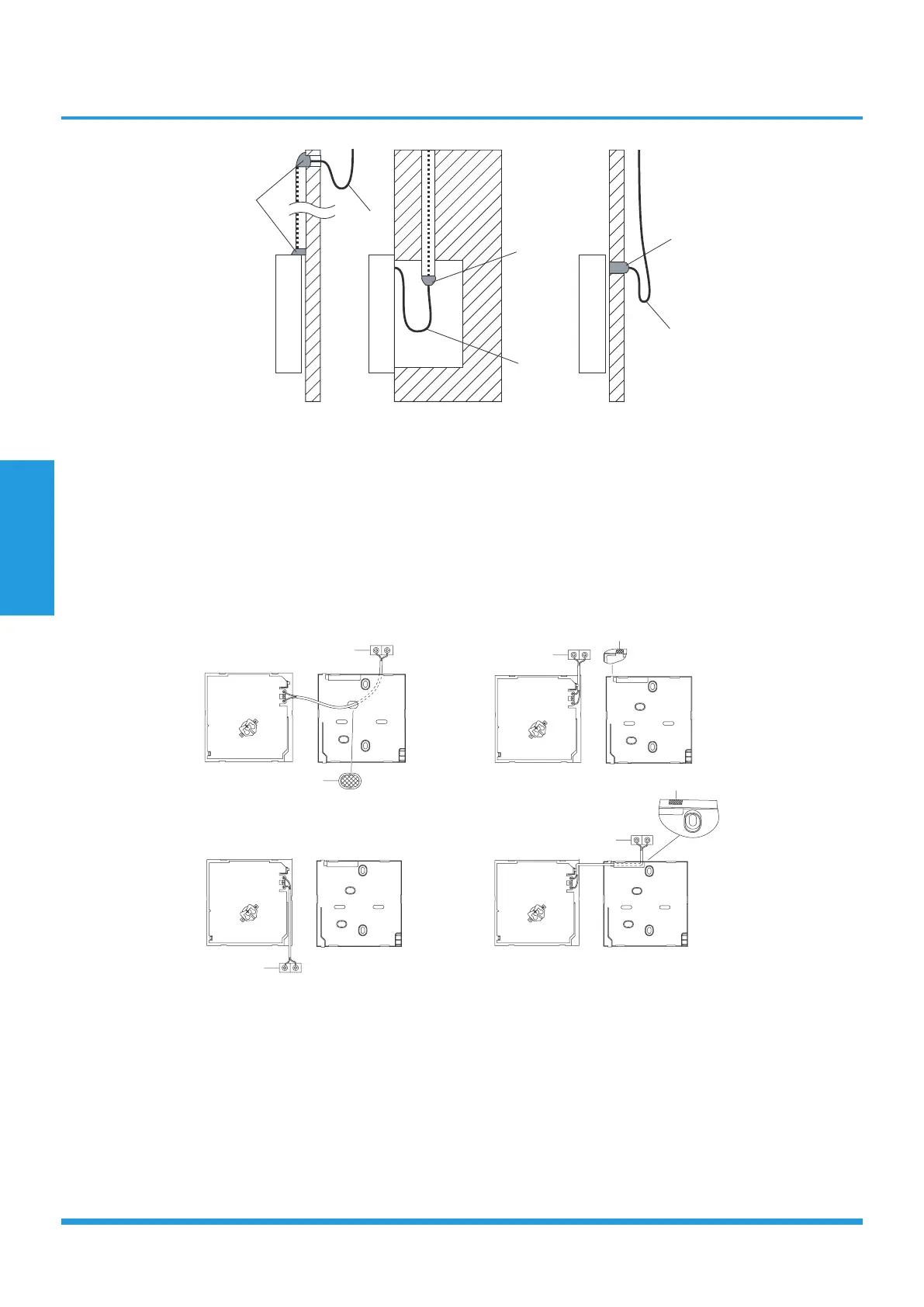

Note: DO NOT allow water to enter the remote control. Use the trap and putty to seal the wires.
• For wiring the indoor unit, there are three methods:
• From the rear;
• From the bottom;
• From the top;
• From the top center.
PCB
PCB
PCB
PCB
HA HB
1
2
HA HB
HA HB
2
HA HB
1
2
1
2
3
4
• 1: Indoor Unit.
• 2: Notch the part for the wiring to pass through with a nipper tool.
• Connect the terminals on the remote controller (HA ,HB), and the terminals of the indoor unit. (HA ,HB). (HA
and HB do not have polarity.)
To Next Page
