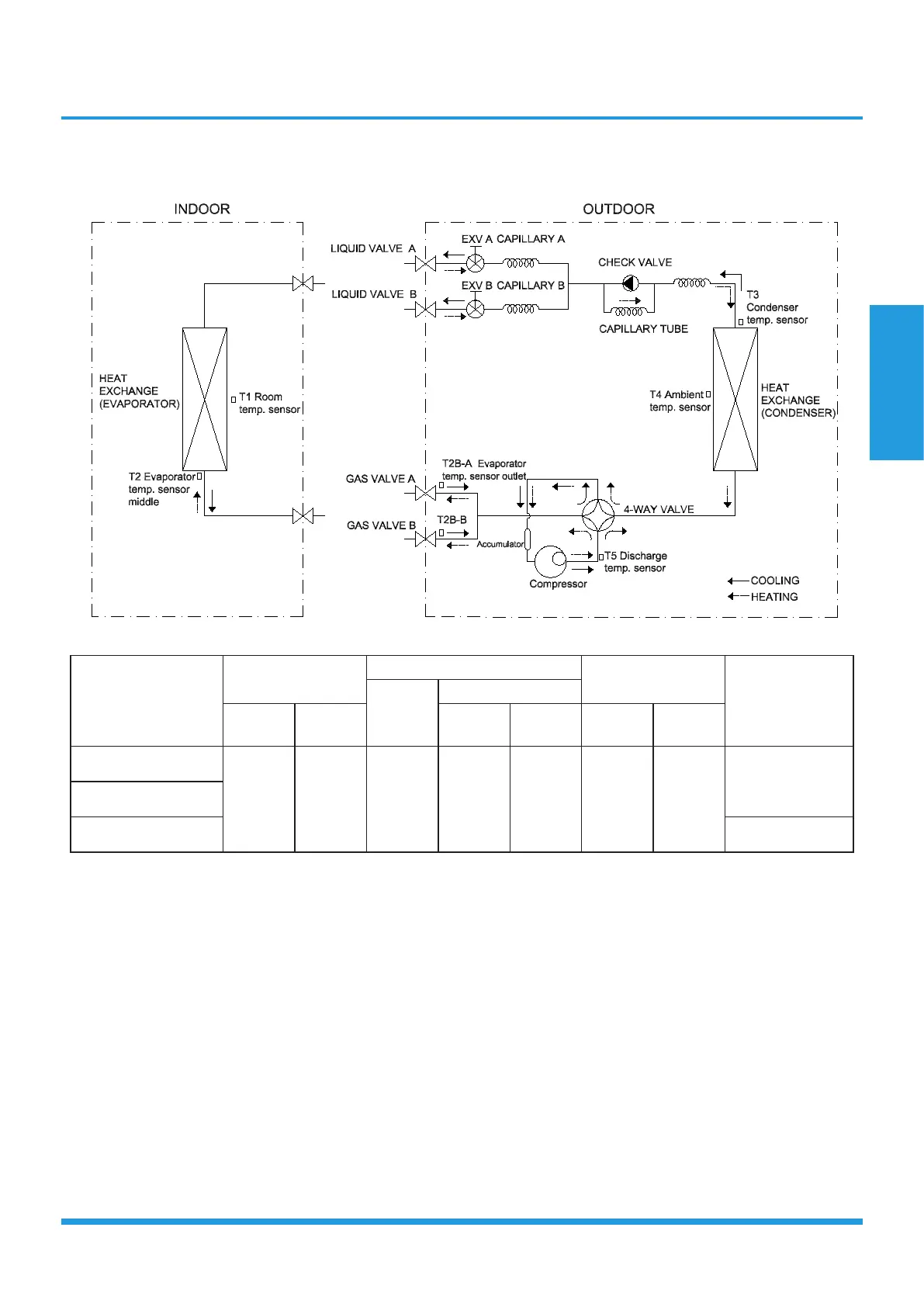

9. Refrigerant Cycle Diagrams
Model
Pipe Size
(Diameter:ø)
Piping length (m)
Elevation (m)
Additional
Refrigerant
Rated
Max
Gas Liquid Single Total
IDU and
ODU
Between
IDUs
M2OG-14HFN8-Q
2x9.52 2x6.35 15 25 40 15 10
12g/m
M2OC-18HFN8-Q
M2OD-18HFN8-Q
Note: For M2OC-18HFN8-Q, there is no Accumulator.
