Indoor unit installation
216 Installation

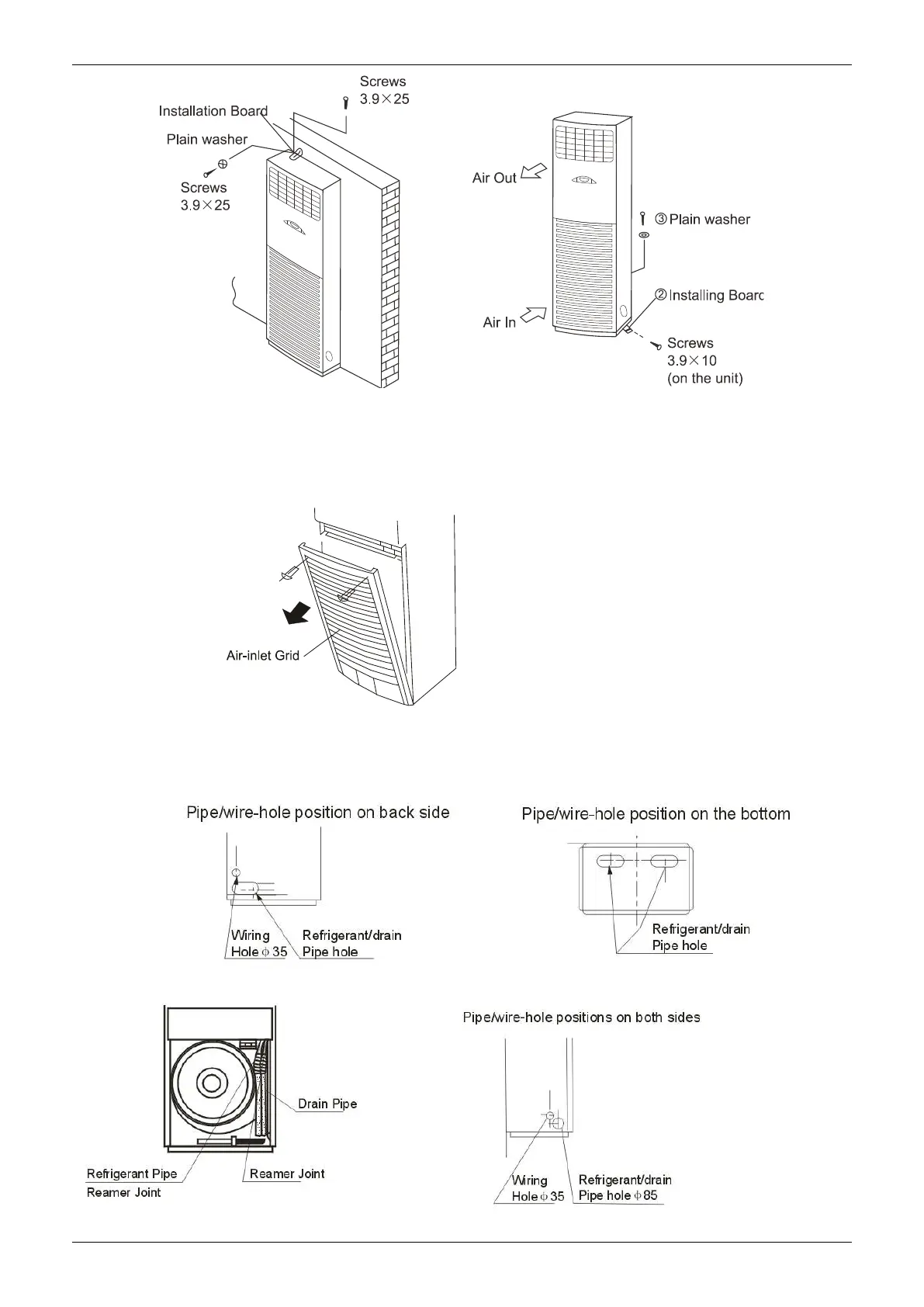

3.9.2.2. Dismounting the lower front panel
Please take off the air-inlet grid before connecting the pipes/wires.
Pull down the two knobs on the grille, take off the two screws, then the air-inlet grille goes free.
3.9.2.3. Take the Pipe Clip off before connecting the pipes and wiring; fit it when these finished.
Use accessories to connect the pipes/wires on both sides and back side.
