Indoor unit installation
Installation 217
3.10 S4 floor standing indoor unit installation

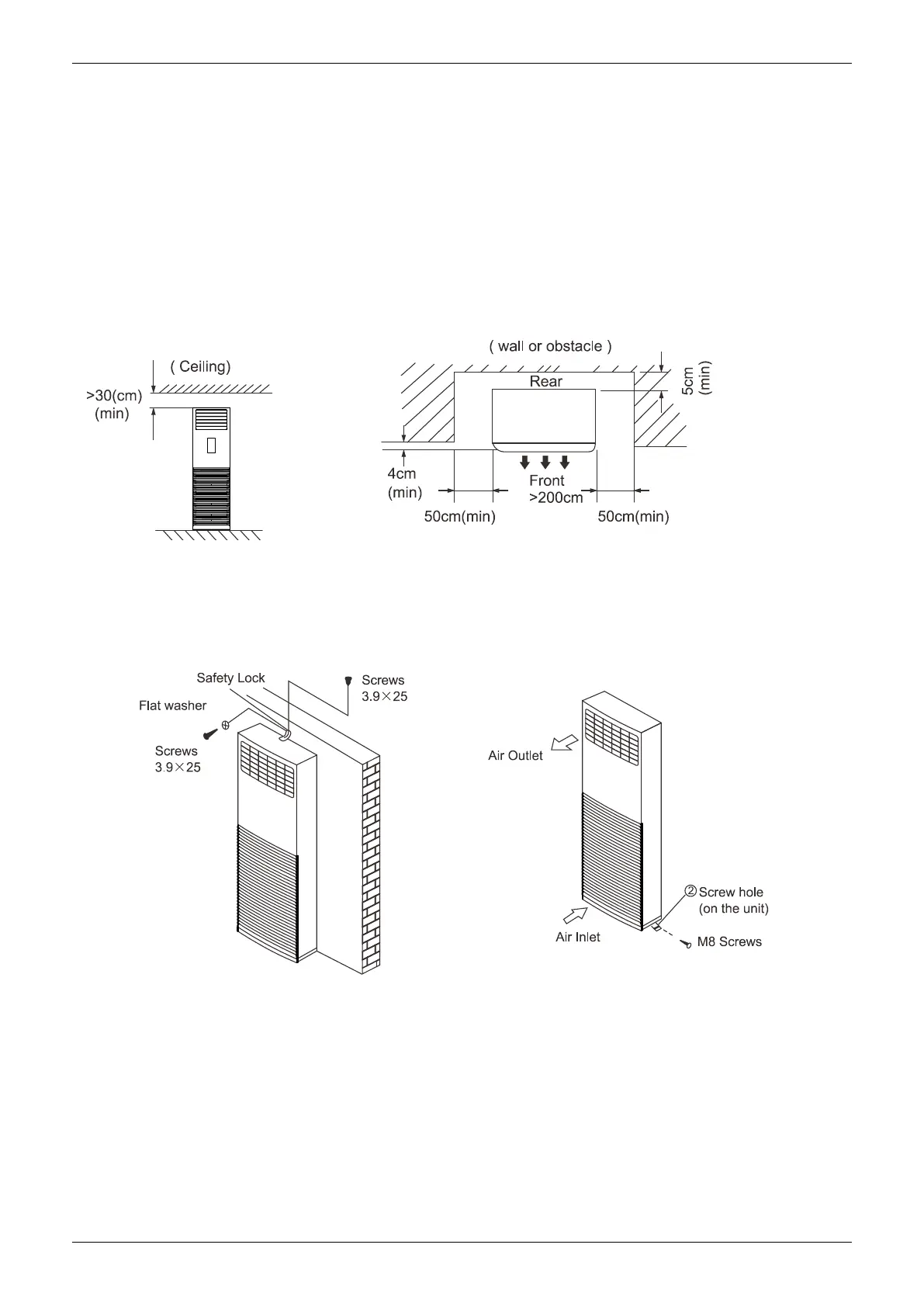

3.11.1 Service space for indoor unit
a. A place which provides the spaces around the indoor unit as required above in the diagram.
b. A place where is no obstacle near the inlet and outlet area.
c. A place which can bear the weight of the indoor unit.
d. A place which allows the air filter to be removed downward.
e. A place where the reception range is not exposed to direct sunlight.
f. In the center of the room where possible.
3.10.1.1 Please stand the unit in hard and flat ground;
Please reserve space for installation and maintenance.
3.11.2 Installing
3.10.2.1. Anti-falling;
To prevent the indoor unit from falling, you must:
a. Pay full attention to the unit because its long outer shape makes it easy to fall;
b. Firmly fix the unit to the wall or in the ground to avoid accidental falling.
3.10.2.2. Dismounting the lower front panel
Please take off the air-inlet grid before connecting the pipes/wires.
Pull down the two knobs on the grille, take off the two screws, then the air-inlet grille goes free.
