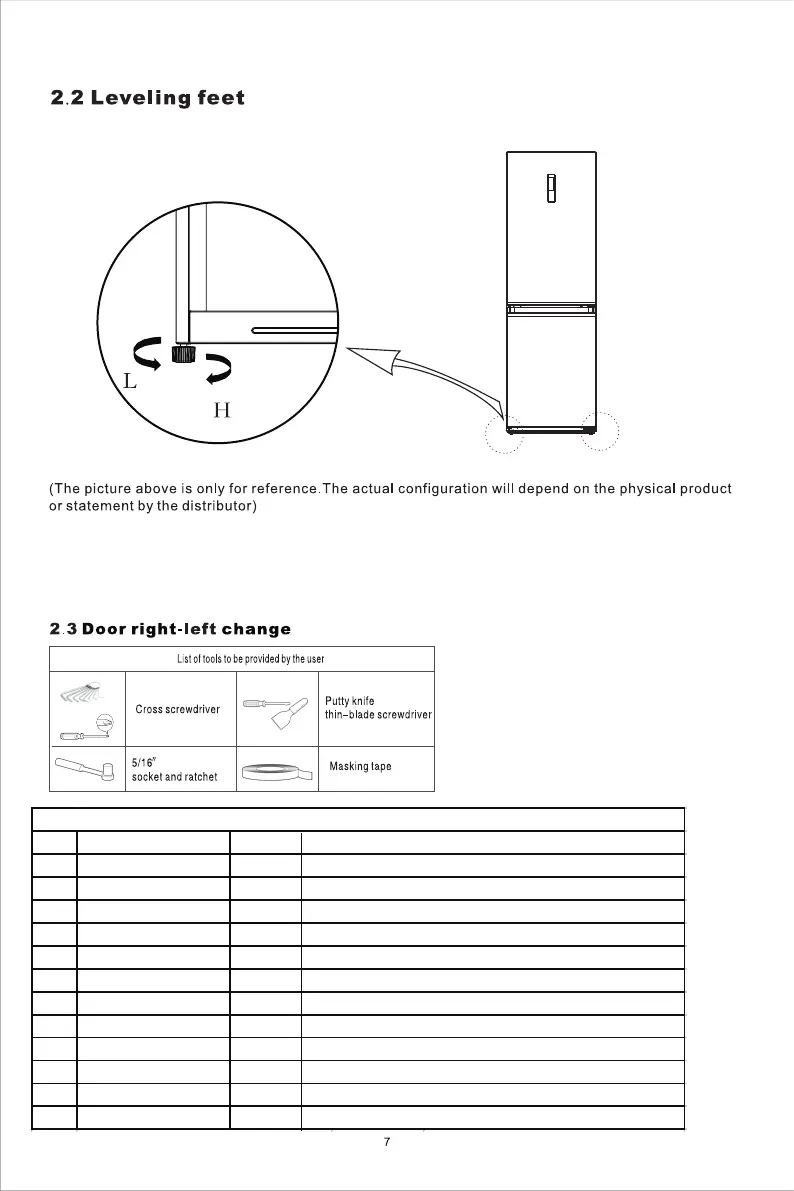

Ｓｃｈｅｍａｔｉｃ ｄｉａｇｒａｍ ｏｆ ｔｈｅ ｌｅｖｅｌｌｉｎｇ ｆｅｅｔ
Ａｄｊｕｓｔｉｎｇ ｐｒｏｃｅｄｕｒｅｓ：
ａ． Ｔｕｒｎ ｔｈｅ ｆｅｅｔ ｃｌｏｃｋｗｉｓｅ ｔｏ ｒａｉｓｅ ｔｈｅ ｒｅｆｒｉｇｅｒａｔｏｒ；
ｂ． Ｔｕｒｎ ｔｈｅ ｆｅｅｔ ｃｏｕｎｔｅｒｃｌｏｃｋｗｉｓｅ ｔｏ ｌｏｗｅｒ ｔｈｅ ｒｅｆｒｉｇｅｒａｔｏｒ；
ｃ． Ａｄｊｕｓｔ ｔｈｅ ｒｉｇｈｔ ａｎｄ ｌｅｆｔ ｆｅｅｔ ｂａｓｅｄ ｏｎ ｔｈｅ ｐｒｏｃｅｄｕｒｅｓ ａｂｏｖｅ ｔｏ ａ ｈｏｒｉｚｏｎｔａｌ ｌｅｖｅｌ．
Parts to be used for door reverse
SN
part
Quantity
Pre-installed on the refrigerator and to be used when changing the door
Pre-installed on the refrigerator and to be used when changing the door
Pre-installed on the refrigerator and to be used when changing the door
Pre-installed on the refrigerator and to be used when changing the door
In the attached plastic bag, take them out for use when door is reversed
In the attached plastic bag, take them out for use when door is reversed
In the attached plastic bag, take them out for use when door is reversed
In the attached plastic bag, take them out for use when door is reversed
Notes
Pre-installed on refrigerator, removed and retained it when changing the door
Pre-installed on refrigerator, removed and retained it when changing the door
Pre-installed on refrigerator, removed and retained it when changing the door
Pre-installed on refrigerator, removed and retained it when changing the door
1 Upper hinge 1
2 Upper hinge cover 1
3 Decorative cover 1
4 Door self-locking 2
5 Middle hinge 1
6 Decorative cover 1
7 Lower hinge 1
8 Levelling feet 1
9 Left upper hinge 1
10 Left upper hinge cover 1
11 Left door
self-locking 2
