R410A All DC Inverter Mini VRF MCAC-VTSM-2016-02
48 Installation

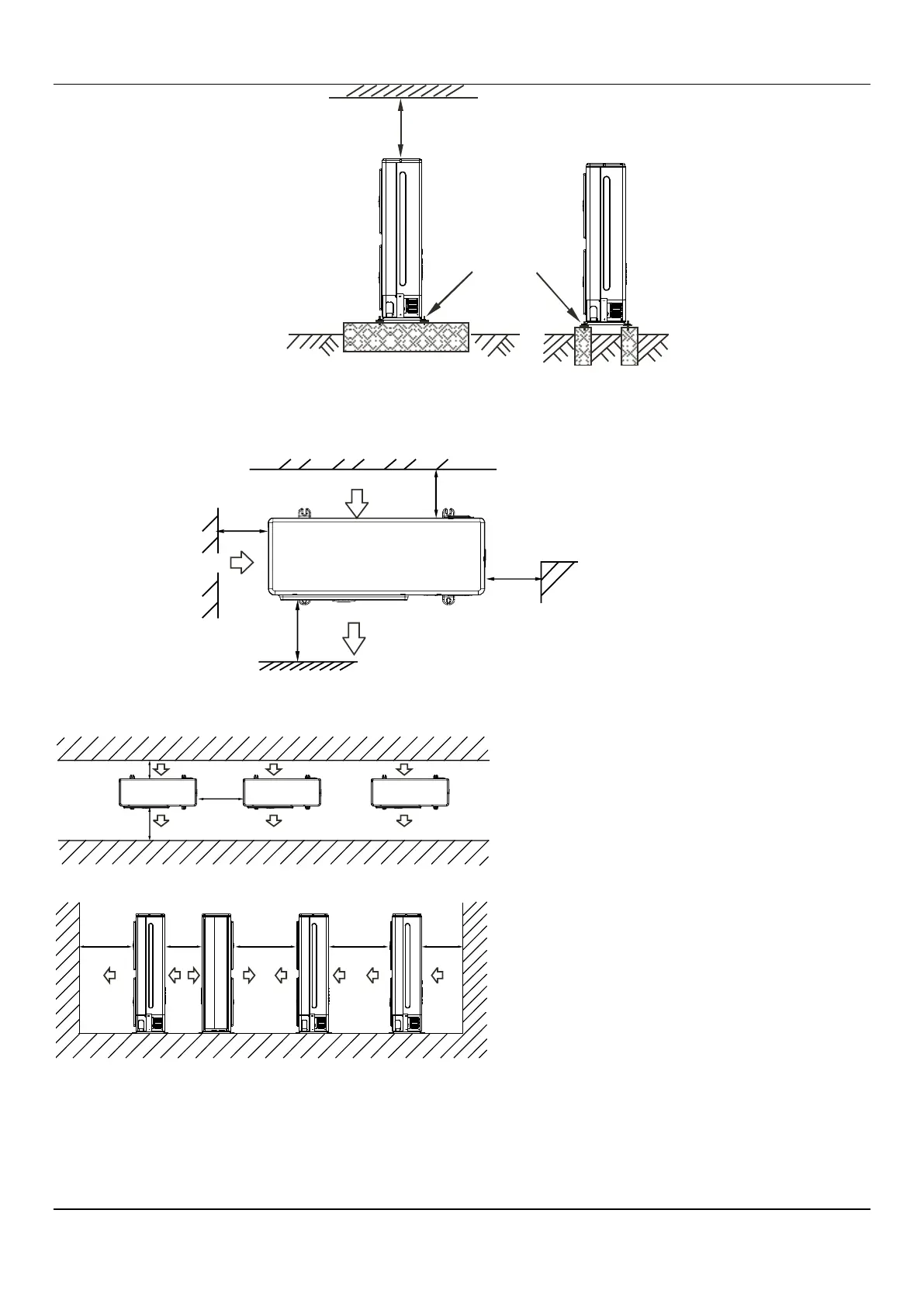

Single unit installation
Parallel connect two units or above
Parallel connect the front with rear sides
All the pictures in this manual are for explanation purpose only. They might be slightly different from the air
conditioner you purchased (depending on model).The actual shape shall prevail.
>
6
0
c
m
Fix with bolt
>600
>2000
>300
>2000 >500 >3000 >3000 >300
>300
>600
>300
>
2000
(Wall or obstacle)
Maintain
channel
Air outlet
Air inlet
Air inlet
