6. Outdoor Unit Wiring
6.1The Specification of Power
Table 6-1
Capacity
12kW-16kW
18kW
Outdoor Unit power
Phase
3 phase
3 phase
Voltage and
Frequency
380-415V~ 50Hz
380-415V~ 50Hz
Power Wiring(mm
2
)
5-core X2.5
5-core X2.5
Circuit Breaker/Fuse (A)
25
32
Indoor unit/Outdoor unit Signal wire
(Weak electric signal) (mm
2
)
3-core shielded wire
3X0.75
3-core shielded wire
3X0.75
CAUTION
A disconnection device having an air gap contact separation in all active conductors should be incorporated in the fixed wiring
according to the National Wiring Regulation.

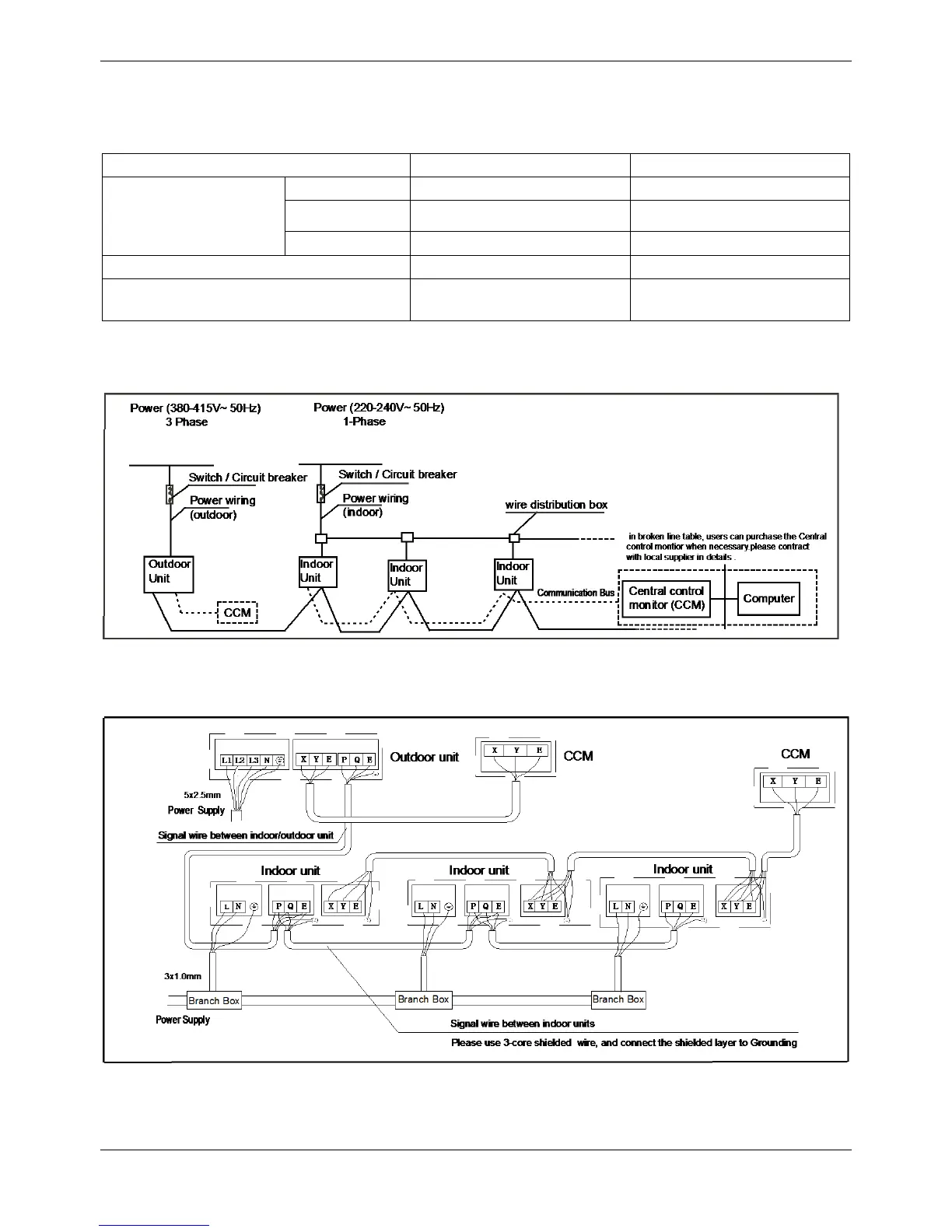

Fig.6-1
Fig.6-2
CAUTION
The reserved function is indicated in broken line table, users can select it when necessary.
