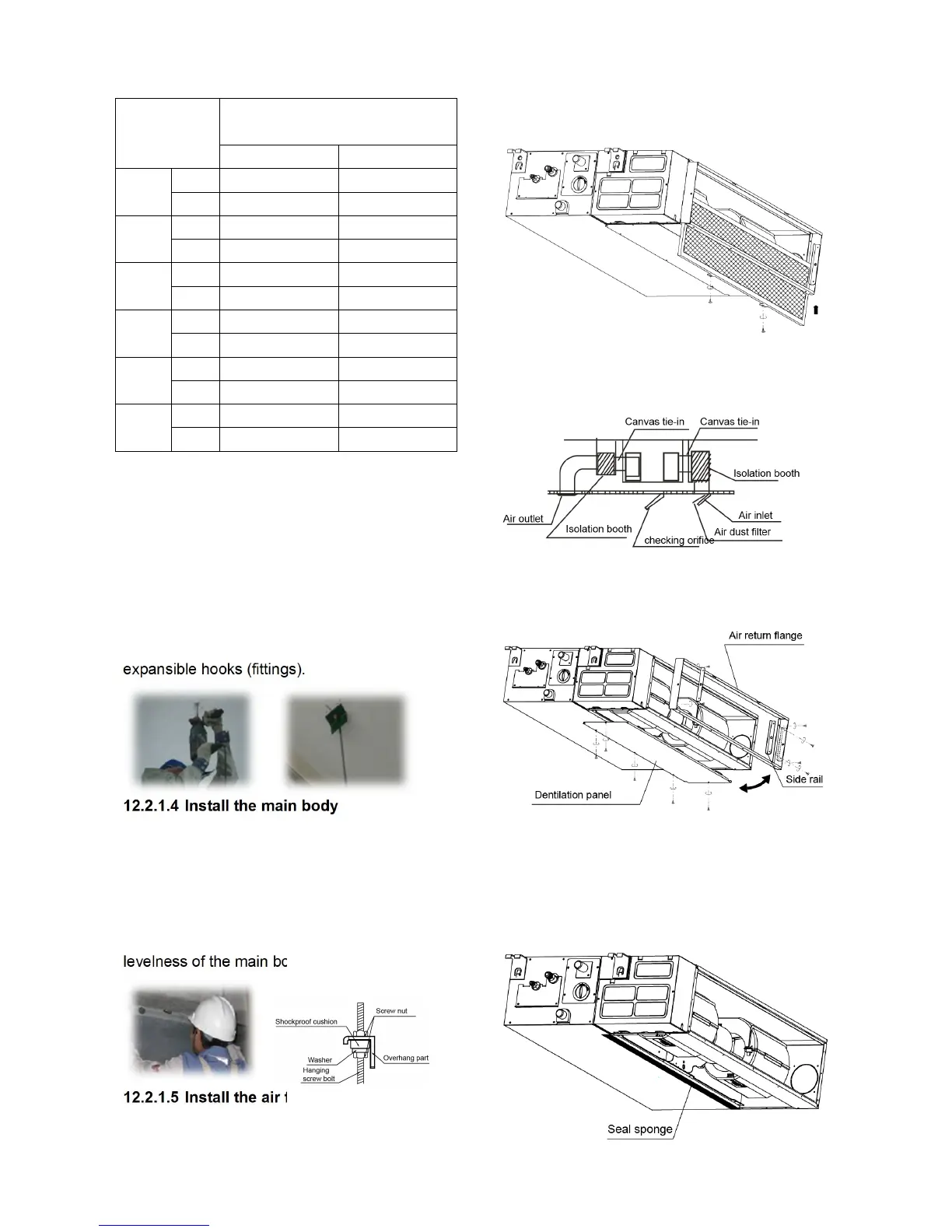

12.2.1.3 Install the pendant bolt
Select the position of installation hooks
according to the hook holes positions showed
in upper picture.
Drill four holes of Ø12mm(0.47in),
45~50mm(1.57~1.97in) deep at the selected
positions on the ceiling. Then embed the
expansible hooks (fittings).
12.2.1.4 Install the main body
Make the 4 suspender through the 4 hanger of
the main body to suspend it. Adjust the
hexangular nuts on the four installation hooks
evenly, to ensure the balance of the body. Use
a leveling instrument to make sure the
levelness of the main body is within ±1°.
12.2.1.5 Install the air filter
Insert the air filter through the filter slot and fix it
with 2 screws.
12.2.1.6 Install the air duct
Please design the air duct as below
recommended picture
12.2.1.7 Change the air inlet direction
① Take off ventilation panel and flange, cut off
the staples at side rail.
② Stick the attached seal sponge as per the
indicating place in the following fig, and then
change the mounting positions of air return
panel and air return flange .
Capacity(KBtu)
Size of outline dimension mounted
plug
L M
9
mm
740 350
in
29.13 13.78
12
mm
740 350
in
29.13 13.78
18
mm
960 350
in
37.80 13.78
24
mm
960 350
in
37.80 13.78
36
mm
1180 490
in
46.46 19.29
48
mm
1240 500
in
48.82 19.69
