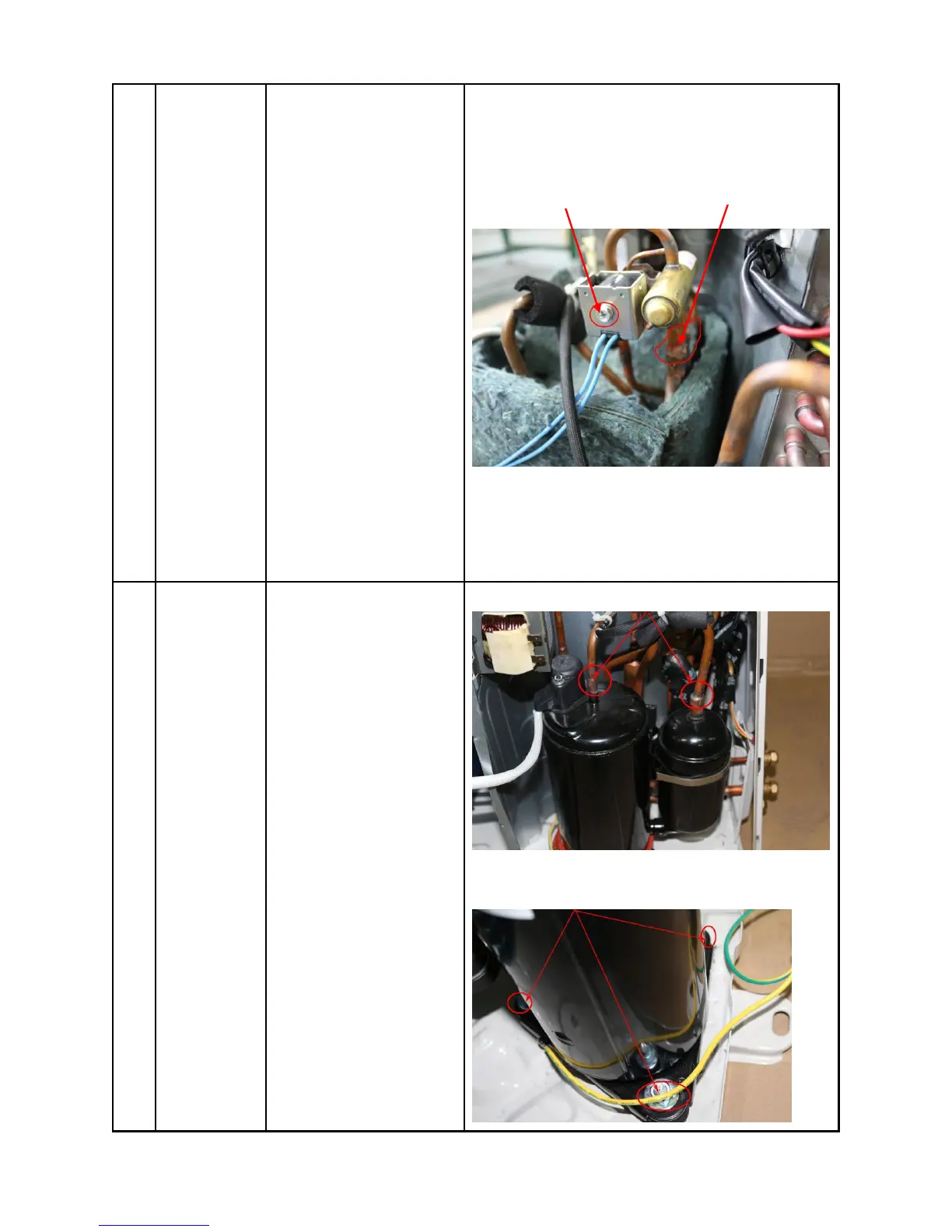

4 Four-way

valve

How to remove the

four-way valve.

1）Perform work of item

1,3.

2)Recover refrigerant from

the refrigerant circuit.

3)Remove the screw of the

coil and then remove the

coil.

4)Detach the welded parts

of four-way valve and pipe.

5)Then the four-way valve

ass’y can be removed

The picture of four-way valve may be different from

the one on your side.

5 Compressor

How to remove the

compressor.

1) After perform work of

item1,3. Recover

refrigerant from the

refrigerant circuit.

2) Remove the

discharge pipe and suction

pipe with a burner.

3) Remove the hex nuts

and washers fixing the

compressor on bottom

plate.

4) Lift the compressor

from the base pan

assembly.

○

④

○
