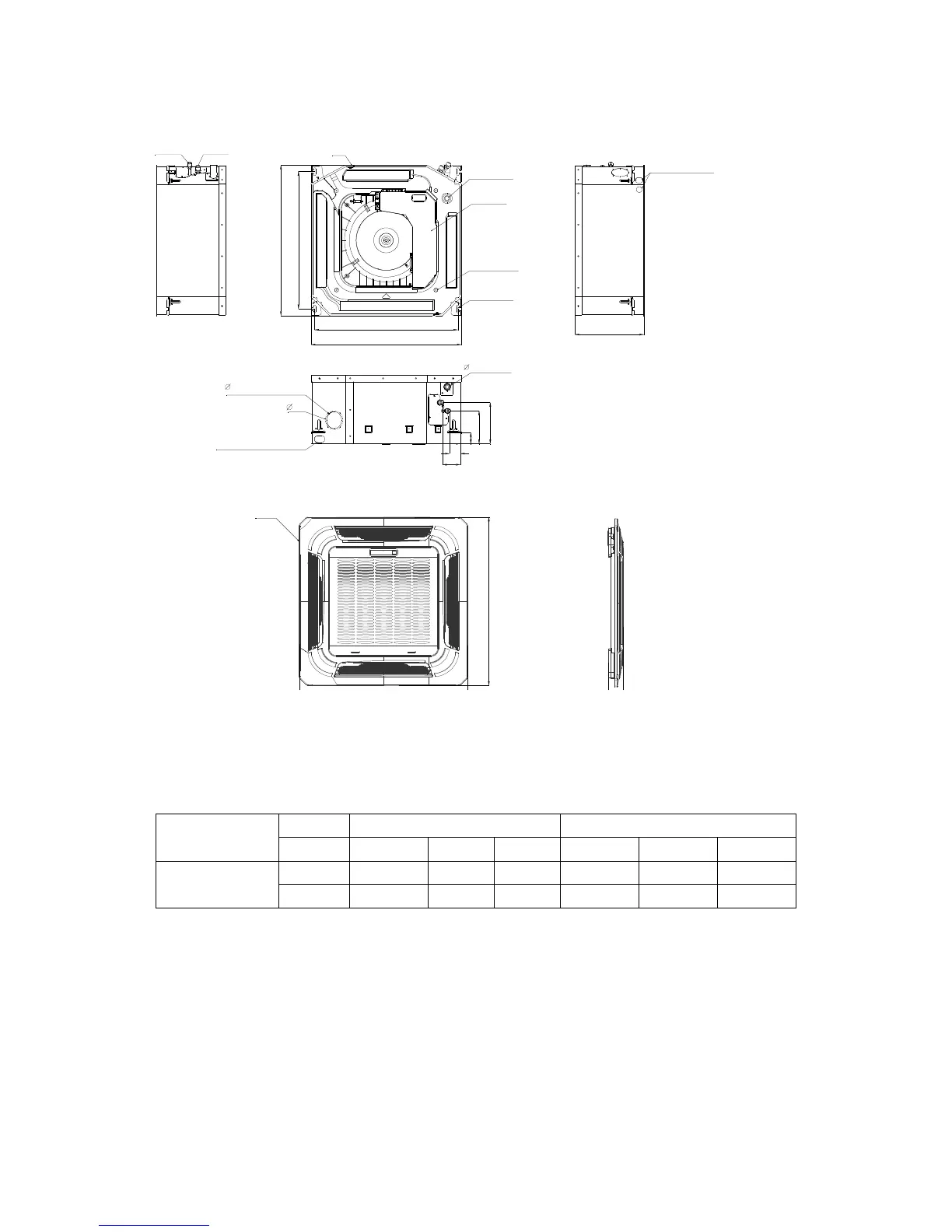

Cassette Units(9K, 12K, 18K)
Panel
Gas side
Liquid side
4-install hanger
Body
Drain pipe32
Fresh air intake
65
647
Drain hole
( for Service )
545
570
260
68
42
157 126
44
Wiring connection port
75
E-parts box
4-Screw hole
(for install panel)
523
570
Wiring connection port
Capacity (Btu/h)
Body Panel
W D H W1 D1 H1
9K/12K/18K
mm 570 260 570 647 50 647
inch 22.44 10.24 22.44 25.47 1.97 25.47
22.44in
(21.46in)
10.24in
25.47in
(20.59in)
1-1/4in
2.95in
2.56in
