RED WIRE
WHITE WIRE
BLACK WIRE

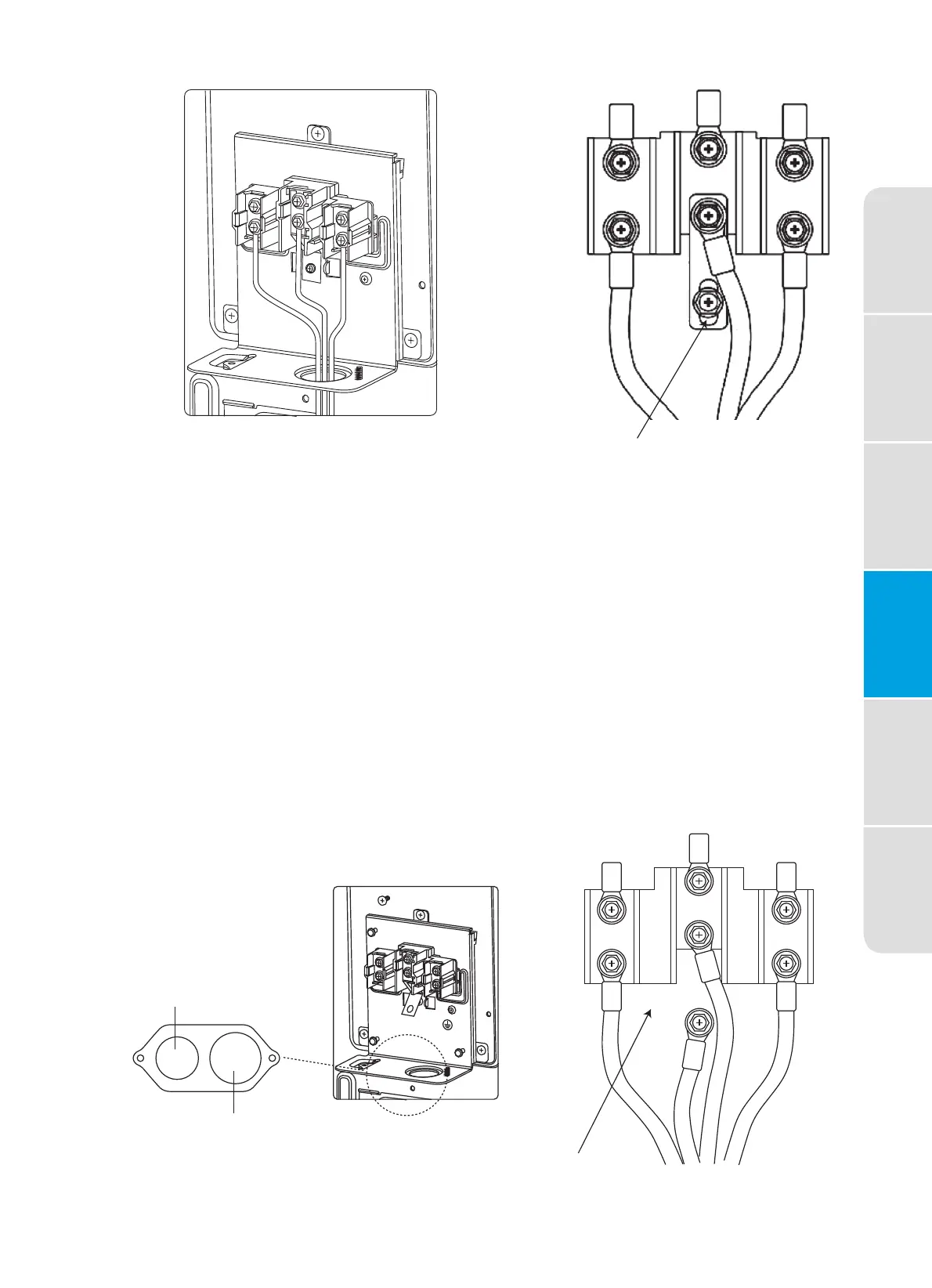

Conduit Directions:
• Remove and flip the conduit plate below the terminal block such that
the smaller of the two holes is centered over the opening in the
electrical enclosure.
• Insert the conduit strain relief into the opening below the terminal block.
Tighten nut to hold conduit strain relief in place.
• Thread the conduit leads through the opening and strain relief.
• Tighten screws on strain relief to secure conduit in place. Place the
conduit within the strain relief such that the leads have enough slack to
connect to the terminal block without any stress or tension.
• Remove the 3 screws from the supply side of the terminal block.
• Attach the conduit leads to the terminal block and chassis as shown:
• Replace the access cover when complete.
CUT OR REMOVE
GROUND LINK
BLACK WIRE
GREEN WIRE
WHITE WIRE
RED WIRE
1 1/8 (2.8cm) Conduit
1 3/8 (3.5cm) Cord
IMPORTANT
SAFETY
INSTRUCTIONS
BEFORE
STARTING
INSTALLATION
INSTALLATION
PROCEDURE
CONFIRM
OPERATION
TROUBLESHOOTING
SAFETY
DEFINITIONS
GROUND SCREW
