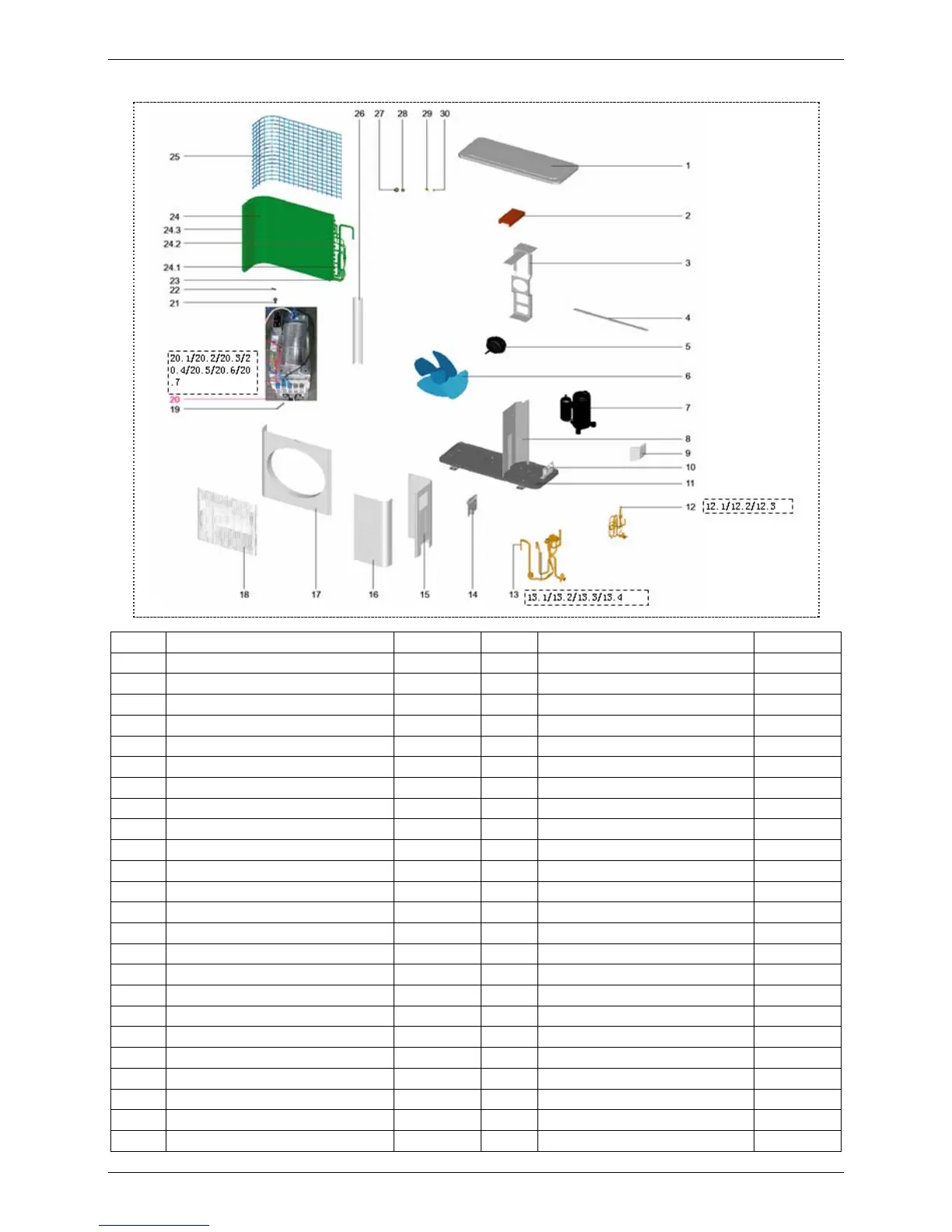

MCAC-UTSM-2009-03 Exploded View
Outdoor Units 27
9.2 MON-18HN1
No. Part Name Quantity No. Part Name Quantity
1 Top cover ass'y 1 18 Grille 1
2 Foam 1 19 Small handle 1
3 Motor bracket ass'y 1 20 E-part box ass'y 1
4 Rear net frame 1 20.1 Wire joint, 4p 1
5 Fan motor 1 20.2 Compressor capacitor 1
6 Axial flow fan 1 20.3 Electric installation board 1
7 Compressor 1 20.4 Motor capacitor 1
8 Partition board ass'y 1 20.5 Main control board ass'y 1
9 Drainage cover 1 20.6 Transformer 1
10 Valve plate 1 20.7 Relay 1
11 Base ass'y 1 21 Drain hose 1
12 High pressure valve ass'y 1 22 Net clamp 8
12.1 Strainer 1 23 Temp. sensor ass'y 1
12.2 One way valve 1 24 Condenser ass'y 1
12.3 High pressure valve 1 24.1 Fluted pipe ass'y 1
13 4-way valve ass'y 1 24.2 Input pipe ass'y 1
13.1 Solenoid 1 24.3 Condenser ass'y 1
13.2 Low pressure valve 1 25 Rear net 1
13.3 4-way valve 1 26 Left holder 1
13.4 Muffler 1 27 Copper nut 1
14 Big handle 1 28 Copper nut 1
15 Rear right clapboard ass'y 1 29 Sphere pad 1
16 Front right clapboard ass'y 1 30 Sphere pad 1
17 Front panel 1
