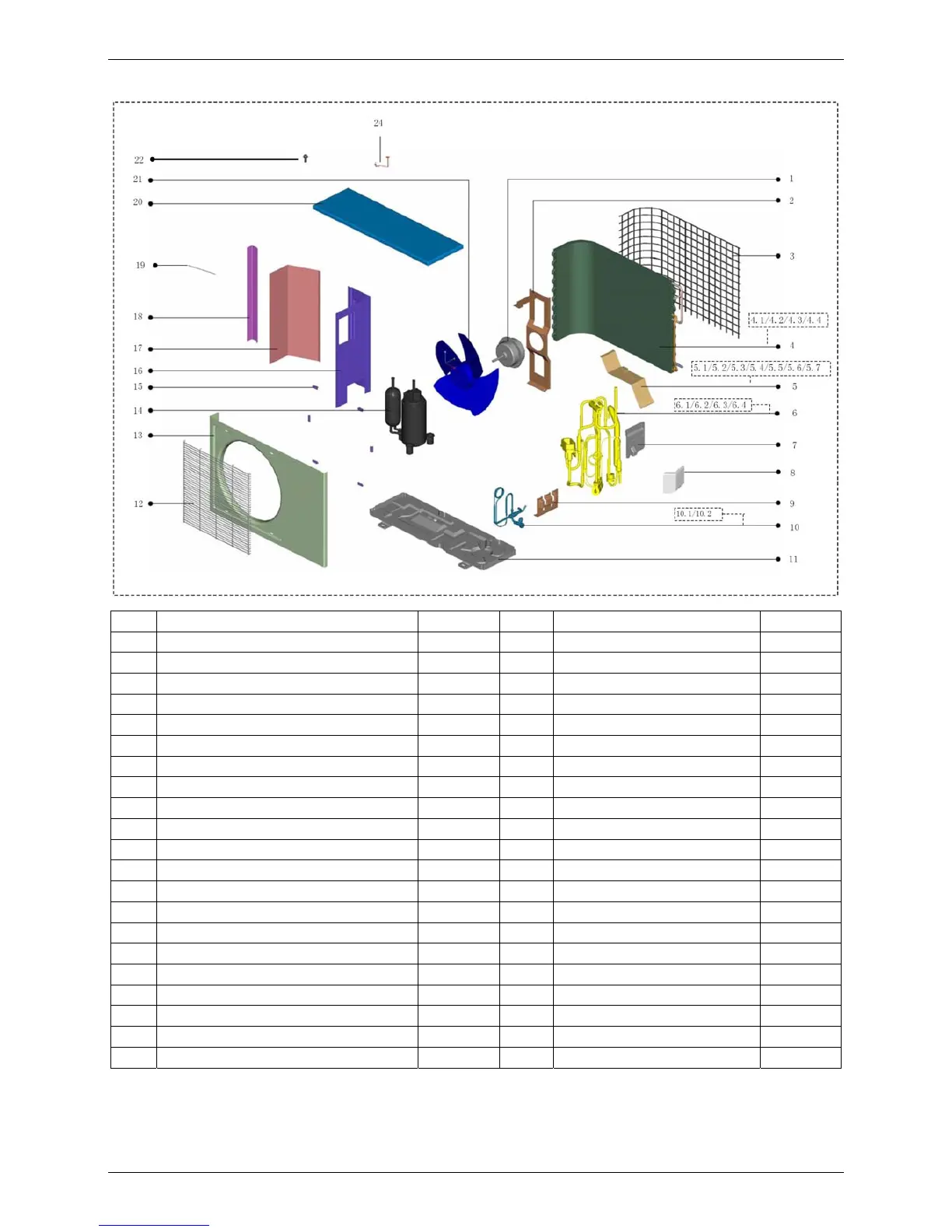

Exploded View MCAC-UTSM-2009-03
28 Outdoor Units
9.3 MON-12HN1-Q
No. Part Name Quantity No. Part Name Quantity
1 Fan motor 1 7 Big handle 1
2 Motor bracket ass'y 1 8 Drainage cover 1
3 Rear net 1 9 Valve plate 1
4 Condenser ass'y 1 10 High pressure valve ass'y 1
4.1 Condenser 1 10.1 One way valve 1
4.2 Condenser output pipe 1 10.2 Filter ass'y 1
4.3 Condenser connecting pipe ass'y 1 11 Base ass'y 1
4.4 Condenser inlet pipe ass'y 1 12 Grille 1
5 E-part box ass'y 1 13 Front panel 1
5.1 Connect wiring 1 14 Compressor 1
5.2 Transformer 1 15 Net clamp 6
5.3 Compressor capacitor 1 16 Right clapboard 1
5.4 Motor capacitor 1 17 Partition board ass'y 1
5.5 Relay 1 18 Left supporter 1
5.6 E-Part box 1 19 Small handle 1
5.7 Main control board ass'y 1 20 Top cover 1
6 4-way valve ass'y 1 21 Axial flow fan 1
6.1 4-way valve 1 22 Drain hose 1
6.2 Solenoid 1 23 R410A
6.3 Pipe joint 1 24 Temp. sensor ass'y 1
6.4 Coupling ass'y 1
