MCAC-UTSM-2009-03 Installation of the Connecting Pipe
Installation 45

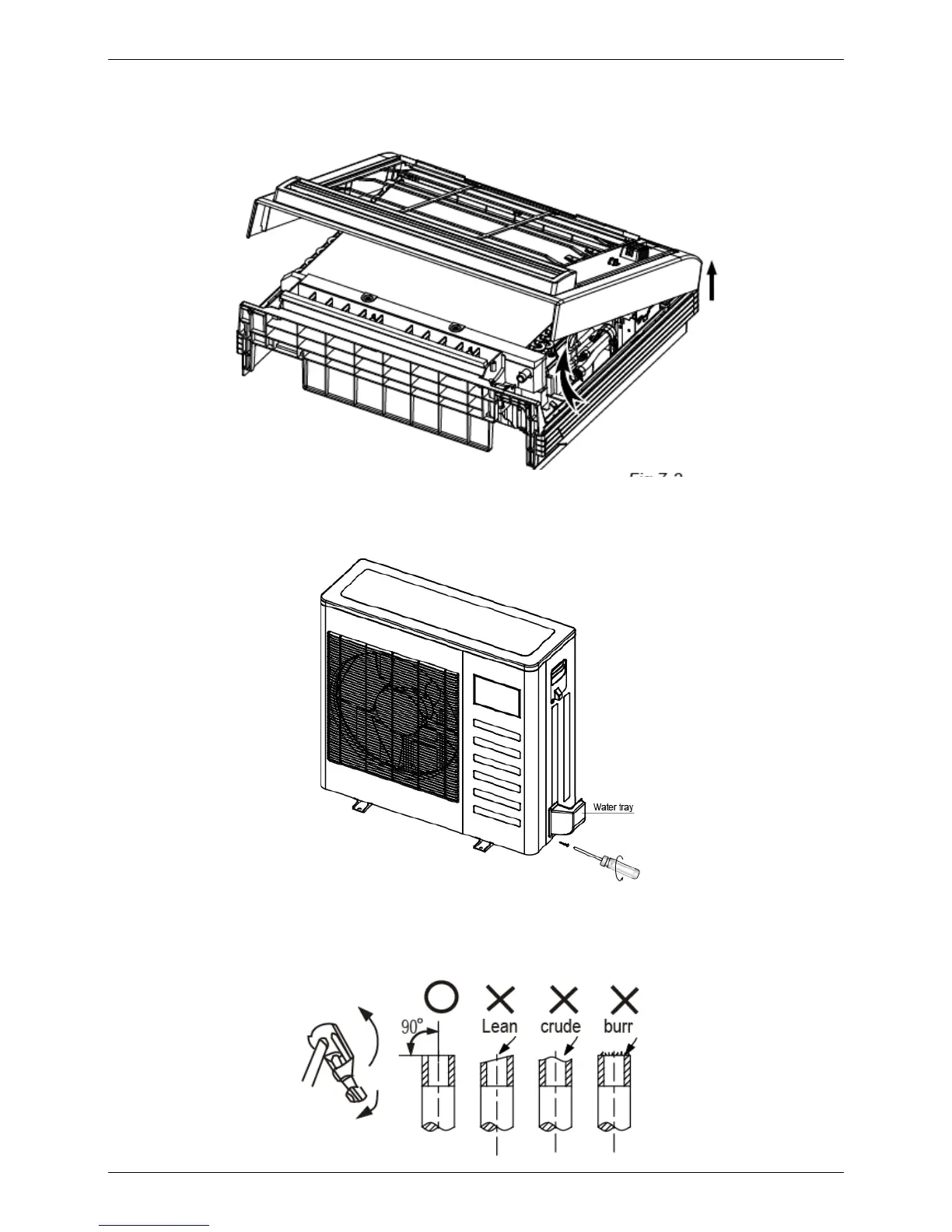

3. Remove the face plate
Remove the four screws.
Opening bottom of face plate for a angle that is 30 degree, then the top of face plate will be take up.
How to take outdoor unit apart to connect the pipes
Remove the water tray
How to connect the pipes
1. Flaring:
Cut a pipe with a pipe cutter.

Midea MFA-12HRN1 Specifications

General

Brand	Midea
Model	MFA-12HRN1
Category	Air Conditioner
Language	English
