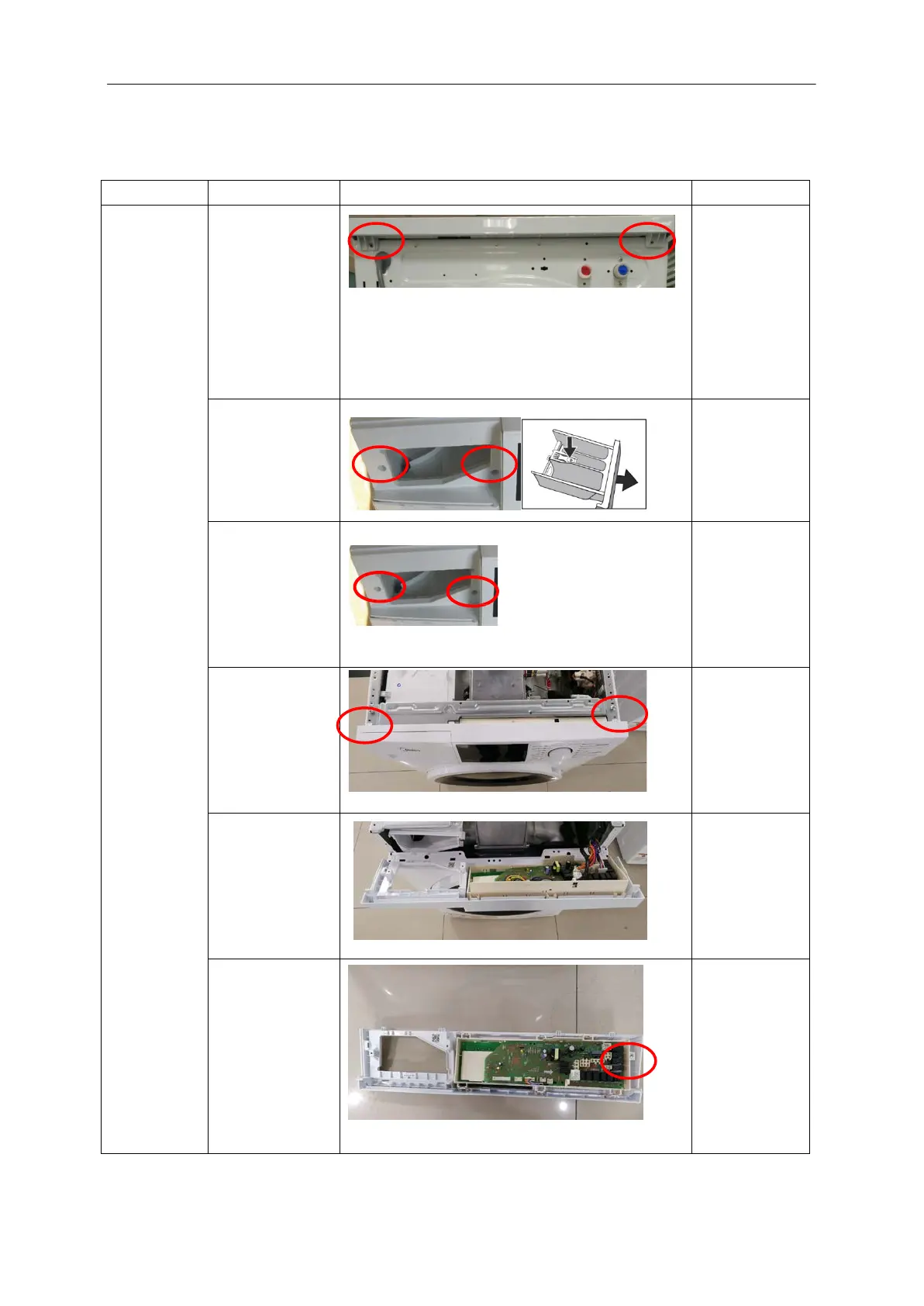

5. HOW TO DISASSEMBLY THE UNIT
What’s for
Steps
Description
Tools needed
Check and
Replace the
PCBs
1.1
Remove the
Top Cover
Assembly
Disassemble the two screws fixing the Top
Cover Assembly on the back of the unit.
Slide the Top Cover backwards to remove.
Phillip
screwdriver
1.2
Remove the
Drawer
Assembly
No tools
needed
1.3
Disconnect the
Control Panel
Subassembly
and drawer
Remove the two screws fixing the drawing.
Phillip
screwdriver
1.4
Remove the
Control Panel
Subassembly
Remove the two screws fixing the Control.
Phillip
screwdriver
1.5
Disconnect the
Control Panel
Subassembly
and the body
Take care the slots fixing the Control.
No tools
needed
1.6
Remove the
PCBs from the
Control Panel
Subassembly
Remove the five screws fixing the PCBs.
Phillip
screwdriver
