Midea MGA-D16/SN1

R410A Mini Split Chiller 50Hz MCAC-ATSM-2014-01
14

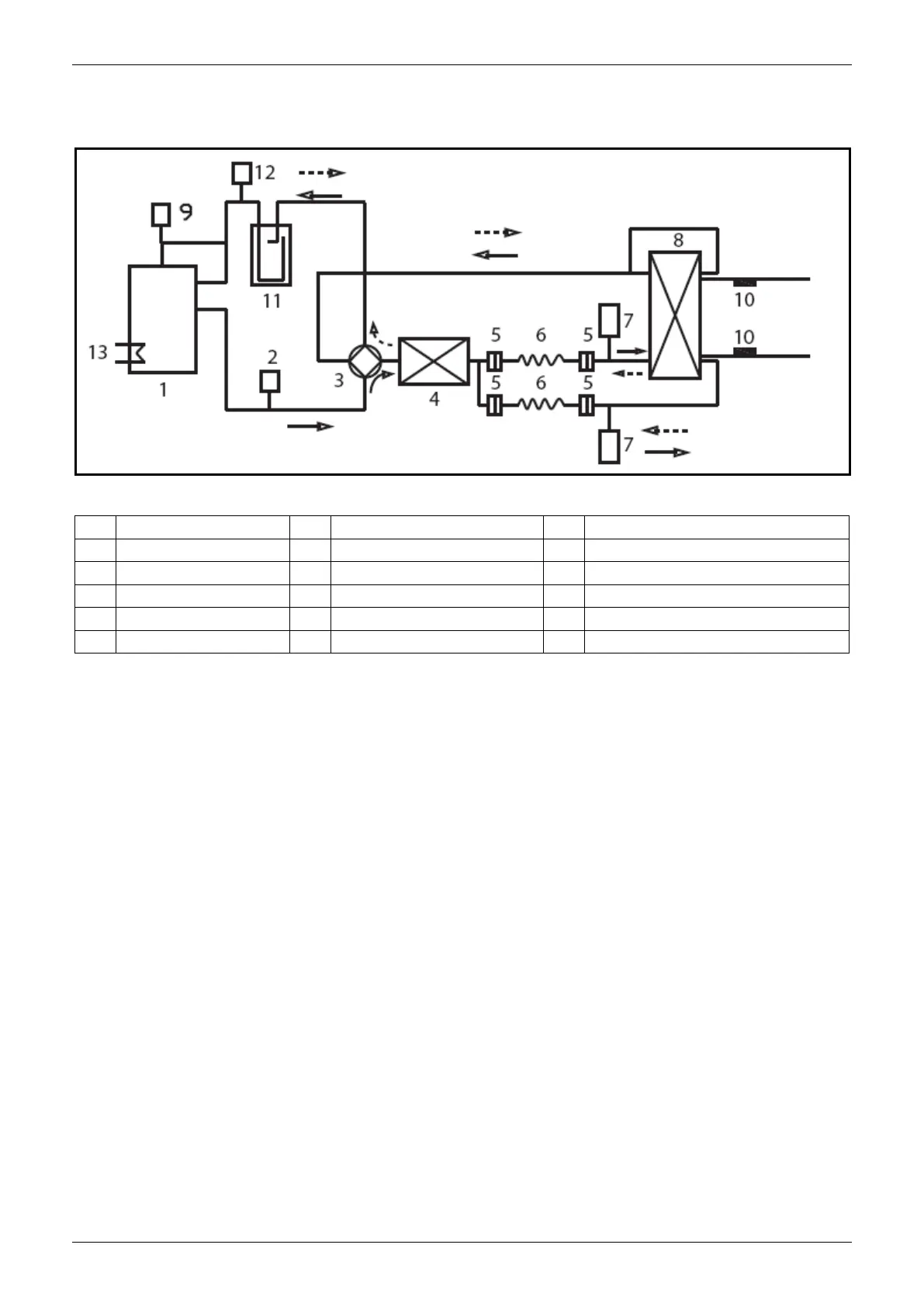

9. Piping Diagram
Remark:
No.
Name
No.
Name
No.
Name
1
Compressor
6
Capillary
11
Liquid receiver
2
High pressure switch
7
Liquid receiver
12
Low pressure switch
3
4 -way valve
8
Plate heat exchanger
13
Crankcase heater
4
Condenser
9
PWM valve
5
Filter
10
Water temperature sensor
