15.3.2 CCM10 LCD Touch Screen (optional)
It can control 8 units, 16 compressors. Control function as Query/Mode setting/Lock/Weekly timer
setting/Power failure memory.
Mechanical installation
LCD touch screen normally installed in the casing of unit or the front board of console. Before installation,
you should drill a mounting hole at unit casing or the front board of console firstly; and then, the thickness of

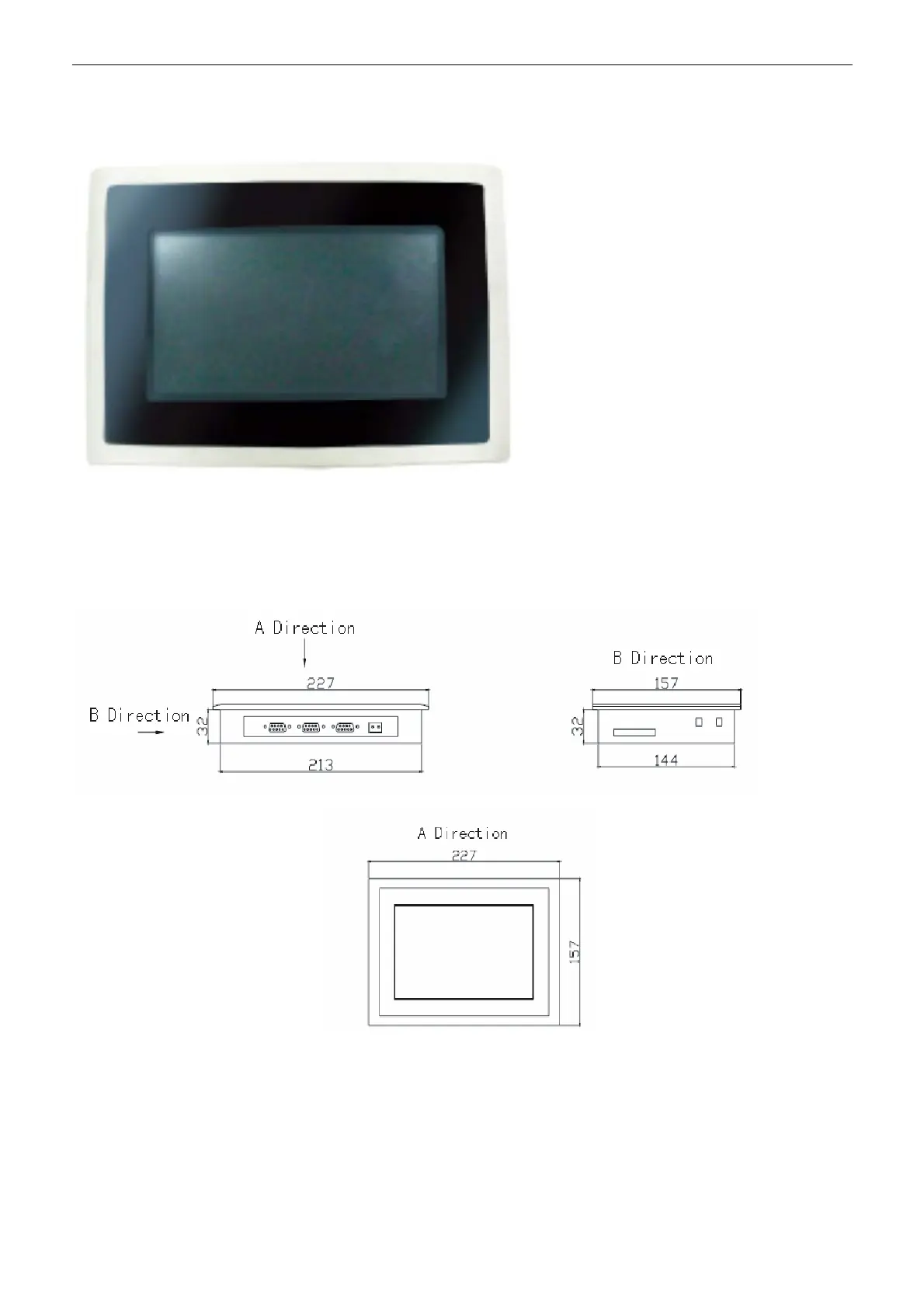

the front not exceeds than 6mm; thirdly, LCD touch screen cannot be drilled. See following figure for outline
dimension of the screen and size of drilled hole.
For guarantee the defective-proof level of the front board maintains at IP65, when installing you should
install a gasket correctly as following processes:
Mount LCD into mounting hole from forehead of the casing or console. Fix LCD up and ensure it would not
fall down.
Insert the attached hooks to corresponding flutes of LCD. Flutes sites are arrowed as following figure.
