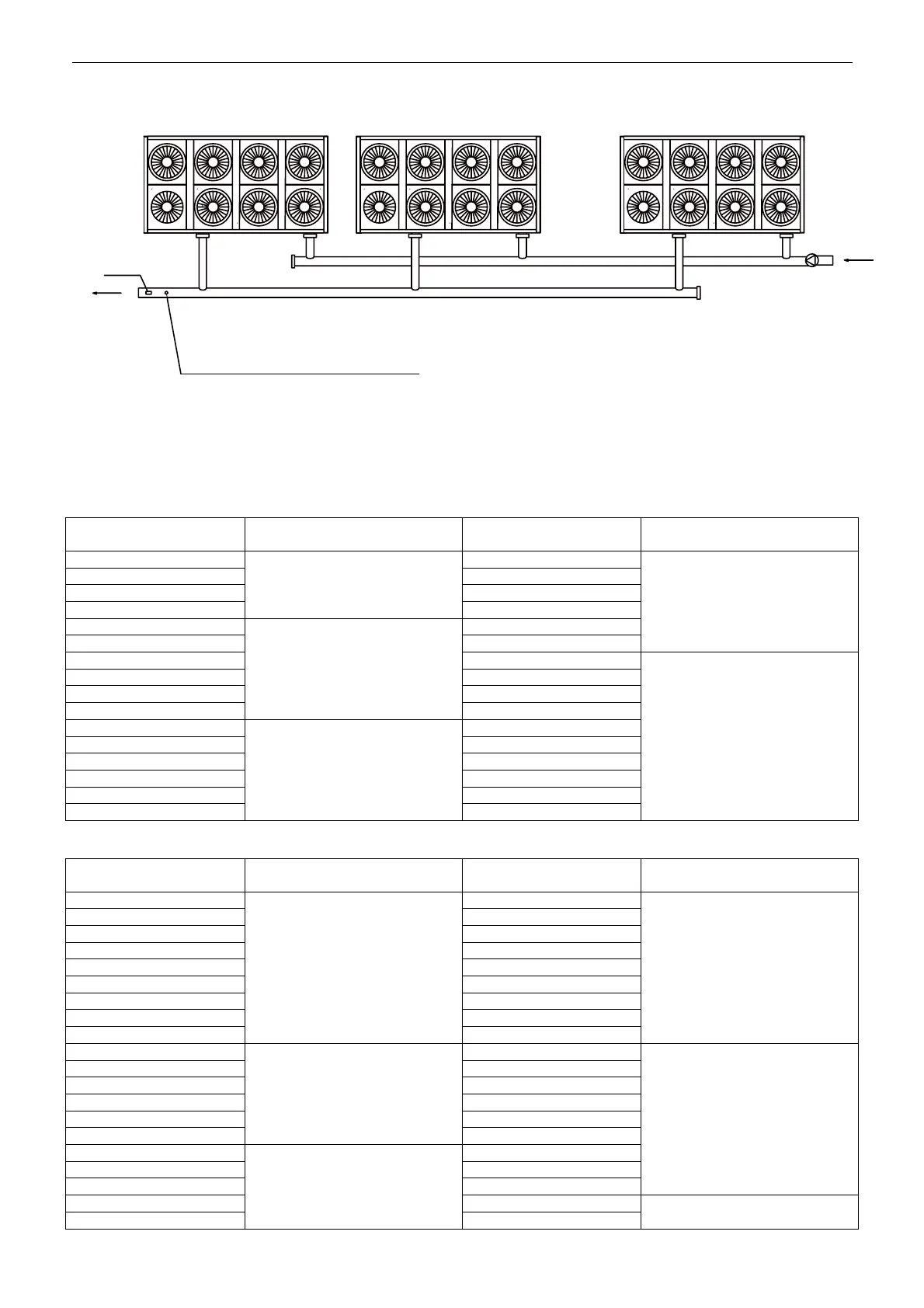

MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
125
No.1 unit
No.0 address(main unit)
No.n unit (n≤8)No.2 unit
No.2 address No.(2n-2) address
No.1 address No.3 address No.(2n-1) address
Pump
Drill dead hole at the position, and move
the total effluent temperature sensor at
No.0 address to the position
Water flow switch
Notice:
1) For installation of multi-module, the most modules should be not more than 8 modular units.
2) For installation of multi-module, please drill a dead hole(Φ9mm) at the total water outlet pipeline,
and move the total water effluent temperature sensor at No.0 address to the hole.
Table of diameter parameters of main inlet and outlet pipes for 25/30KW module
Unit model x quantity
Total inlet and outlet water
pipe diameter
Unit model x quantity
Total inlet and outlet water
pipe diameter
25×1
DN40
25×9
DN100
30×1 30×9
25×2 25×10
30×2 30×10
25×3
DN65
25×11
30×3 30×11
25×4 25×12
DN125
30×4 30×12
25×5 25×13
30×5 30×13
25×6
DN80
25×14
30×6 30×14
25×7 25×15
30×7 30×15
25×8 25×16
30×8 30×16
Table of diameter parameters of main inlet and outlet pipes for 55/60/65KW module
Unit model x quantity
Total inlet and outlet water
pipe diameter
Unit model x quantity
Total inlet and outlet water
pipe diameter
55×1
DN65
55×9
DN125
60×1 60×9
65×1 65×9
55×2 55×10
60×2 60×10
65×2 65×10
55×3 55×11
60×3 60×11
65×3 65×11
55×4
DN80
55×12
DN150
60×4 60×12
65×4 65×12
55×5 55×13
60×5 60×13
65×5 65×13
55×6
DN100
55×14
60×6 60×14
65×6 65×14
55×7 55×15
DN200
60×7 60×15
less than 8 modules
