Midea MGB-D65W/RN1

MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
39

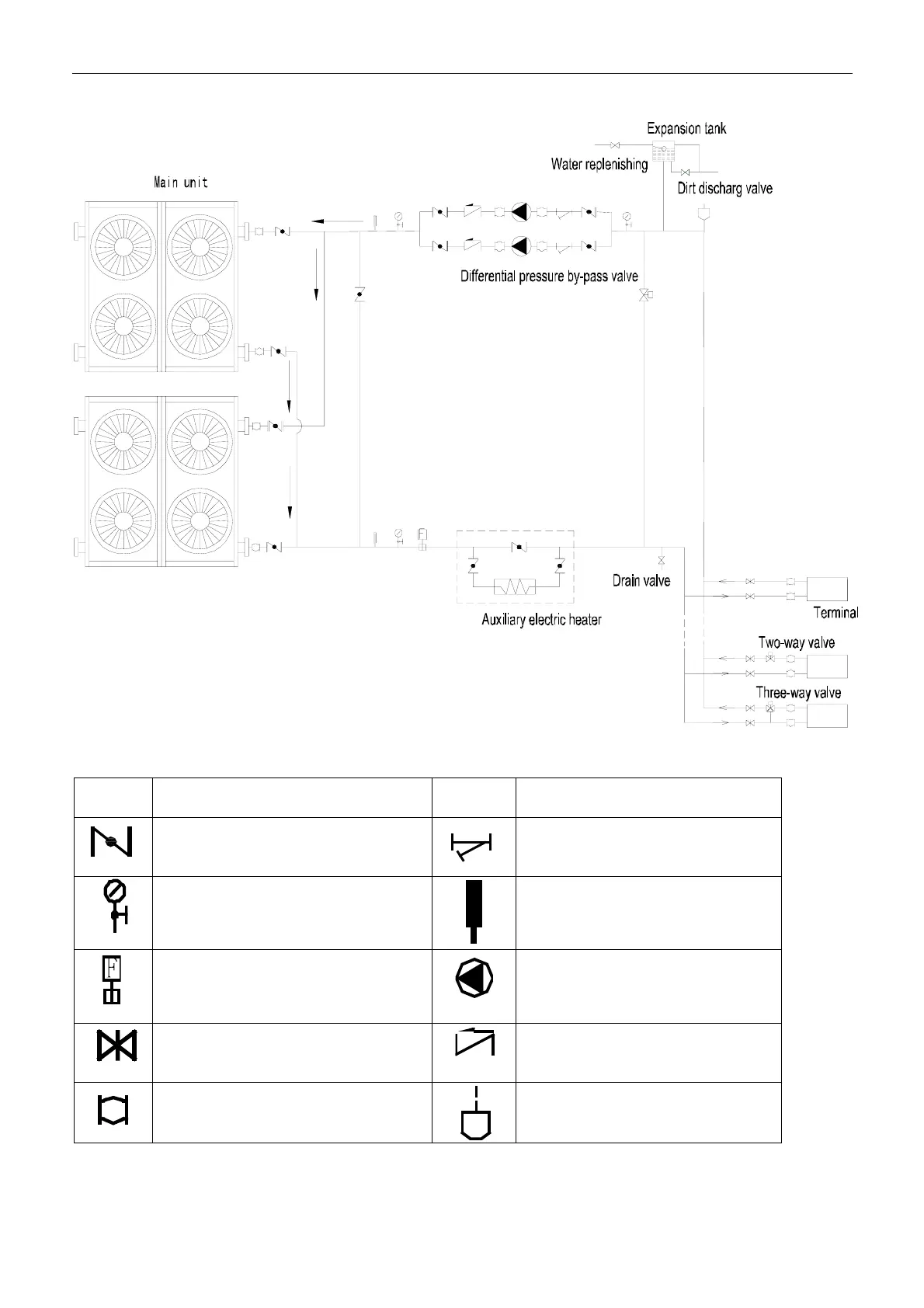

6.3 130KW module water pipeline sketch drawing
The table below describes the symbols.
Symbol Symbol explanation Symbol Symbol explanation
Stop valve Y-shaped filter
Pressure gauge Thermometer
Water flow switch Circulating pump
Gate valve Check valve
Flexible joint Automatic discharge valve
