Midea MGB-F30W/RN1

MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
113
250kw module
Inputofairflow
Inputofairflow
A
BC
D
Input of airflow
Input of airflow
E

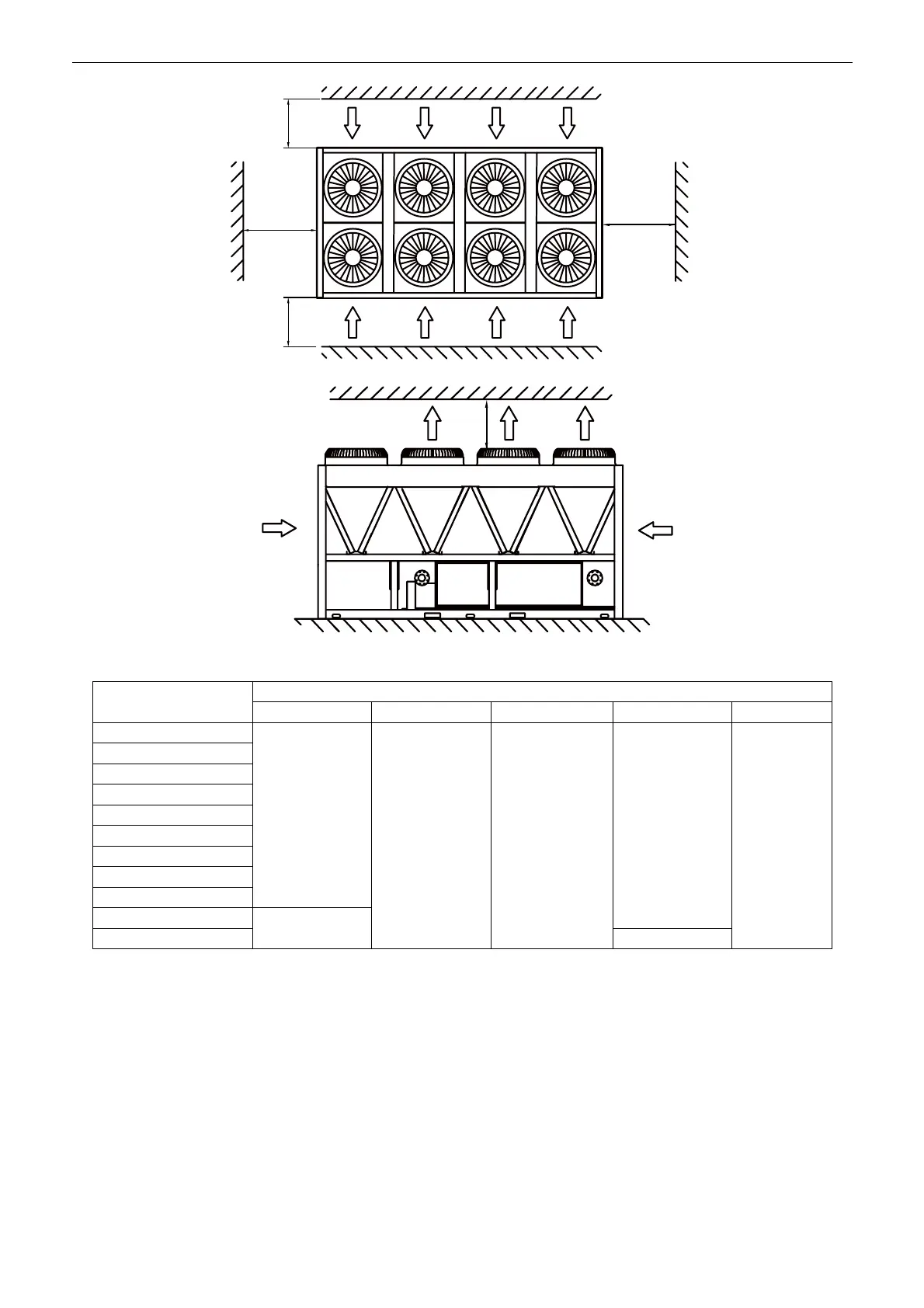

The recommend space parameter
Module
Installation space (mm)
A B C D E
MGB-F(D)25W/RN1
≥1500
≥2000 ≥2000
≥1500
≥8000
MGB-F(D)30W/RN1
MGCSL-F30W/RN1
MGCSL-D30W/RN1
MGB-F55W/RN1
MGB-F60W/RN1
MGB-F65W/RN1
MGB-D65W/RN1
MGB-F130W/RN1
MGB-F185W/RN1
≥2000
MGBT-F250W/RN1 ≥2000
● Space requirements for parallel installation of multiple modular units.
To avoid back flow of the air in the condenser and operational faults of the unit, the parallel installation of
multiple modular units can follow the direction A and D as shown in the figure above, the spaces between
the unit and the obstacle are given in the figure above, and the space between adjacent modular units
should not be less than 300mm; the installation can also follow the direction B and C as shown in the figure
above, the spaces between the unit and the obstacle are given in the figure above, and the space between
adjacent modular units should not be less than 600mm; the installation can also follow the direction
combination of A and D, and B and C, the spaces between the unit and the obstacle are given in the figure
above, the space between adjacent modular units in the direction A and D should not be less than 300mm,
and the space between adjacent modular units in the direction B and C should not be less than 600mm.
If the spaces mentioned above cannot be met, the air passing from the unit to the coils may be restricted, or
back flow of air discharge may occur, and the performance of the unit may be affected, or the unit may fail to
operate.
