MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
119

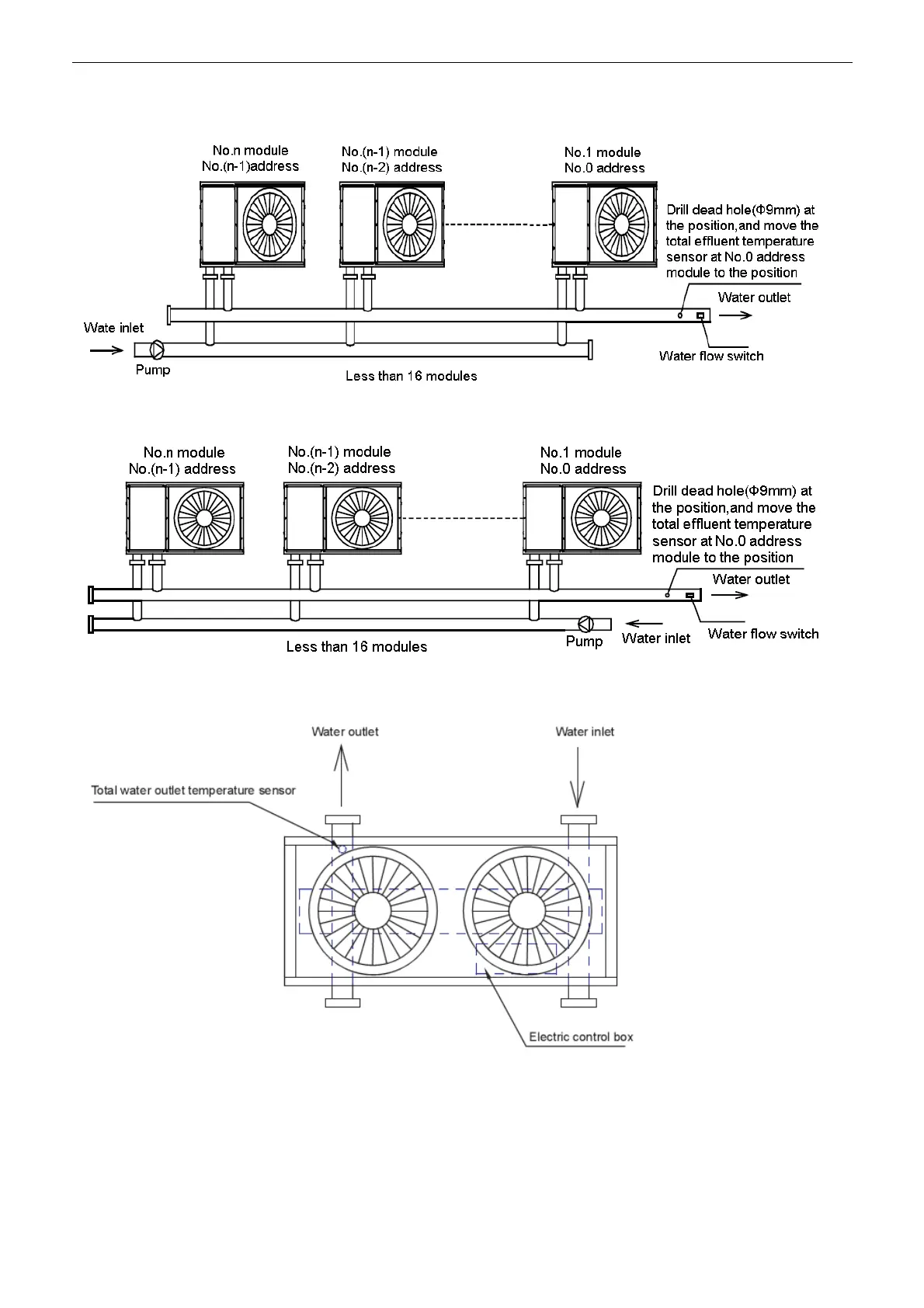

Installation of multi-module water system pipeline
1) Installation mode I (recommended installation mode)
n :the module quantity, max 16
2) Installation mode II
n :the module quantity, max 16
12.2.5 Installation of water system pipeline for 55/60/65KW module
Installation of single-module water system pipeline
Installation of multi-module water system pipeline
1) Installation mode I (recommended installation mode)
n :the module quantity, max 6
To Next Page
