Midea MGB-F30W/RN1

Air-cooled modular chiller unit 50Hz MCAC-ATSM-2011-12
82

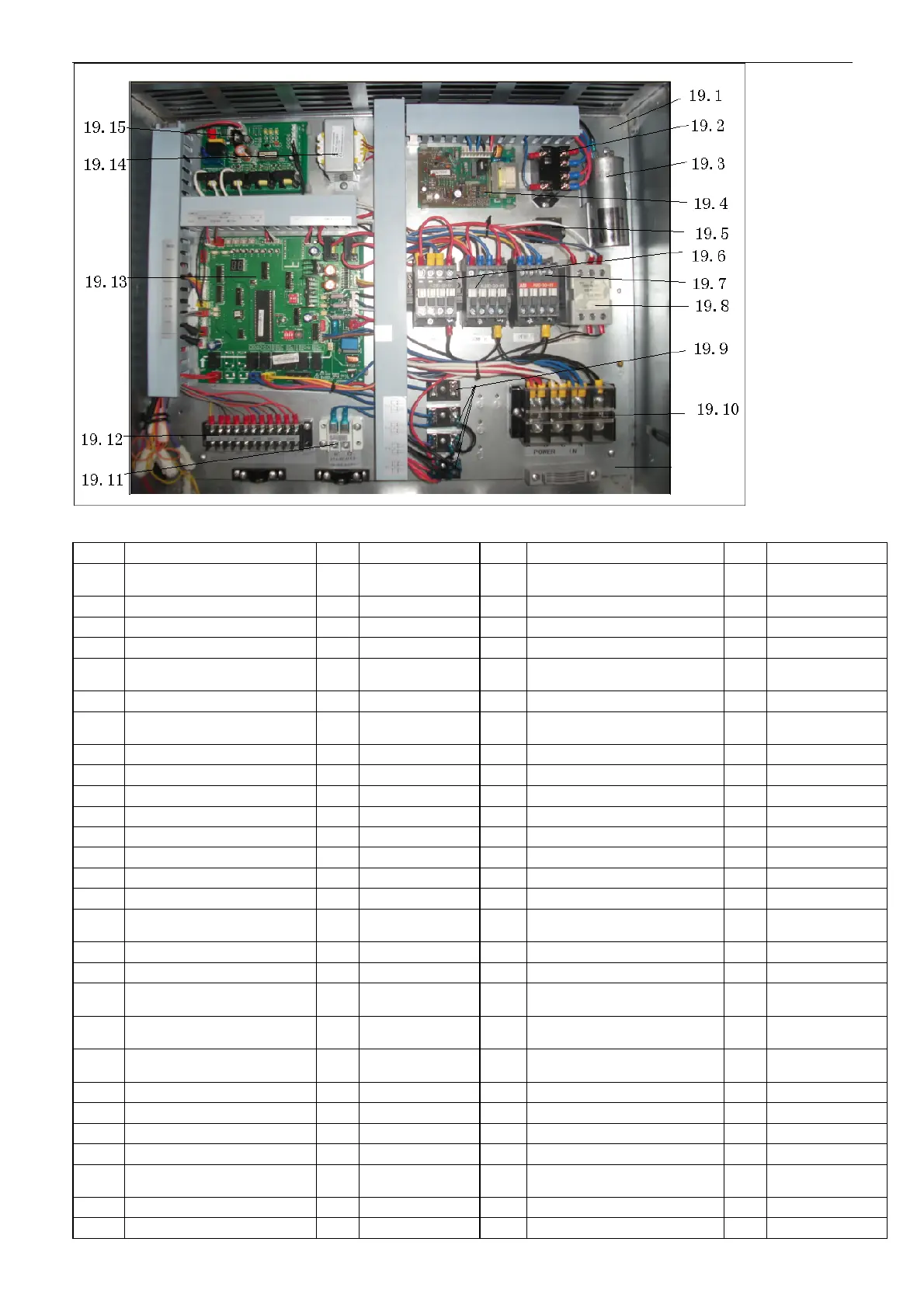

No. Part Name Qty BOM code No. Part Name Qty BOM code
1
Right seal plate condenser
components D
1 201290190122 23
Output pipe ass'y of A unit
double-pipe
1 201690191407
2
A condenser components
1 201590190014 23.1
Pressure controller
1 202301800835
3
Motor holder
2 201295010078 24
Input pipe ass'y II of A unit
1 201690191414
4
Cover
2 201295300100 24.1
Strainer
1 201600900040
5
C components of the left
seal plate condenser
1 201290190124 25
Input pipe fixed base of
double pipe
1 201290190288
6
Part B condenser
1 201590190012 26
Input pipe ass'y of A unit
1 201690191416
7
A seal plate condenser
components of the right
1 201290190125 26.1
Electronic expansion valve
1 201601300018
8
Supporting board
2 201290190204 26.2
Strainer
1 201600900040
9
Cover board
2 201295300101 27
Input pipe ass'y II of B unit
1 201690191409
10
Cover
1 201295300098 27.1
Strainer
1 201600900040
11
Drainage pan holder
2 201275900027 28
Input pipe ass'y I of B unit
1 201690191411
12
Suction pipe ass'y A
1 201690191112 28.1
Electronic expansion valve
1 201601300018
12.1
Pipe joint
1 201601200004 28.2
Strainer
1 201600900040
13
Accumulator cylinder
2 201601010504 29
Safety valve
1 201604100114
14
Compressor
1 201401410020 30
Double pipe heat exchanger
1 201700202000
15
Digital compressor
1 201401400280 31
Replenishing pipe's fixed
base
1 201290190210
16
A unit four-way valve ass'y
1 201690191405 32
Water pump
1 202400600824
16.1
4-way valve
1 201600600111 33
Installation beam of pump
2 201290190211
16.2
4-Ways valve solenoid
1 201600600103 34
Welding support of hydraulic
module
1 201290190212
16.3
Muffler
1 201601000031 35
Connection part of hydraulic
module support
1 201290190209
16.4
Strainer
1 201600900056 36
Stainless steel corrugated
pipe
1 201290190286
16.5
Pipe joint
3 201601200004 37
Inlet pipe ass'y of pump
1 201690191422
16.6
Pressure controller
1 202301800835 37.1
Y shape filter
1 201600900815
17
B unit 4-way valve ass'y
1 201690191151 37.2
Water charge valve
1 201601600104
17.1
4-way valve
1 201600600111 38
Target flow-volume controller
1 202301820013
17.2
4-Ways valve solenoid
1 201600600103 39
Outlet pipe welding ass'y of
pump
1 201690191418
17.3
Muffler
1 201601000031 40
Expansion vessel
1 201601300517
17.4
Strainer
1 201600900056 41
Welding parts water tray
1 201290190119
