Midea MGB-F60W/RN1

Air-cooled modular chiller unit 50Hz MCAC-ATSM-2011-12
36
6. Piping diagram

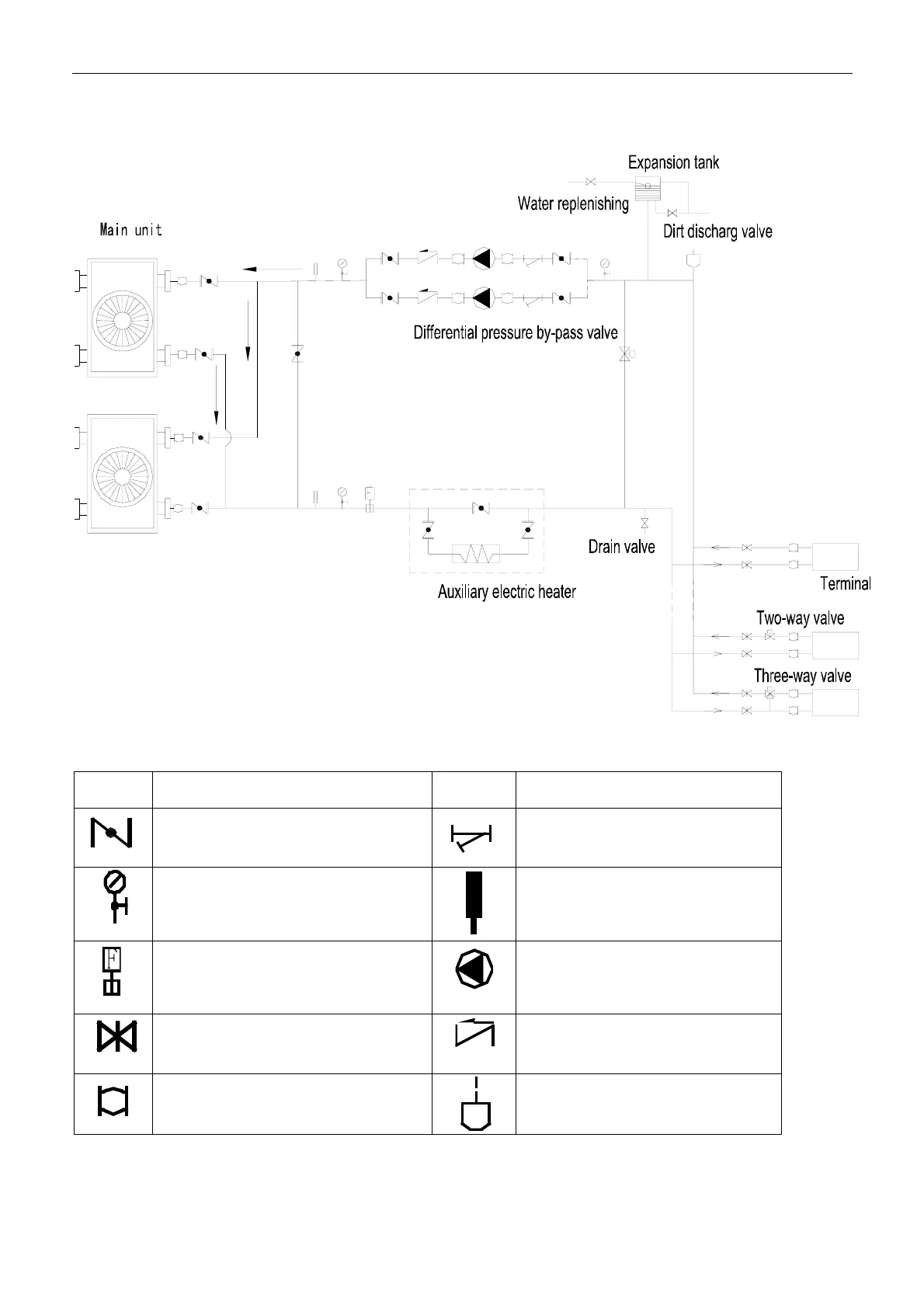

6.1 25/30KW module water pipeline sketch drawing
The table below describes the symbols.
Symbol Symbol explanation Symbol Symbol explanation
Stop valve Y-shaped filter
Pressure gauge Thermometer
Water flow switch Circulating pump
Gate valve Check valve
Flexible joint Automatic discharge valve
