MCAC-ATSM-2011-12 Air-cooled modular chiller unit 50Hz
41

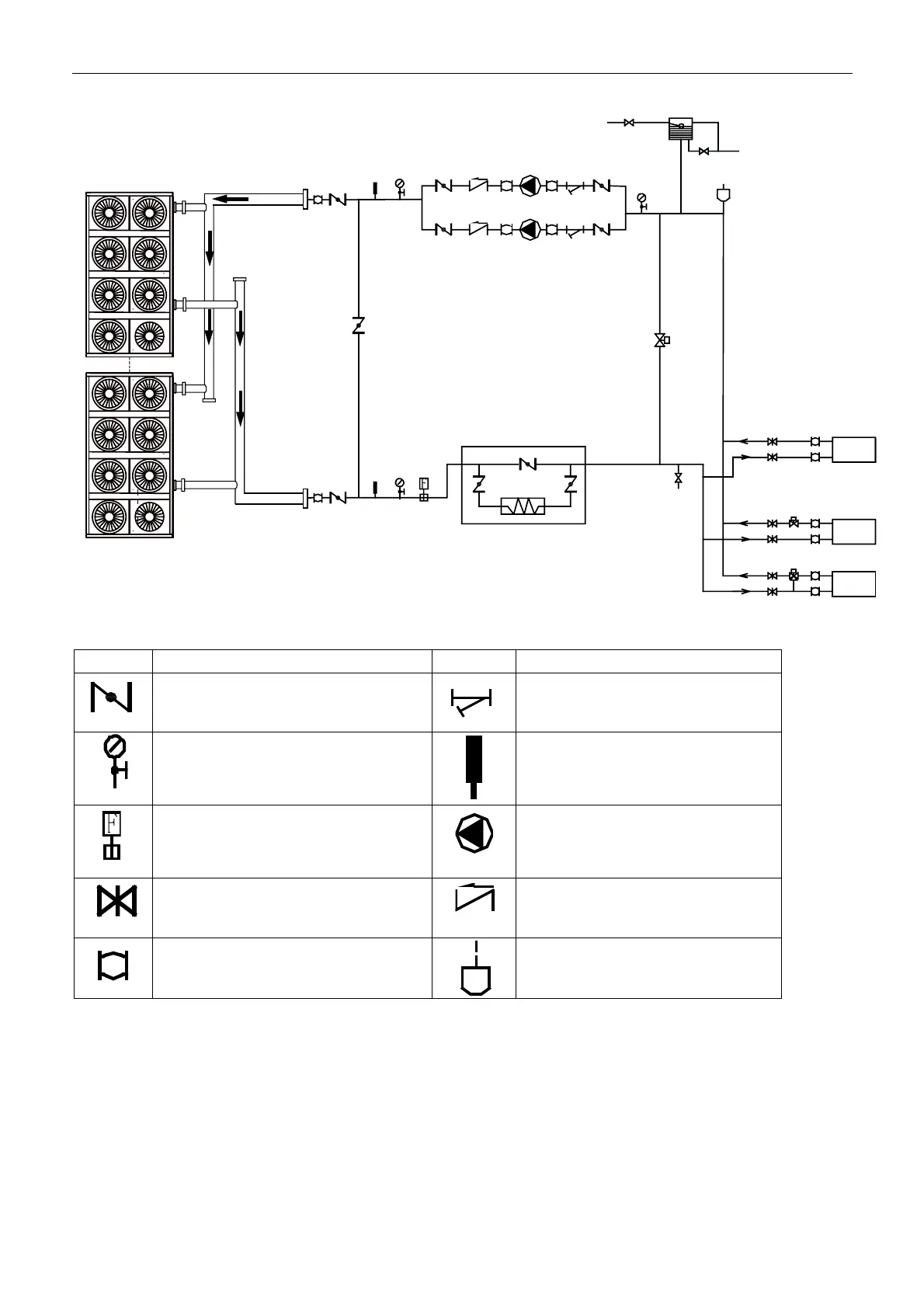

6.5 250KW module water pipeline sketch drawing
Main unit
Expansion tank
Water replenishing
Dirt discharge valve
Differential pressure by-pass valve
Drain valve
Two-way valve
Three-way valve
Terminal
Auxiliary electric heater
The table below describes the symbols.
Symbol Symbol explanation Symbol Symbol explanation
Stop valve
Y-shaped filter
Pressure gauge
Thermometer
Water flow switch
Circulating pump
Gate valve
Check valve
Flexible joint
Automatic discharge valve
