OUTLINE OF FUNCTIONS
This wired controller provides the following functions:
1). Connect with the outdoor unit through the terminals P, Q and E. Connect with the upper unit through the
terminals X, Y and E(reserved).Connect with other wired controllers through the terminals P, Q and E.
2). Set the action mode through the keypad operation.
3). Provide the LCD display function.
4). Provide the timing startup function.
5). Real-time clock function (the wired controller inner place 3V battery)
When the wired controller is powered on, the LCD will display the current time; if it is powered off, the clock
will not be displayed, then it will be auto-updated when the wired controller is re-power on.
Appendix

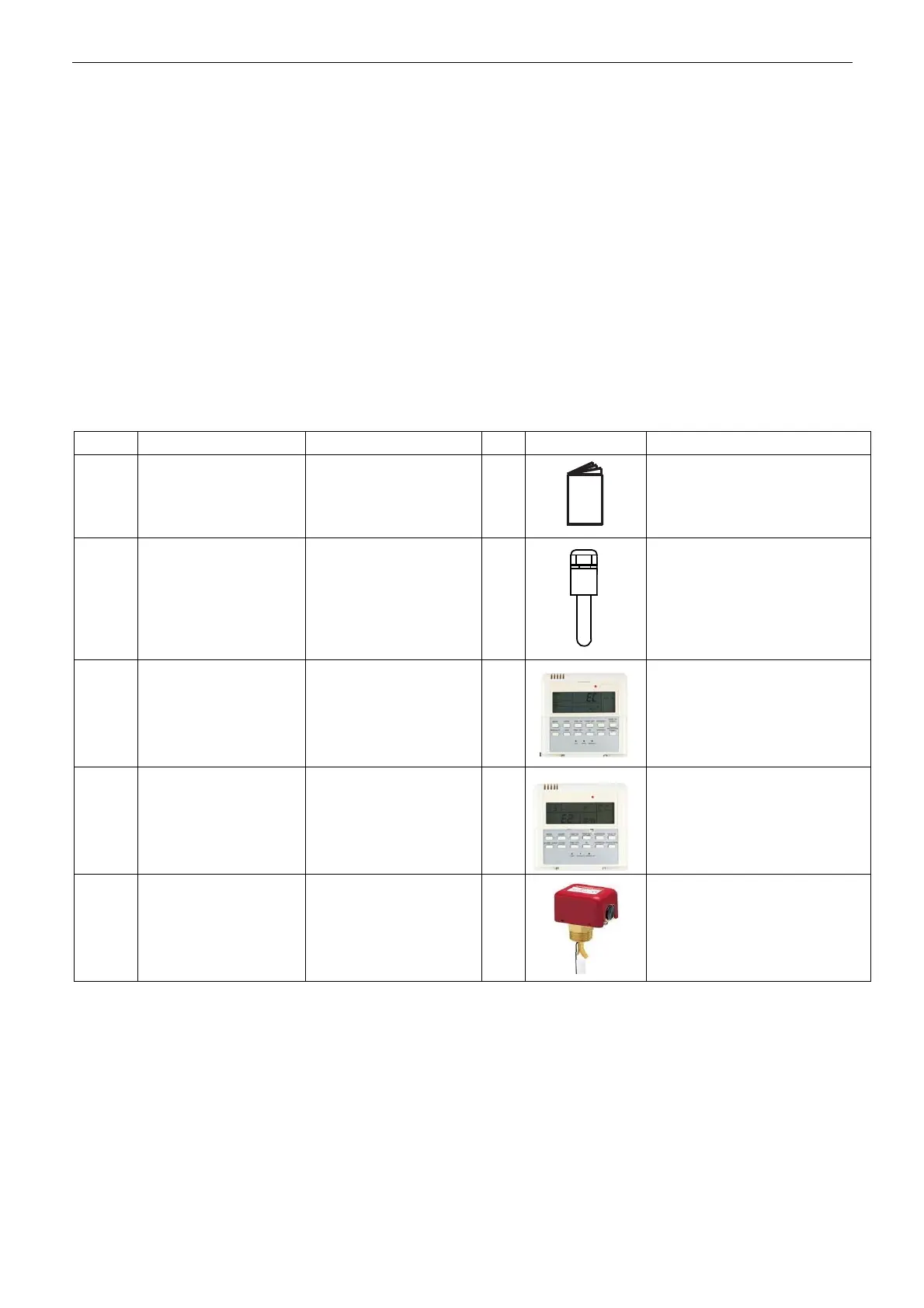

1. Accessories
Item Name of accessory Type Qty Shape Usage
1
Installation and owner's
manual
--- 1 Installation and using instruction.
2
The total outlet water
temperature test kit
LSQWRF65M/A-C.ZL.10 1
Inspection the temperature of
total outlet water.
3 Wired controller KJR -08B/BE 1 Control the system.
4 Wired controller KJR -120A/MBE 1
Control the system.(Only for
MGCSL-F(D) 30W/RN1,
MGB-D65W/RN1,
MGBT-F250W/RN1)
5 Water flow switch WFS-1001-H 1
Anti-freezing protection (Only for
200KW)
