MCAC-UTSM-2014-03 R410A 380~415V 3Ph 50Hz TempMaker Series Split AC
24

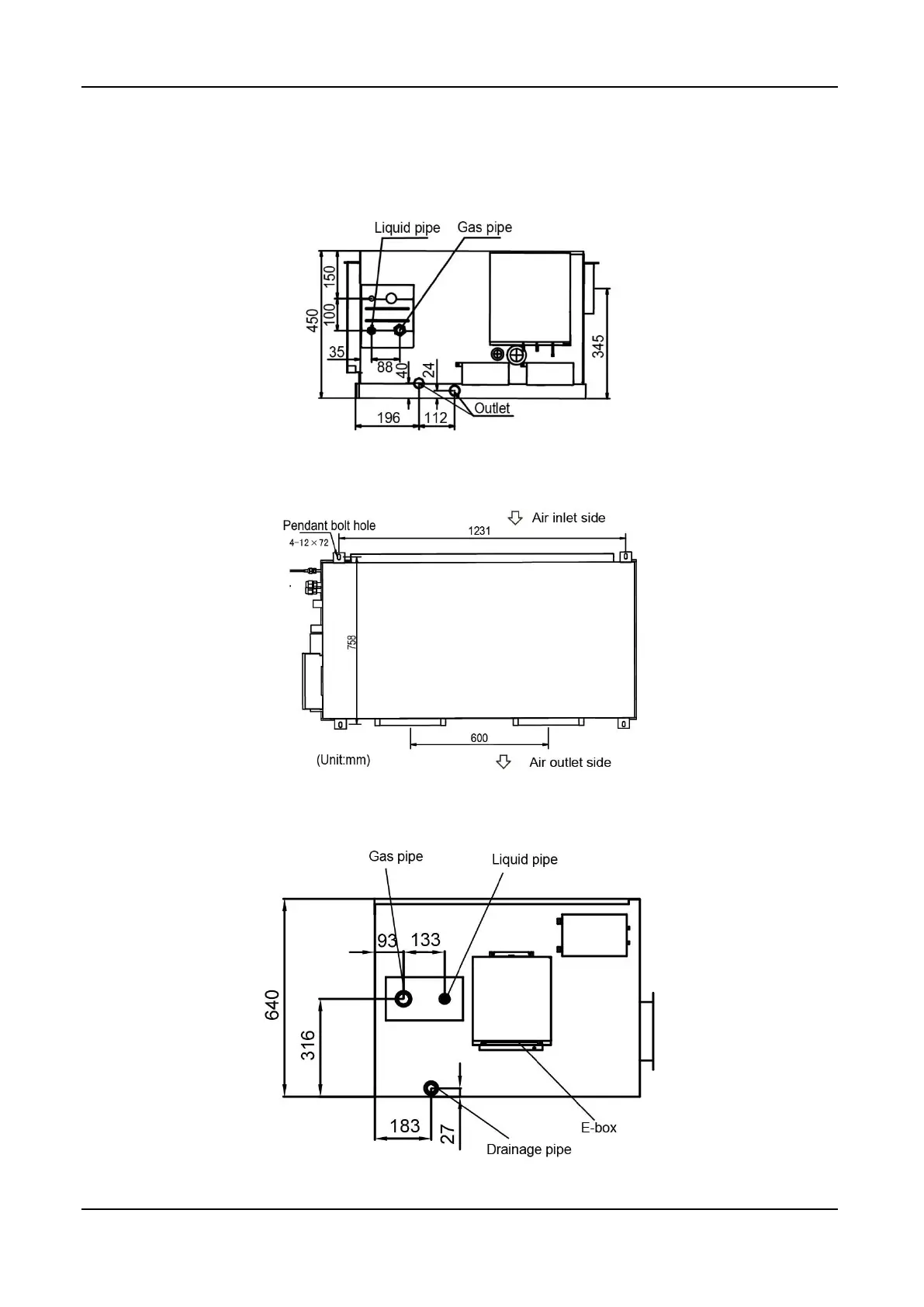

3. Dimensions (Unit: mm)
MHB-76HWN1, MHB-96HWN1
Pipe side view
Top view
MHA-150HWN1, MHA-192HWN1
Pipe side view
