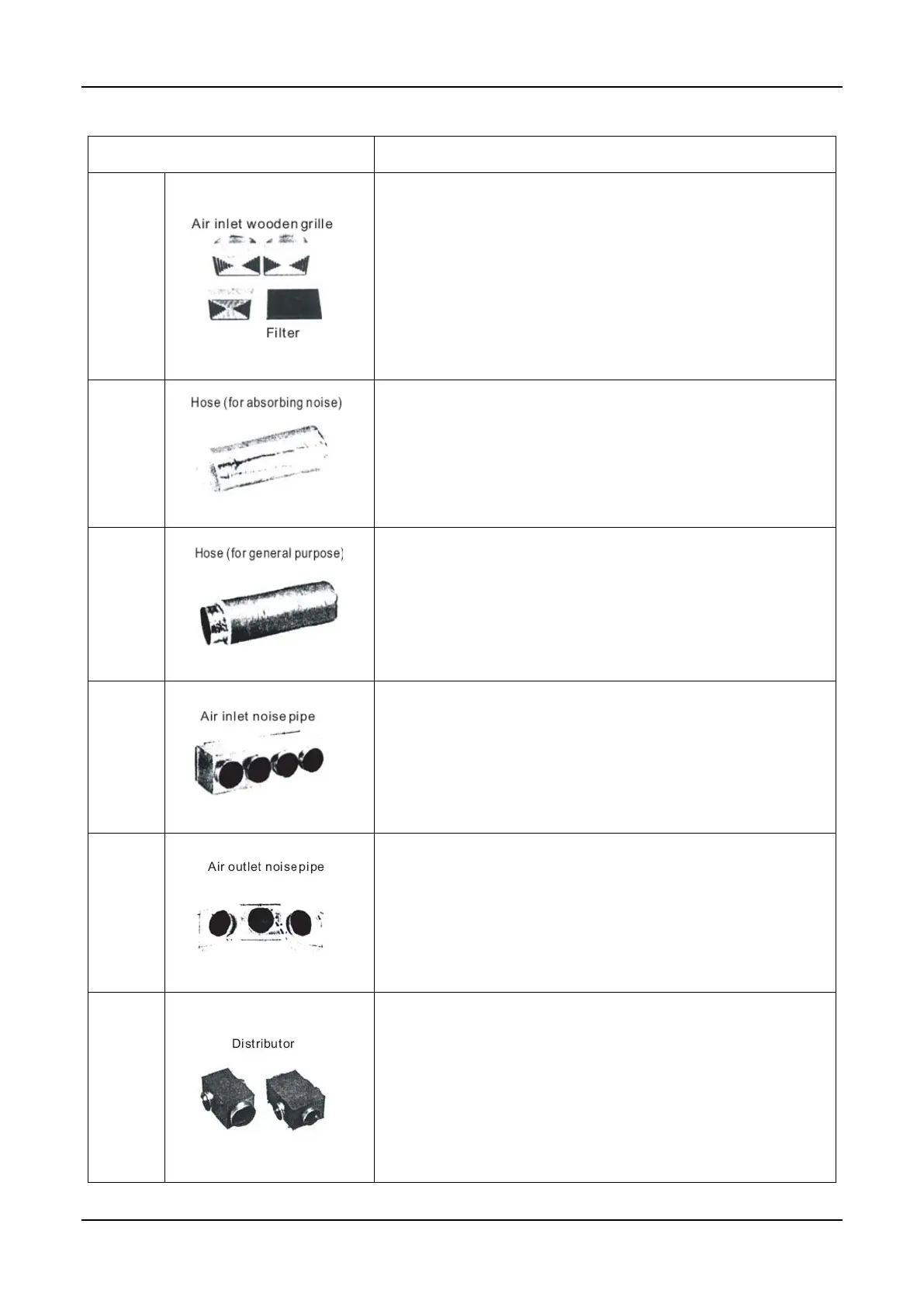

Methods of configuring and selecting installation
Characteristics, advantages and other contents
1. Install the filter at the main body grille in case the store height is low,
and at the main body of the indoor unit in case the store height is high.
2. It cleans conveniently at the time of installing/uninstalling the filter.
3. The button structure is easy to install and uninstall.
1. For purpose of air inlet.
2. Must adopt fire-resistant materials.
3. The heat insulation material must be glass wool.
1. For purpose of air outlet.
2. Must adopt fire-resistant materials. (Those materials other materials.
(Those materials other shall not be applied)
3. The heat insulation material must be glass wool.
1. Install the unit at the air inlet so that the air flows smoothly and the
noise is lower.
2. The noise value varies with the length.
3. The hose joint should be bent lest detachment of the pipe.
1. Install the unit at the air outlet so that the air flows smoothly and the
noise is lower.
2. The noise value varies with the length.
3. The hose joint should be bent lest detachment of the pipe.
1. Install the unit at the air outlet so that the air flows smoothly and the
noise is lower.
2. Select 1BY2 or 1BY3 according to the quantity of the diffusers.
3. The diffuser pipes should preferably have the same length after
branching, and the minimum length of the ventilation pipes is 5m.
