Midea M thermal Mono Service Manual

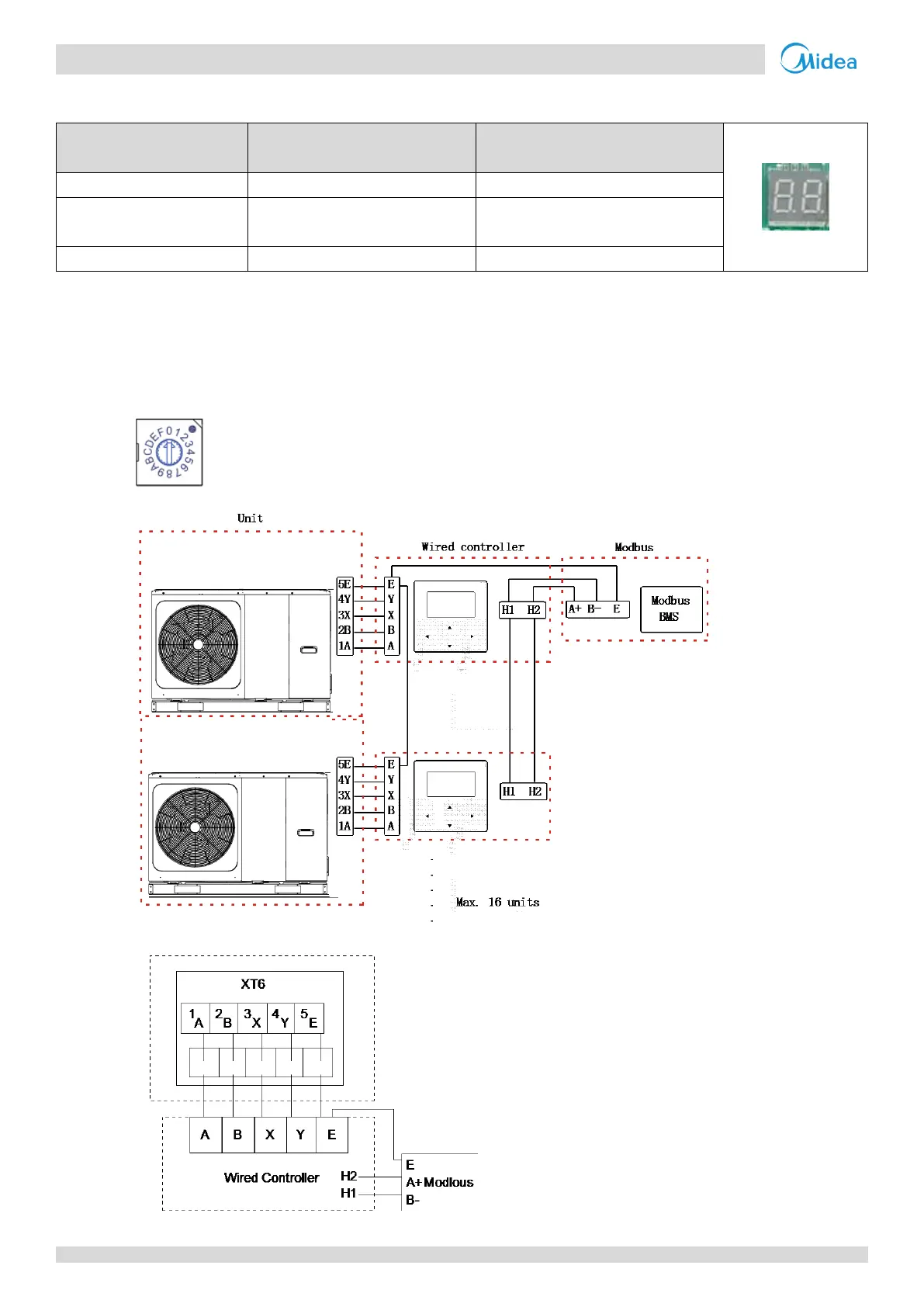

2.4 Digital Display Output
Table 4-2.9: Digital display output in different operating states
Outdoor unit state
Parameters displayed on hydronic
system DSP1
Parameters displayed on refrigerant
system DSP1
On standby
0
0
Normal operation
Leaving water temperature (°C)
Running speed of the compressor in
rotations per second
Error or protection
Error or protection code
Error or protection code
2.5 DIP Switch Settings (Modbus function will be available in 2020-5-30)
The rotating coded switch S3(0-F) on the main control board of hydraulic module is used for setting the Modbus
address. By defaulting the units have this coded switch positioned=0, but this corresponds to the Modbus address 16,
while the others positions correspond the number, e.g. pos=2 is address 2, pos=5 is address 5.
Figure 4-2.9 Rotating switch
Figure 4-2.10: Connection
Figure 4-2.11: Wiring
