Midea MHC-V4W/D2N8-B User Manual

M thermal Mono
202004 13
Part 2 - Component Layout and Refrigerant Circuits
3 Refrigerant Flow Diagrams
Heating and domestic hot water operation(4,6KW for example)

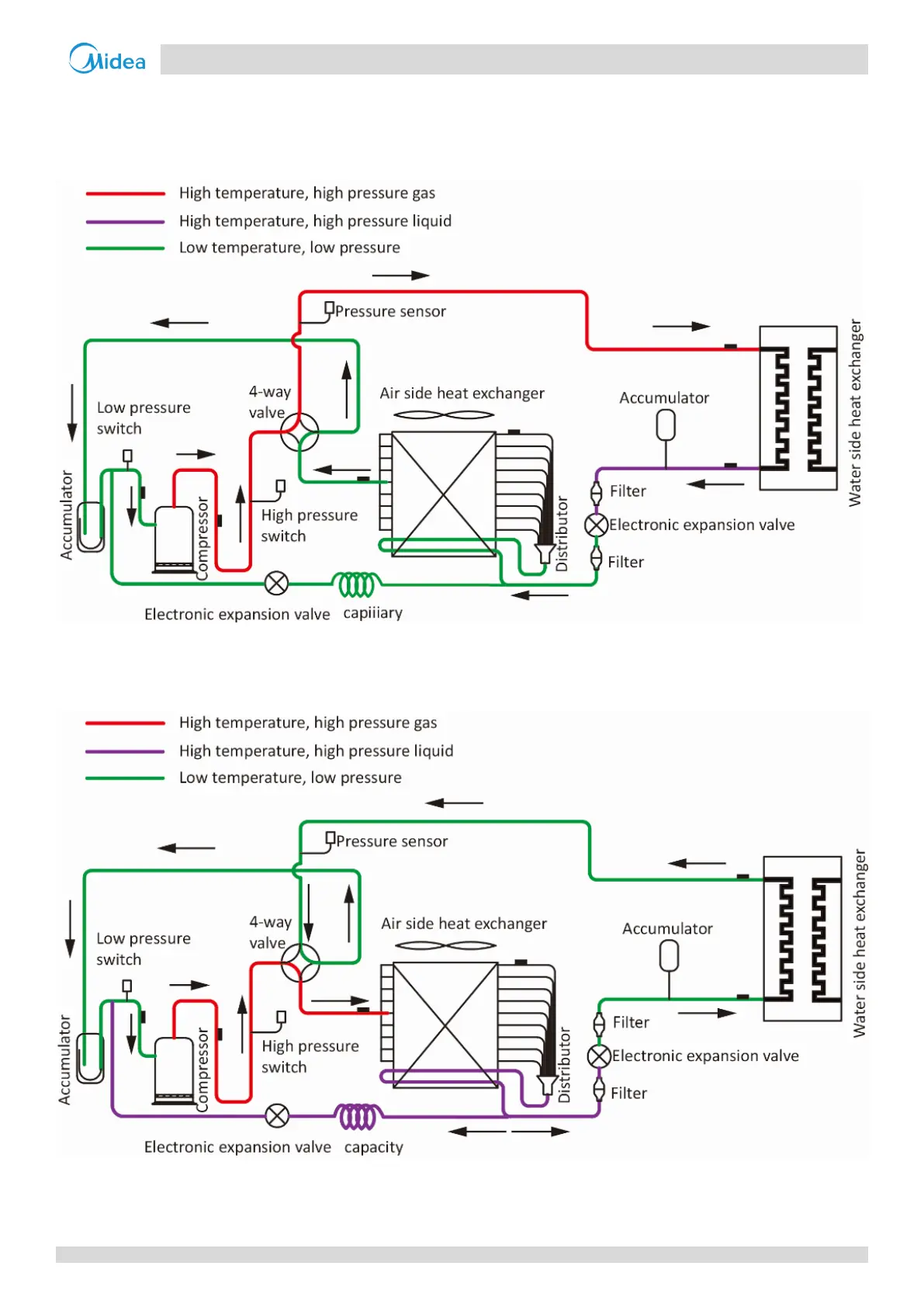

Figure 2-3.1: Refrigerant flow during heating or domestic hot water operation
Cooling and defrosting operation(4,6KW for example)
Figure 2-3.2: Refrigerant flow during cooling and defrosting operations
