Midea MHC-V4W/D2N8-B

M thermal Mono
6 202004
Midea M thermal Mono Service Manual
1 Layout of Functional Components
MHC-V4W/D2N8-B / MHC-V6W/D2N8-B

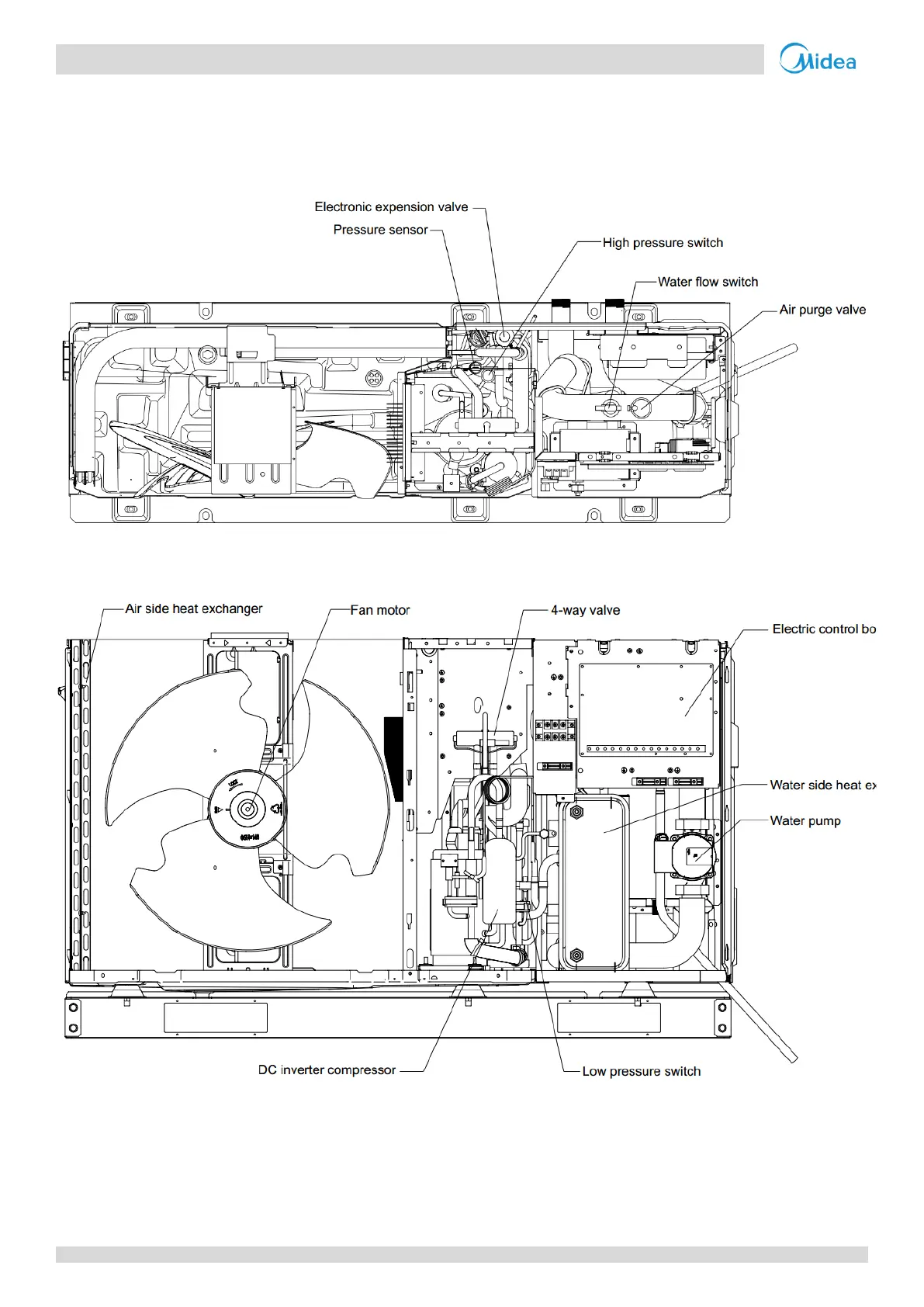

Figure 2-1.1: MHC-V4(6)W/D2N8-B top view
Figure 2-1.2: MHC-V4(6)W/D2N8-B front view
