Midea M thermal Mono Service Manual

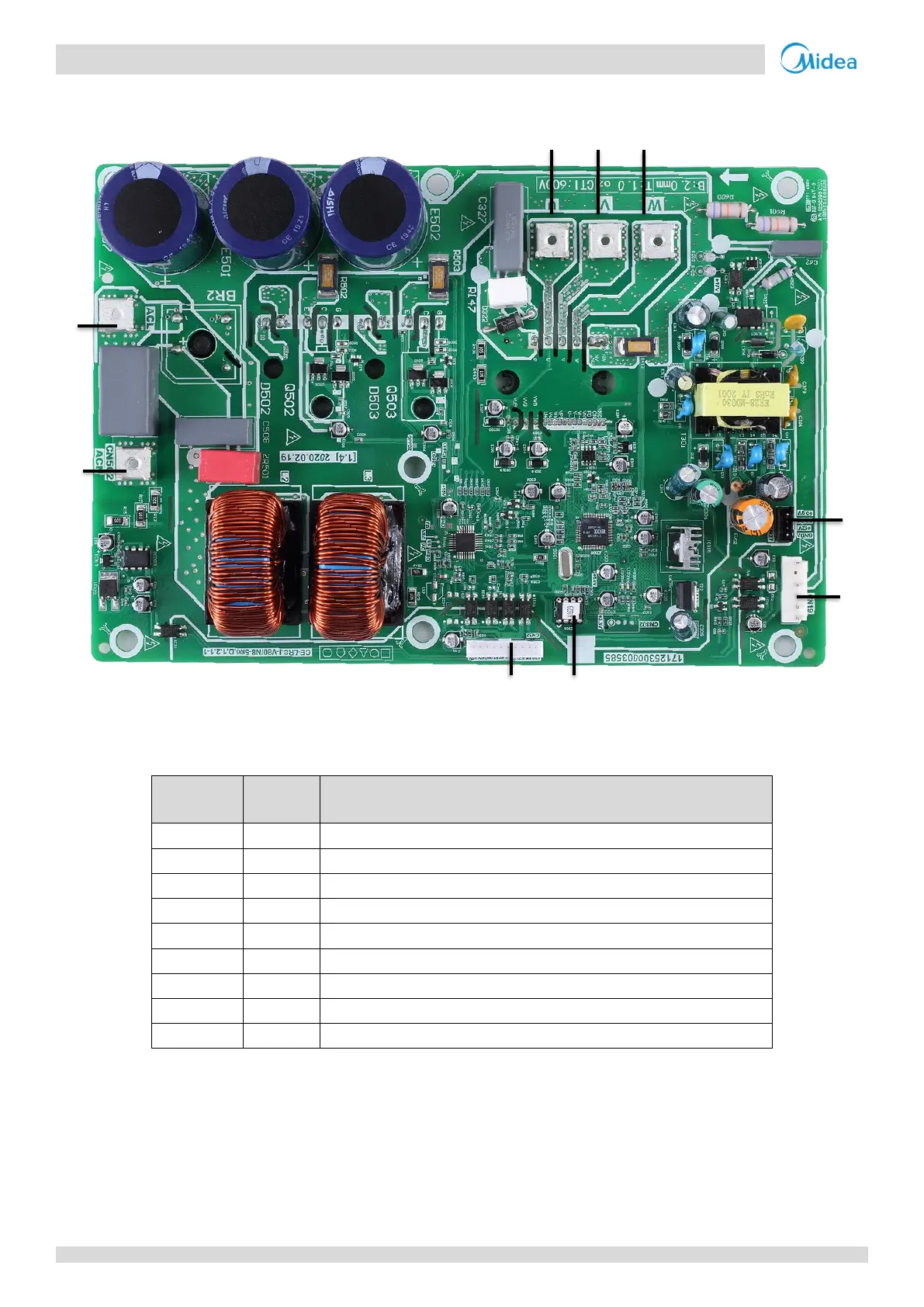

Figure 4-2.3: MHC-V8(10)W/D2N8-B outdoor unit inverter module
1 2 3
8
7
4
5
6 9
Table 4-2.3: MHC-V4(6,8,10)W/D2N8-B outdoor unit inverter module
Label in
Figure 4-2.5
Code
Content
1
U
Compressor connection port U
2
V
Compressor connection port V
3
W
Compressor connection port W
4
CN20
Output port for +12V/5V
5
CN19
Port for fan
6
CN32
Port for communication with FILTER BOARD
7
CN502
Input port L for rectifier bridge
8
CN501
Input port N for rectifier bridge
9
IC320
EEPROM
