Midea DC Fan Coil Unit
34
5. For any question contact your local dealer.
12.7.1 Connect the cable
Dissemble the bolts from the cover.(If there isn't a cover on the outdoor unit, disassemble the bolts from the
maintenance board, and pull it in the direction of the arrow to remove the protection board.)
Connect the connective cables to the terminals as identified with their respective mached numbers on the
terminal block of indoor and outdoor units.
Re-install the cover or the protection board.

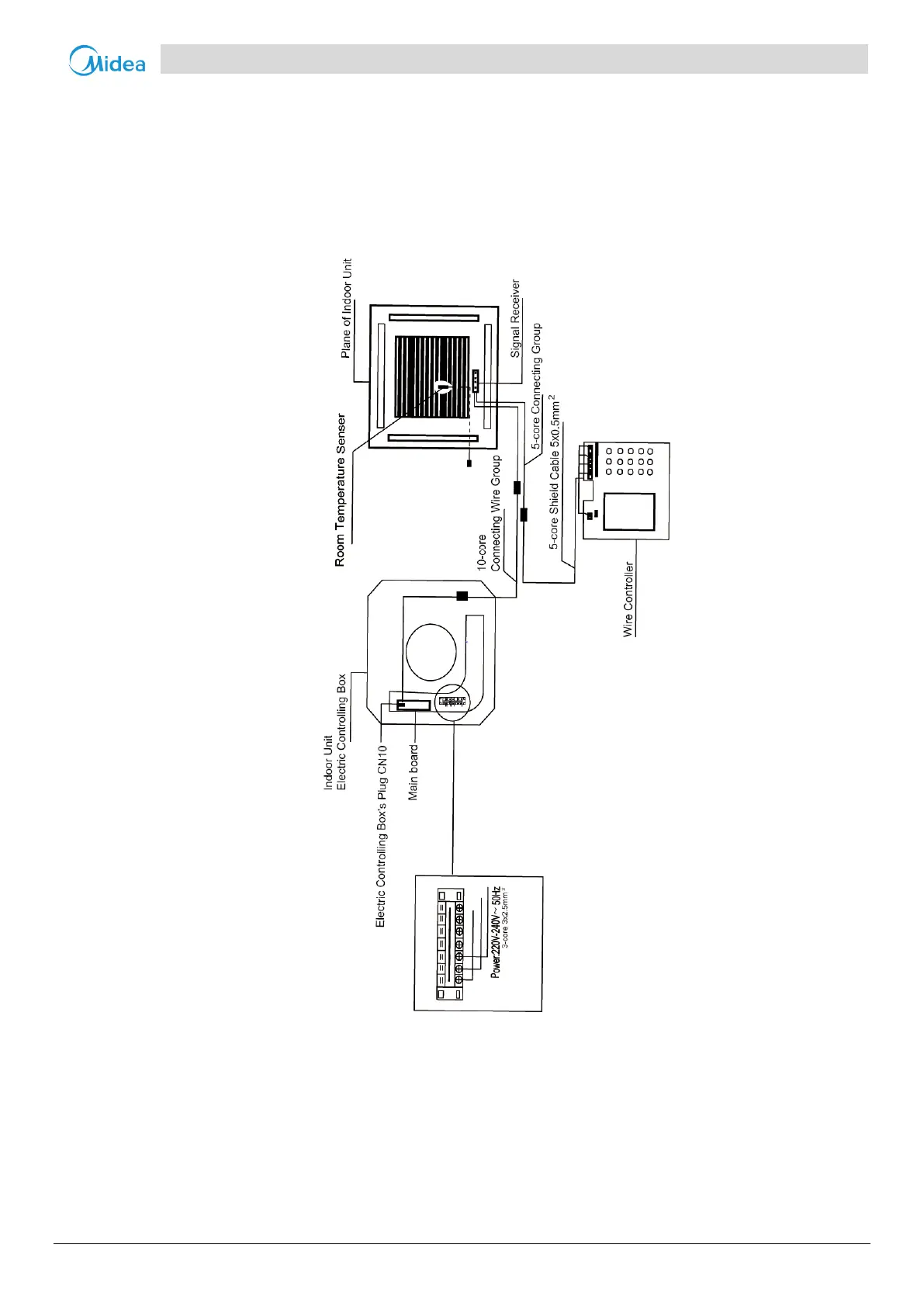

12.7.2 Wiring figure
Note: If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
