Midea Air Handling Unit
- 3 -
MKS 05 W 4 Y / C-H
C: The 3
rd
design series
Pipe Connecting Mode
Y: Right-handed
Z: Left-handed
Coil Rows
4: 4-rows
6: 6-rows
Unit Structure
W: Horizontal
L: Vertical
Air Flow Rate, ×1,000m
3
/h
Midea Air Handling Unit
1.3 Orientation

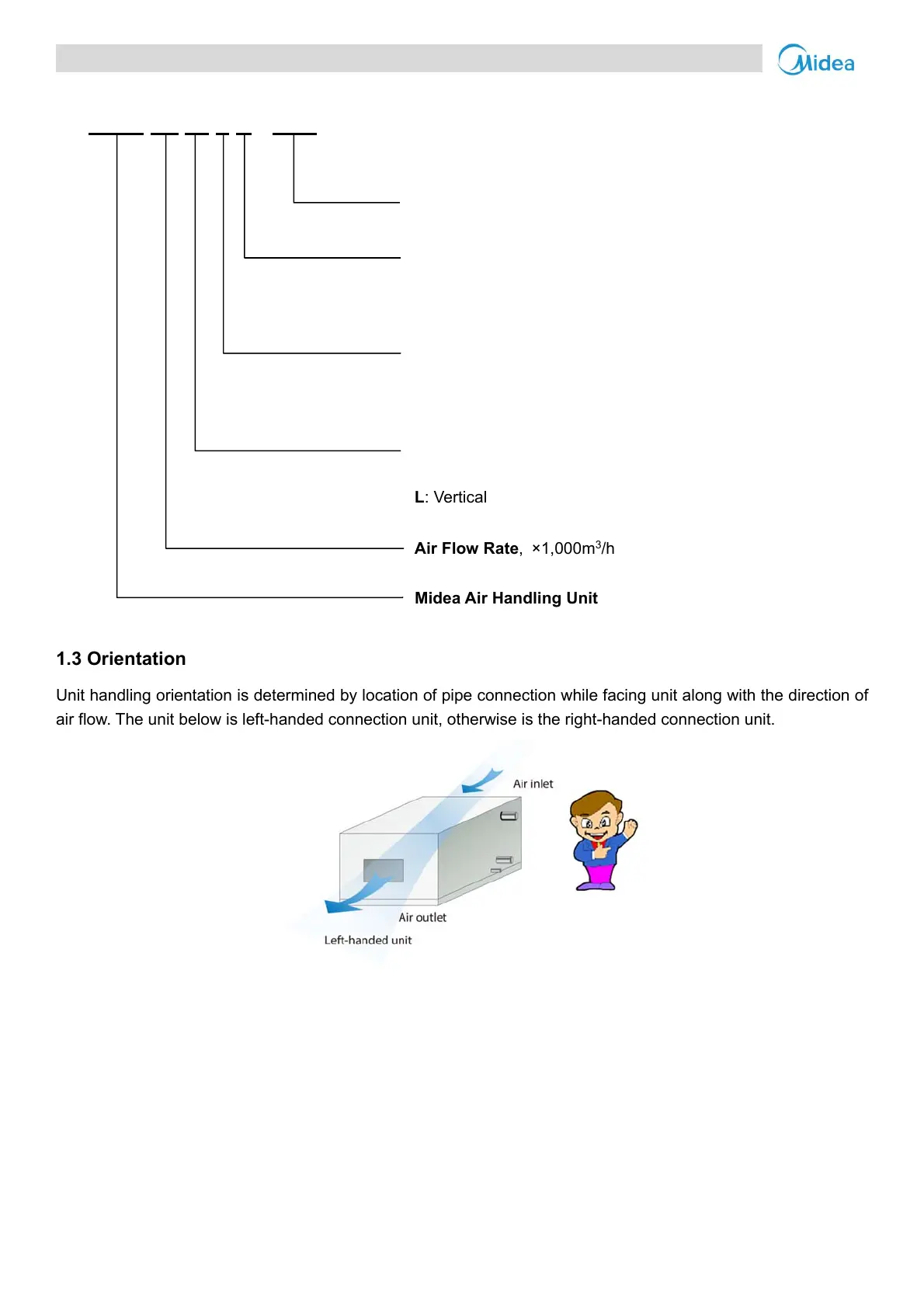

Unit handling orientation is determined by location of pipe connection while facing unit along with the direction of
air flow. The unit below is left-handed connection unit, otherwise is the right-handed connection unit.
1.4 Features
• No Cold Bridge:
All interior metal surfaces are insulated from external metal surfaces by means of polyurethane foam and specially
designed gaskets. The common practice of special insulation used in conventional designs by gluing PE strips to
exposed interior metal surfaces is eliminated. Cold bridge is thus prevented.
• No Air Leakage:
The aluminum frames add strength as well providing an air tight connection through its convex and concave
profiles interlock. The integrated panels are formed with GI sheet steel, insulated with high pressure PU foam to
preventing cold bridge and condensation. Nuts and bolts are used to further enhance the air tightness and rigidity
