High static pressure ducted FCU MCAC-KTSM-2012-
03
26 Installation
12. Installation
12.1 Installation of the fan coil unit
Precautions before installation.
Decide the correct way of conveying the equipment.
Try to transport this equipment with the original package.
If the air conditioner needs to be installed on a metal part of the building, electric insulation must be
performed, and the installation must meet the relevant technical standards of electric devices.
Install F10 pendant bolts (4 bolts)
The intervals of the pendant bolts are shown in the following figure.
Use the F10 pendant bolts.
The treatment of the ceiling varies between buildings. For detailed measures, negotiate with the
construction and fit-out staff.
Scope of dismantling the ceiling…Please keep the ceiling horizontal. Reinforce the beams and girders
of the ceiling lest vibration of the ceiling.
Cut off the beams and girders of the ceiling.
Reinforce the cut-off part, beams and girders of the ceiling.
After the main body is suspended, work on the pipes and wires in the ceiling. Decide the lead-out
direction of the pipes after selecting the installation site. Especially, in a circumstance where a ceiling
is available, extend the refrigerant pipe; drain pipe, indoor/outdoor connection wires and wire
controller lines to the connection position before suspending the unit.

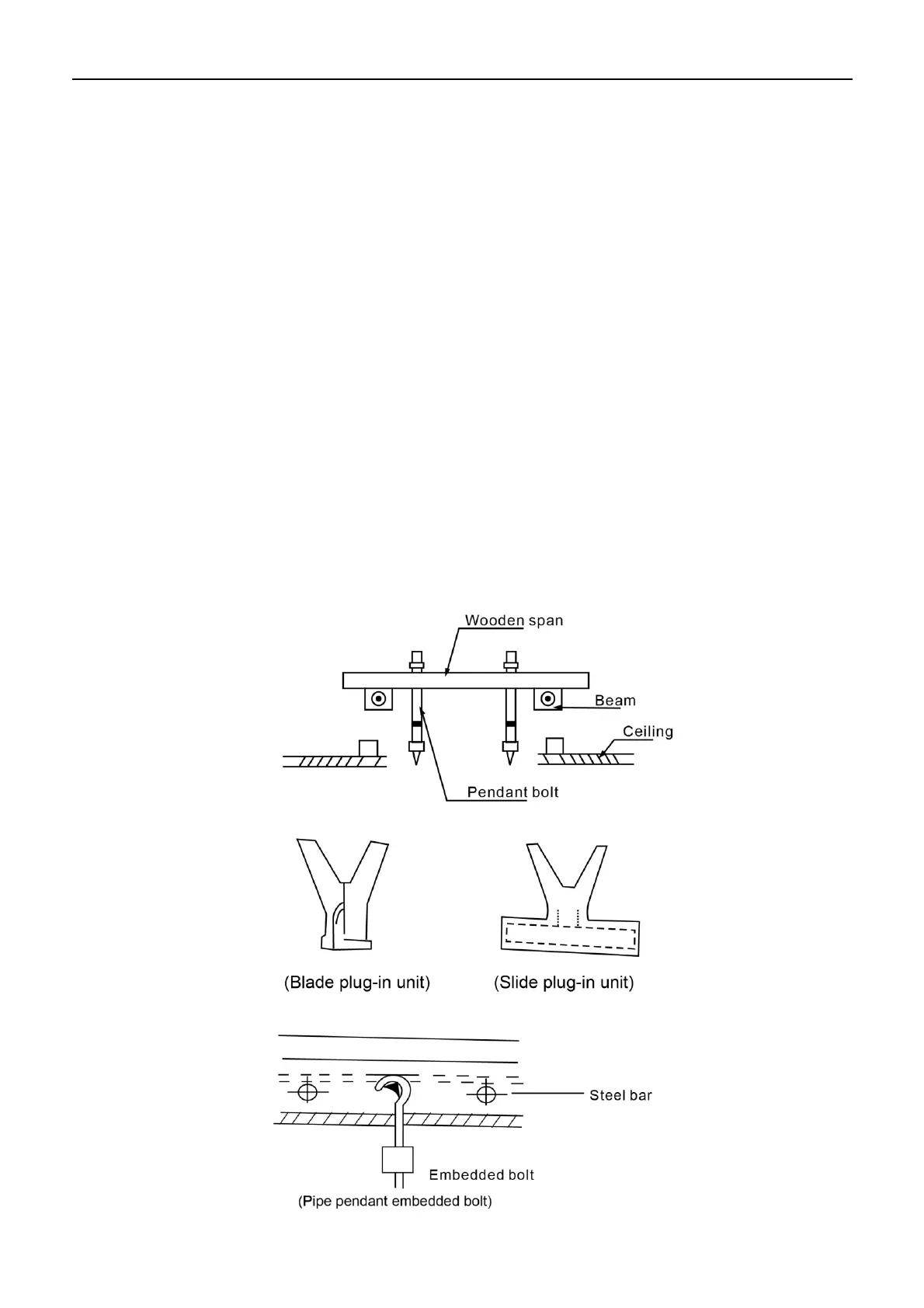

Procedure of installing the pendant bolts.
Wooden structure: Put rectangular sticks across the beams, and set pendant bolts.
New concrete roughcast: Set it with embeded bushes or embedded bolts.
Old concrete roughcast: Use embedded bolts, embedded pulling plugs, and embedded stick harness.
