GAS MODELS ONLY
● Flame sensor resistance < 1Ω
- If resistance is infinity, replace Flame sensor.
● Igniter resistance 40~400 Ω
- If resistance is infinity, replace Igniter.
● Valve1-2: Resistance 1.2KΩ
● Valve1-3: Resistance 0.5KΩ
● Valve4-5: Resistance 1.2KΩ
- If resistance is infinity, replace Valve.
● Thermostat 1 resistance < 1Ω
- If resistance is infinity, replace Thermostat 1.
● Thermostat 2 resistance < 1Ω
- If resistance is infinity, replace Thermostat 2.
10RS
120V
120V 60Hz
25M01A
120V 60Hz

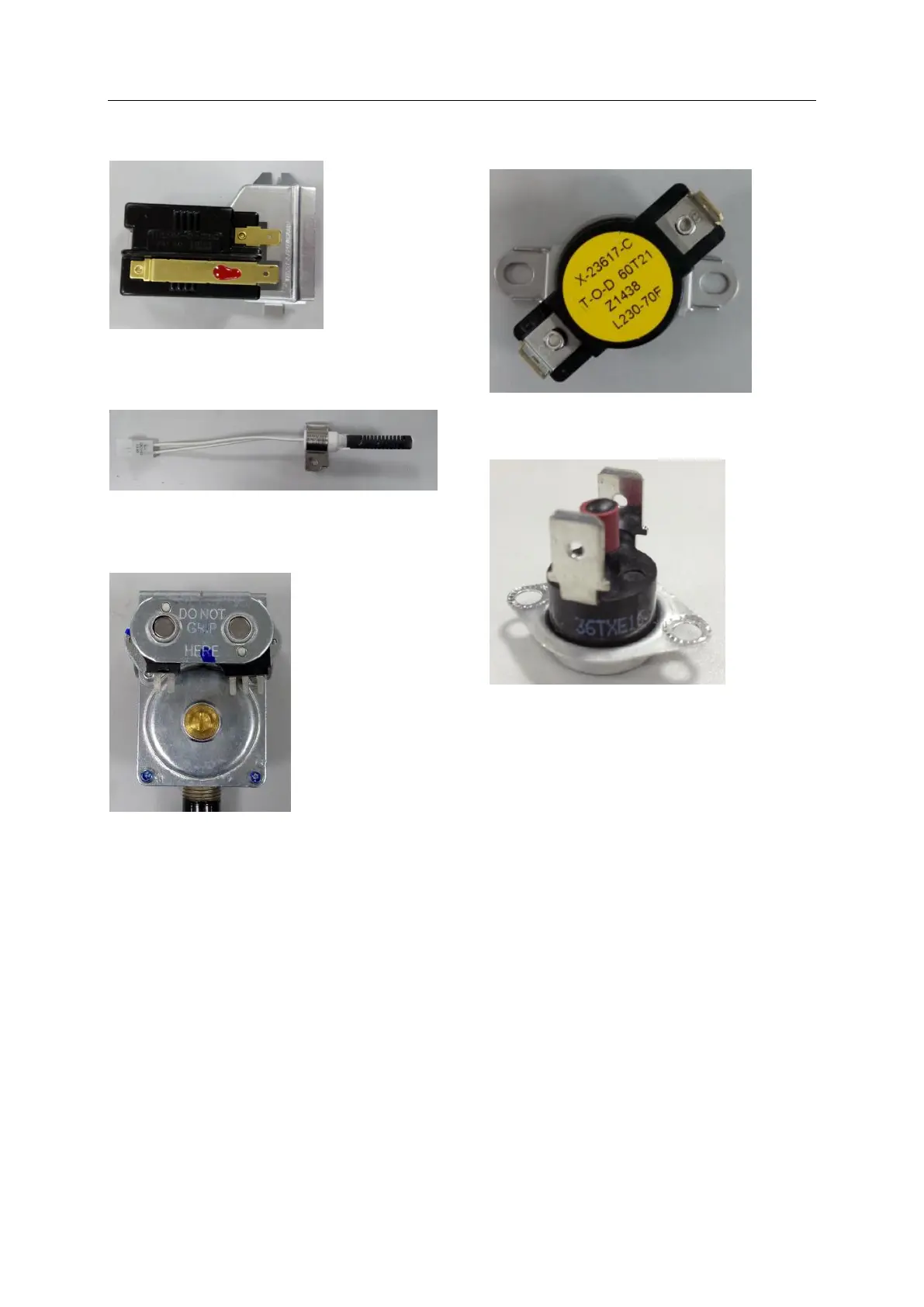

FLAME SENSOR
IGNITER
GAS VALVE
230/160F 25A (60T21)
Hi-Limit
THERMOSTAT 2
175℃, 25A
Thermal cut-off
THERMOSTAT 1
