Page 30

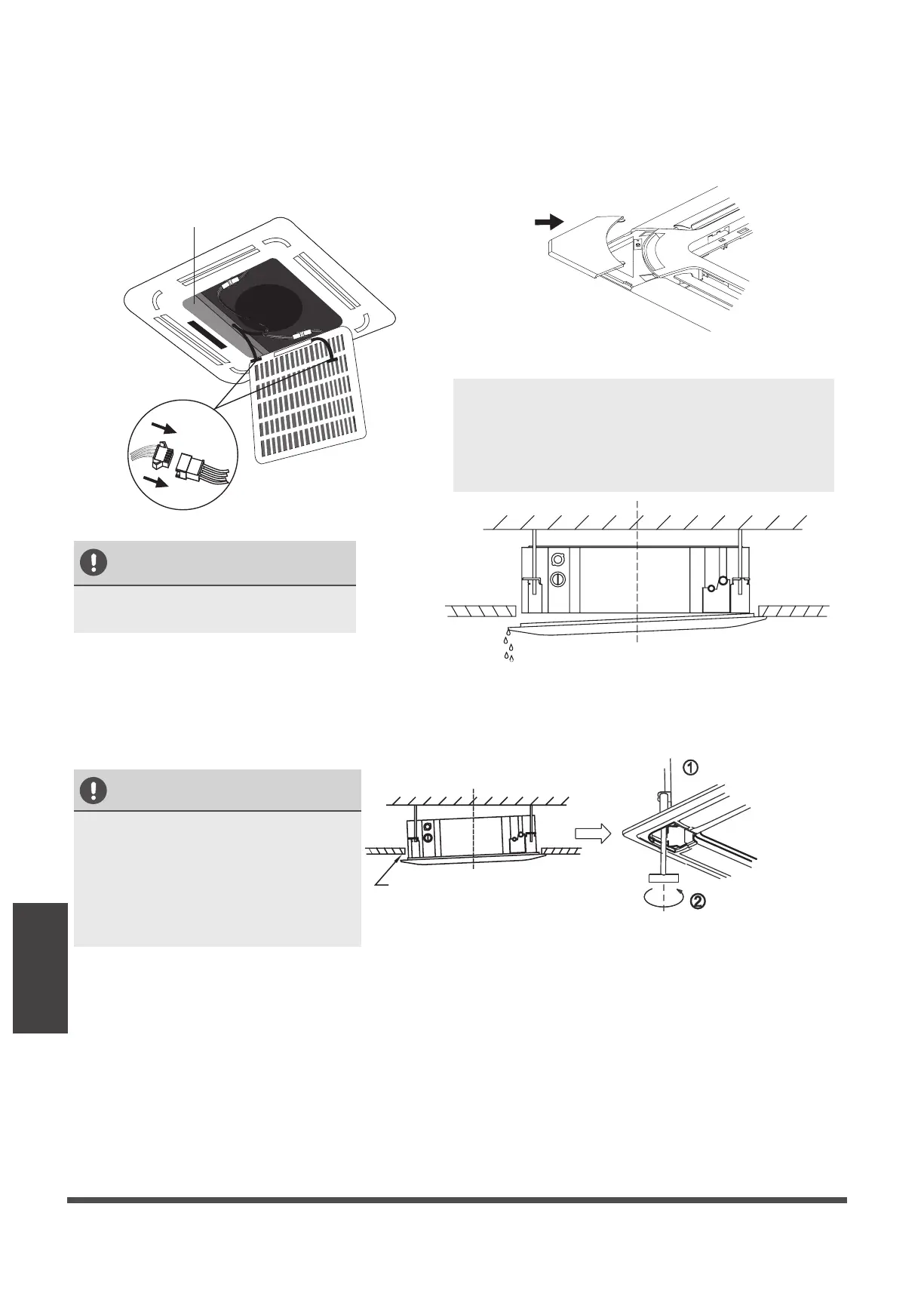

Panel Installation
2. Remove foam stops from inside the fan.
3. Attach the side of the front grille to the
panel.
4. Connect the display panel cable to the
corresponding wire on the main body.
Fig. 10.5
5. Close the front grille.
6. Fasten the installation covers at all four
corners by pushing them inwards.
(See Fig.10.6)
Fig. 10.6
NOTE: If the height of the indoor unit needs to
be adjusted, you can do so through the
openings at the panel’s four corners. Make sure
that the internal wiring and drainpipe are not
aected by this adjustment.
CAUTION
Failure to tighten screws can cause
water leakage.
Water condensation
CAUTION
If the unit is not hung correctly and
a gap exists, the unit’s height must
be adjusted to ensure proper
function. The unit’s height can be
adjusted by loosening the upper nut,
and adjusting the lower nut.
Loosen upper nut
Adjust lower nut
Gap not allowed
Fig. 10.8
Fig. 10.7
