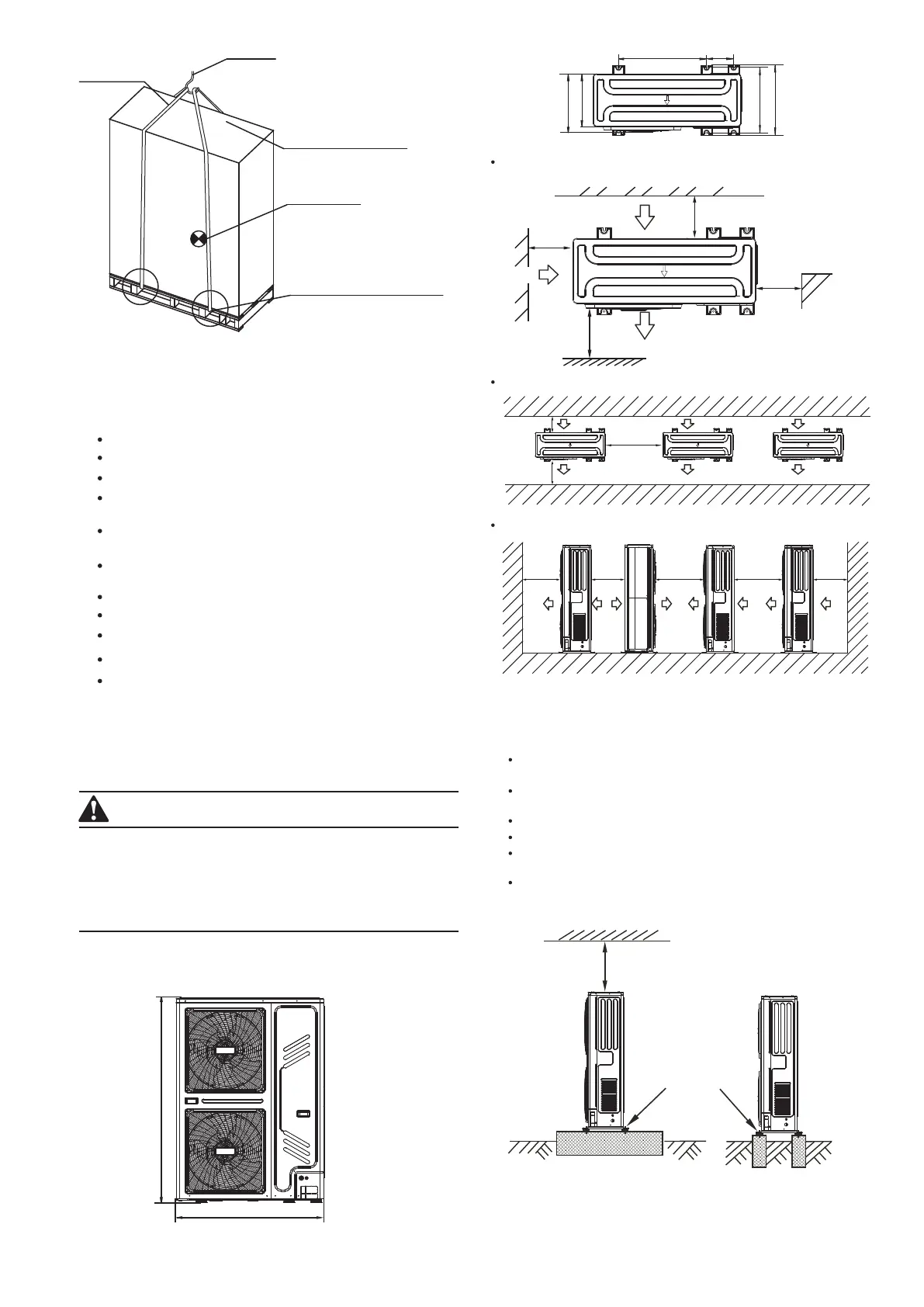

Fig.4-1
Hoisting rope
(belt)
Center of gravity
As shown illustrating the rope must
pass through the inside of the circle
two wooden support stakes, to avoid
rope slip danger in lifting process.
In the lifting process, without
removal of cartons and other
packaging to avoid damage to
the product appearance.
Lifting hook
4.2 Installation place
There is combustible gas leakage.
There is much oil (including engine oil) ingredient.
Please keep away from the following place, or malfunction of the
machine may be caused:
There is salty air surrounding(near the coast)
There is caustic gas (the sulfide, for example) existing in the
air (near a hotspring)
A place the heat air expelled out from the outdoor unit can
reach your neighbor’s window.
A place that the noise interferes your neighbors every day
life.
A place that is too weak to bear the weight of the unit
Uneven place.
Insufficient ventilation place.
Near a private power station or high Frequency equipment.
Install indoor unit, outdoor unit, power cord and connecting
wire at least 1m away from TV set or radio to prevent noise or
picture interference.
Keep indoor unit, outdoor unit, power supply wiring and
transmission wiring at least 1 meter away from televisions
and radios. This is to prevent image interference and
noise in those electrical appliances. (Noise may be
generated depending on the conditions under which the
electric wave is generated, even if 1 meter is kept.)
CAUTION
The insulation of the metal parts of the building and the air
conditioner should comply with the regulation of National Electric
Standard.
4.3 Installation space (Unit:mm)
>300
>600
>
300
>
3000
(Wall or obstacle)
Maintain the electric
wire and pipeline
Air outlet
Air inlet
Air inlet
Fig.4-3
Fig.4-2
Single unit installation
Fig.4-4
Fig.4-5
>3000 >1000
>6000
>4000 >300
>600
>3000
>300
Parallel connect the two units or above
Parallel connect the front with rear sides
668 206
440
400
528
494
1558
1120
4.4 Moving and installation
Since the gravity center of the unit is not at its physical center,
so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from
deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45°, and do not lay it sidelong.
Make concrete foundation according to the sepecifications of
the outdoor units.(refer to Fig.4-6)
Fasten the feet of this unit with bolts firmly to prevent it from
collapsing in case of earthquake or strong wind.
(refer to Fig.4-6)
>600
5
Fig.4-6
Fix with bolt
(Unit:mm)
