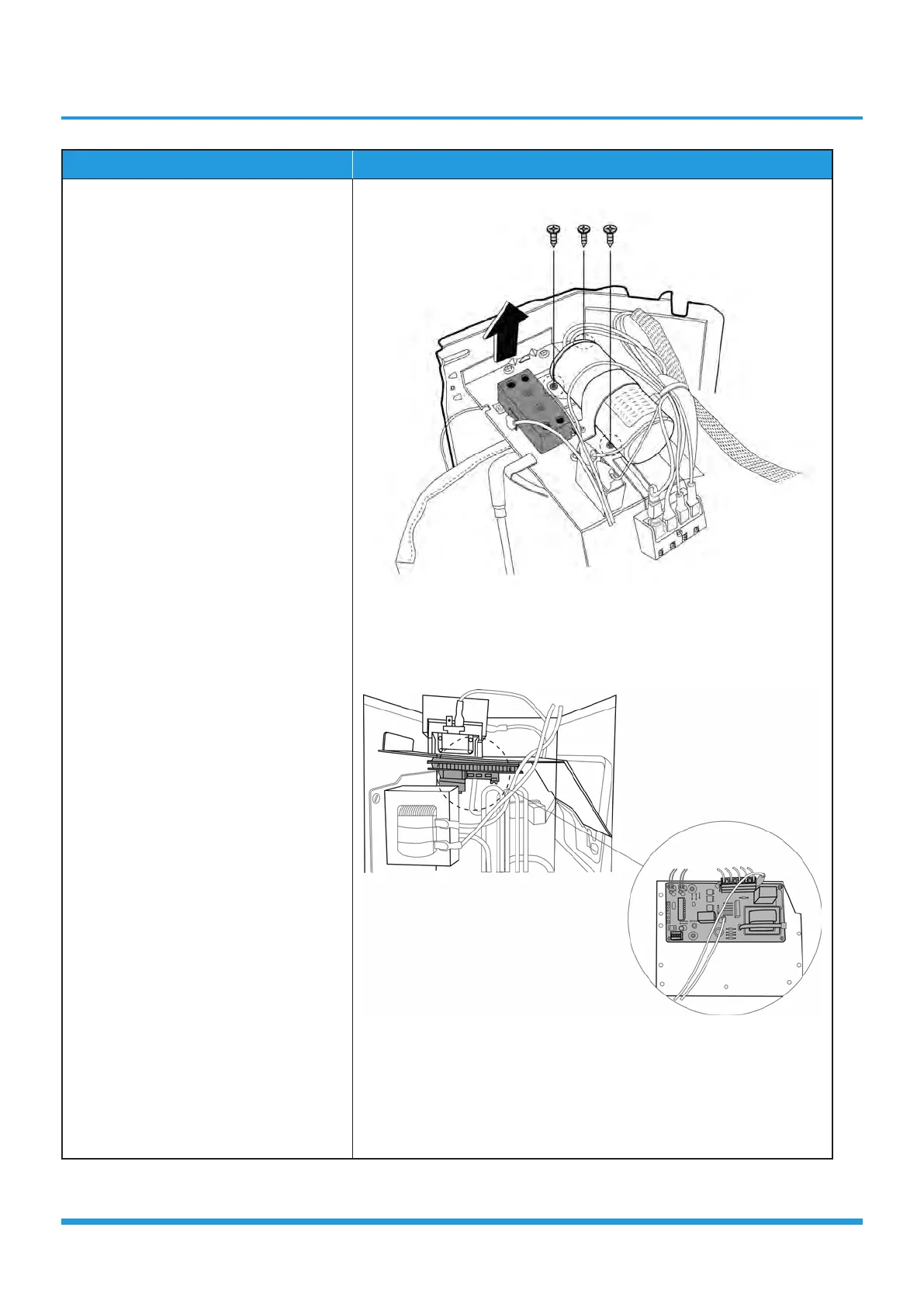

Outdoor Unit Disassembly 34
Procedur
e
Illustration
8)
For models with subzero r
efrigeration
control boar
d
,
remove 3 screws of it
showed in the figure.
9)
The subzero r
efrigeration control
board is in the back of the medal
sheet.
CJ_ODU_PCB_001-03
CJ_ODU_PCB_001-04
Note: This section is for refer
ence only
. Actual unit appearance may vary
.
89
