Installation

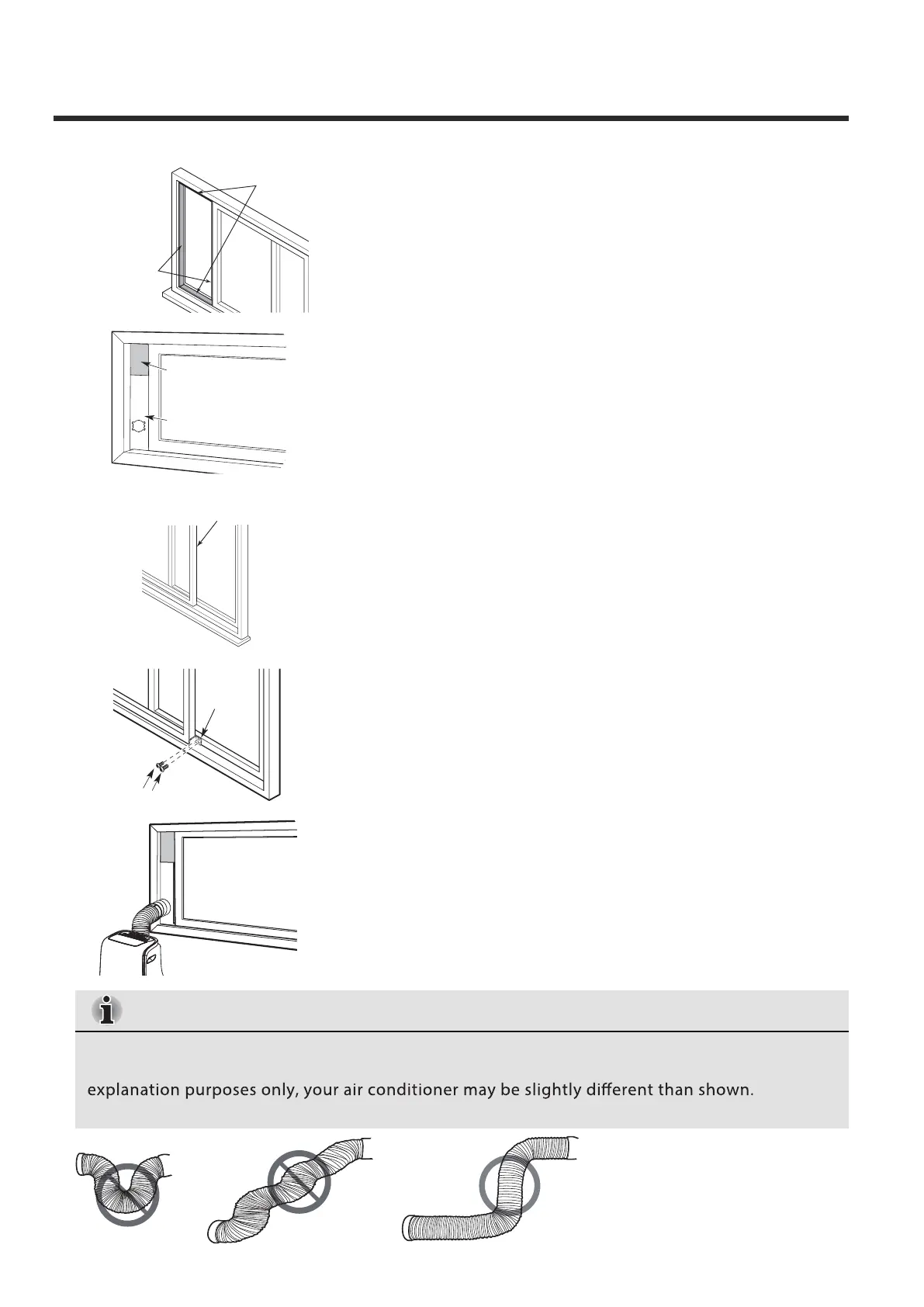

Type 2: Sliding window installation
1. Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive foam seal C strip to match the window
height. Insert the foam seal between the glass and the window
frame to prevent air and insects from getting into the room.
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the window slider adaptor into the hole of the window
slider.
Window slider
Window slider
(if required)
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
Foam seal C
(Non-adhesive type)
2 Screws
Security
Bracket
NOTE
To ensure proper function, DO NOT overextend or bend the hose. Make sure that there are no
objects within 20in (~500mm) of the exhaust hose. All illustrations in this manual are for
10
To Next Page
