Midea MP08DRWBA1RCM User Manual

Installation
Window Installation Kit

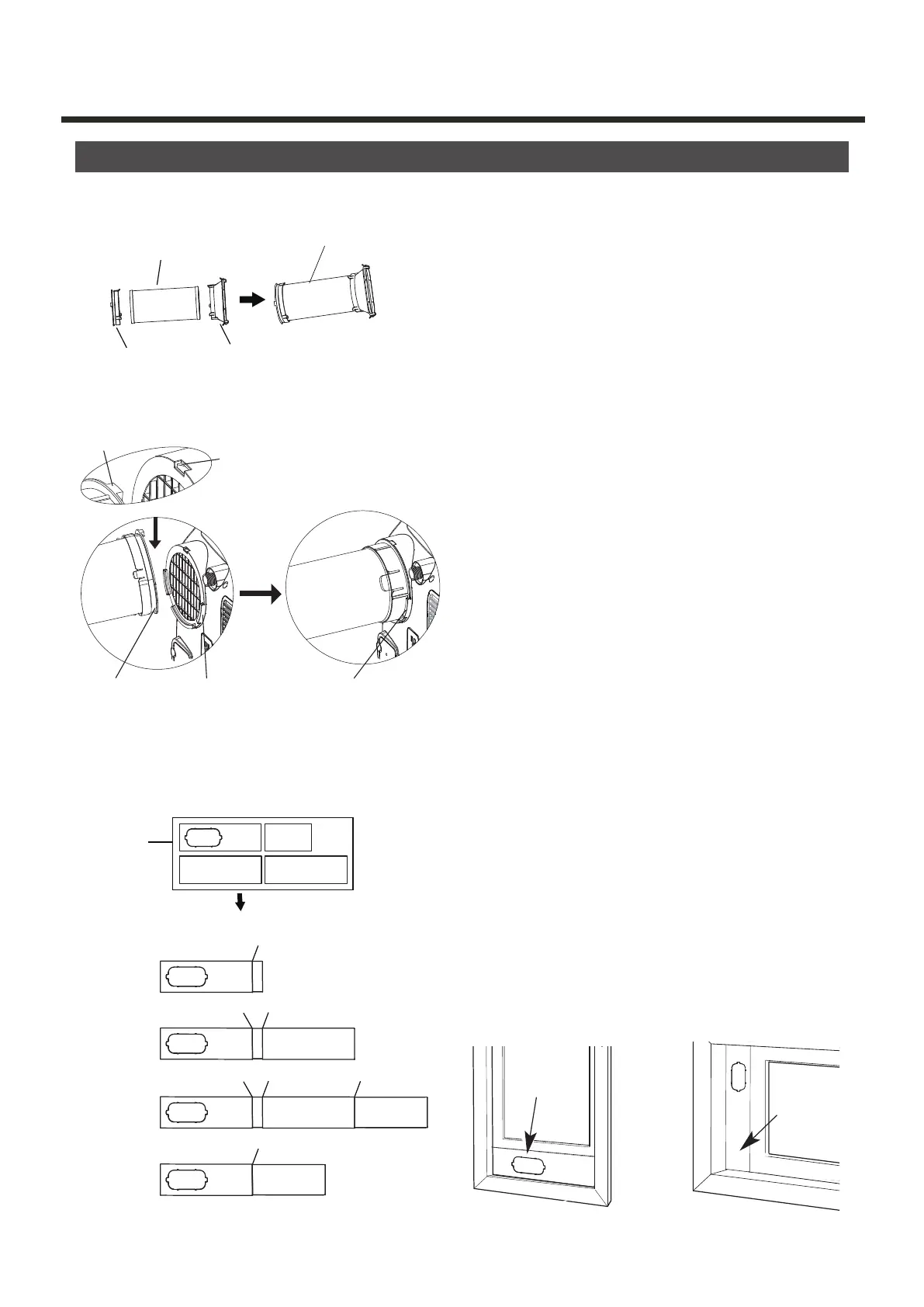

Step One: Preparing the exhaust hose
assembly
Press the exhaust hose into the Air exhaust
passanger and unit adaptor, clamp automatically
by elastic buckles of the adaptors.
Step Two: Install the exhaust hose
assembly to the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the
unit with the hook of the adaptor aligned with
the hole seat of the air outlet and slide down
the Exhaust hose assembly along the direction
indicated by the arrow for installation.
Step Three: Preparing the adjustable
window slider
1. Choose the window sliders according to
the size of your window. Sometimes, sliders
need to be cut short to meet the window
size, please take extra care to cut it properly.
2. Use bolts to fasten the window sliders once
they are adjusted to the proper length.
Hook
Hole Seat
Lower
groove
Adaptor
Make sure the adaptor
is inserted into the
lower groove of the
air outlet.
Hung Window Sliding Window
Windows Type
Window
slider A
Window
slider A
1+2：
Bolt
1+2+3：
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window
Sliders
After assembly
Before assembly
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
