Page 14
Installation
Instructions

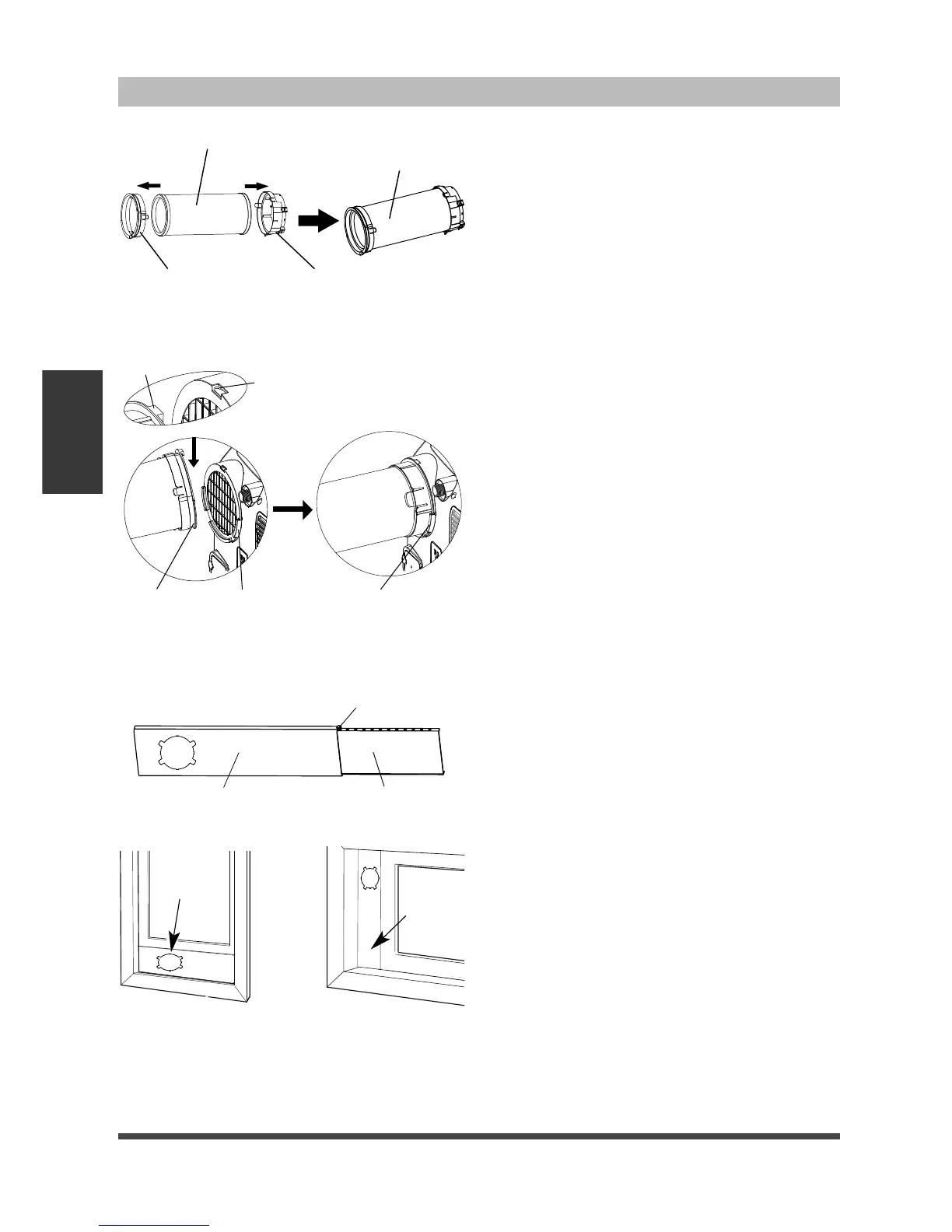

Step One: Preparing the exhaust hose
assembly
Press the exhaust hose into the window
slider adaptor and unit adaptor, clamp
automatically by elastic buckles of the
adaptors.
Step Two: Install the exhaust hose
assembly to the unit
Insert unit adaptor of the Exhaust hose
assembly into the lower groove of the air
outlet of the unit while the hook of the
adaptor is aligned with the hole seat of
the air outlet and slide down the Exhaust
hose assembly along the arrow direction
for installation.
Step Three: Preparing the adjustable
window slider
1. Depending on the size of your window,
adjust the size of the window slider.
2. If the length of the window requires
two window sliders, use the bolt to
fasten the window sliders once they
are adjusted to the proper length.
Window Installation Kit
Unit
adaptor
Window slider
adaptor
Exhaust hose Exhaust hose
assembly
Hook
Hole Seat
Lower
groove
Adaptor
Make sure the adaptor
is inserted into the
lower groove of the
air outlet.
Hung Window Sliding Window
Windows Type
Window slider A Window slider B
Bolt
Window
slider A
Window
slider A
To Next Page
