Page 16
Installation
Instructions

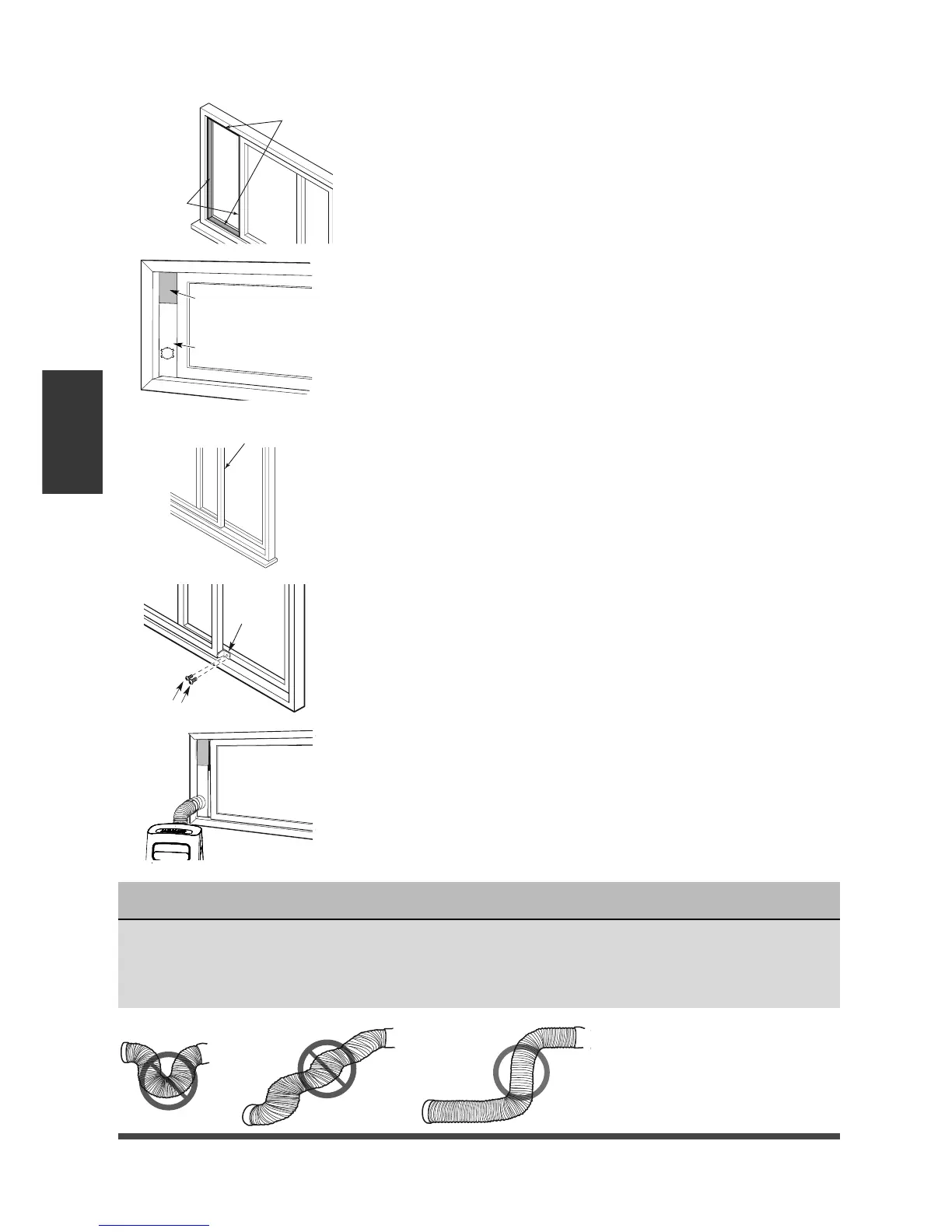

Type 2: Sliding window installation
1. Cut the adhesive foam seal A and B strips to the
proper lengths, and attach them to the window sash
and frame as shown.
Window slider A
Window slider B
(if required)
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
Foam seal C
(Non-adhesive type)
2 Screws
Security
Bracket
2. Insert the window slider assembly into the window
opening.
3. Cut the non-adhesive foam seal C strip to match the
window height. Insert the foam seal between the glass
and the window frame to prevent air and insects from
getting into the room.
4. If desired, install the security bracket with 2 screws
as shown.
5. Insert the window slider adaptor into the hole of the
window slider.
NOTE
To ensure proper function, DO NOT overextend or bend the hose. Make sure that there is
no obstacle around the air outlet of the exhaust hose (in the range of 500mm) in order to
the exhaust system works properly. All the illustrations in this manual are for explanation
purpose only. Your air conditioner may be slightly different. The actual shape shall prevail.
