MCAC-RTT5T-201707 Midea R410A Tropical ClimaCreator Series Rooftop Package 50Hz
108
4. Installation
4.1 For roof top applications using a field fabricated frame and ducts:
The frame must be located and secured by bolting or welding to the roof. Flashing is
required.
The hole in the roof must be prepared in advance of installing the unit.
Secure the ducts to the roof.
Place the unit to the frame or roof curb.
Insulate any ductwork outside of the structure with at least 2 inches of insulation and then
weatherproof. There must be a weatherproof seal where the duct enters the structure.
Complete the installation according to the instructions.

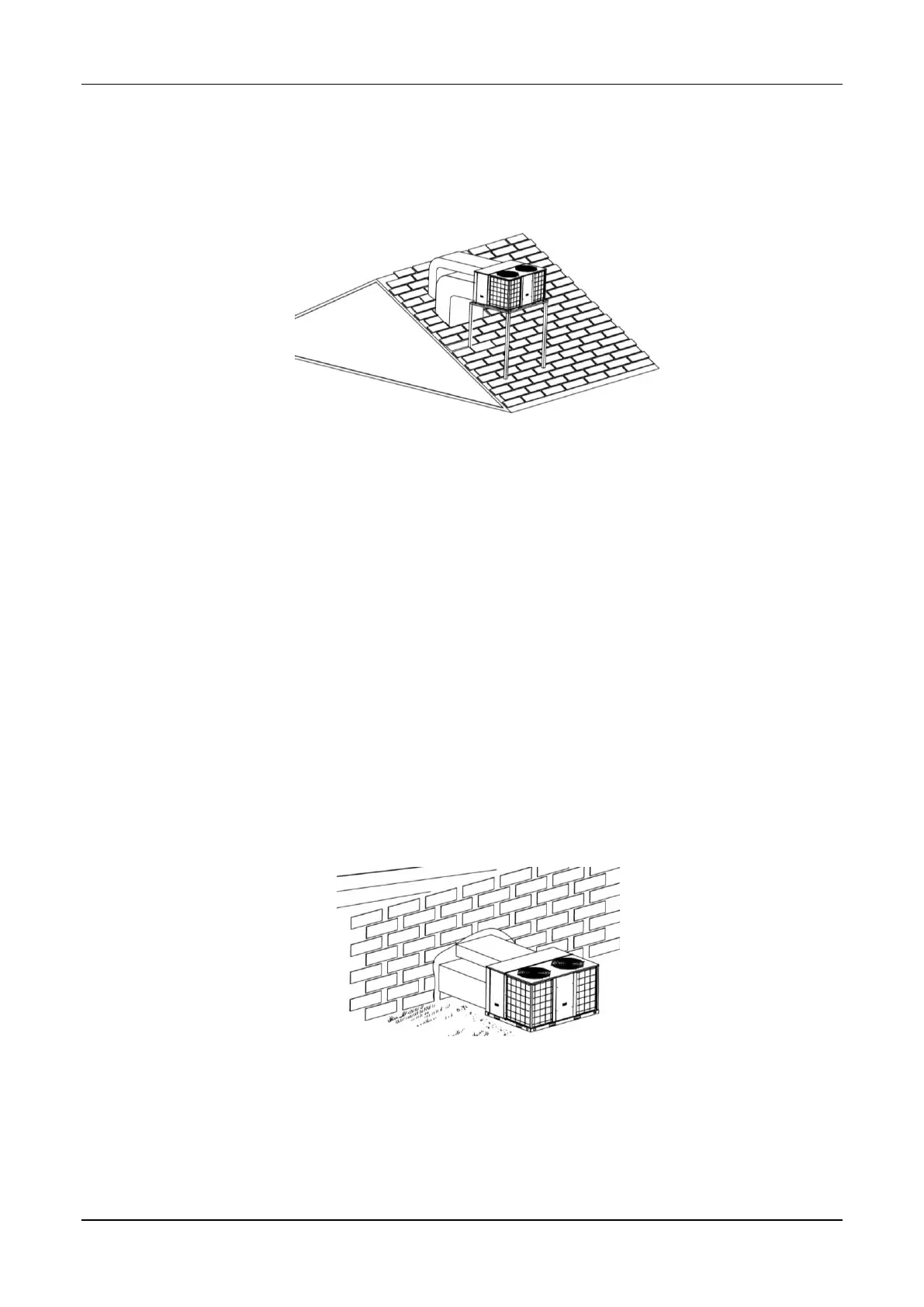

Typical rooftop application with frame.
4.2 For ground level installations:
The unit should be positioned on a pad in the size of the unit or larger. The unit must be
level on the pad. The pad must not come in contact with the structure. Be sure the outdoor
portion of the supply and return air ducts are as short as possible.
Place the unit on the pad.
